D28 3D Welding Table Quick Setup For Batch Welding Production
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
D28 3D welding table
,welding fixture table quick setup
,welding table for batch production

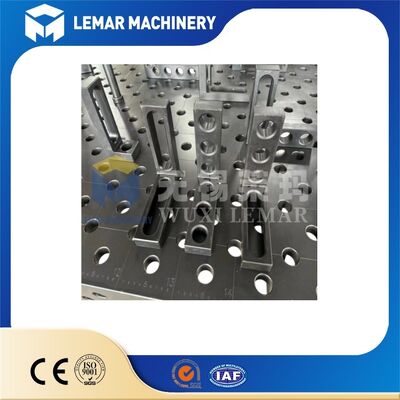

The D28 3D Welding Table Quick Setup for Batch Welding Production is a precision modular fixturing system tailored to repetitive welding manufacturing. Its five-sided working structure adopts the global standard Φ28mm H7 hole grid, supporting flexible arrangement of positioning blocks, braces and clamps. Once a fixturing scheme is validated, it can be restored quickly for subsequent batches to maintain uniform part dimensions. Stress relief treatment and nitride surface deliver stable flatness, strong spatter resistance and long service life for both manual welding and robotic welding lines.
| Item | Specification |
|---|---|
| Place of Origin | CHINA |
| Brand | Wuxi Lemar |
| General Material | Steel / Cast Iron |
| Surface Treatment | Nitriding Process |
| Standard Hole Diameter | D16, D28 |
| Hole Spacing | 50mm, 100mm |
| Hole Diameter Tolerance | ≤0.14mm |
| Welding Table Type | 3D Flexible Welding Table 2D Flexible Welding Table Octagonal Welding Table |
| Available Overall Dimensions | 1000 × 800 × 150mm 1000 × 1000 × 150mm 1200 × 1200 × 150mm 1500 × 1000 × 150mm 1500 × 1500 × 150mm 2000 × 1000 × 150mm 2400 × 1200 × 150mm 2000 × 1000 × 200mm 2400 × 1200 × 200mm 3000 × 1500 × 200mm 1000 × 1000 × 200mm 1200 × 1200 × 200mm 1500 × 1000 × 200mm 1500 × 1500 × 200mm 2000 × 1000 × 200mm 2400 × 1200 × 200mm 3000 × 1500 × 200mm 4000 × 2000 × 200mm |
- Base material: HT300 cast iron or Q355 steel plate; subjected to artificial aging for stress relief to prevent table deformation caused by sustained heat during batch welding.
- Surface: Nitrided finish with high hardness (HV550–900); resistant to weld spatter adhesion and wear, ensuring consistent precision during frequent, long-term fixture changes.
- Standard flatness: ≤0.1mm/1000mm; high-precision robotic-grade versions can achieve ≤0.05mm/1000mm.
- Load capacity: 800–1000kg per support leg; total static load capacity of up to 10 tons.
Universal D28 welding table system, compatible with mainstream international D28 accessories and interchangeable across brands. Categorized by function:
- Positioning & Referencing: Precision right-angle positioning blocks, L-shaped squares, zero-point stops, V-blocks (for round or square tubing), adjustable angle blocks (for positioning at any angle), and coordinate scales (X/Y-axis markings engraved on the table surface for easy point-of-reference recording).
- Clamping & Locking (core component: Rapid Locking Pin)
- Spring-loaded quick-locking pins (manual insertion/removal; designed for 5-minute tooling changeovers — ideal for batch production).
- Bolt-style locking pins (provide high clamping force for long-term, fixed tooling setups).
- Toggle clamps, screw clamps, pneumatic clamps, and hydraulic clamps (for automated production lines).
- Support & Elevation: Adjustable support pins, riser blocks, support towers, extension cantilevers, and side-mounted support arms.
- Auxiliary Equipment: Grounding clamps, protective covers (to shield against weld spatter), lifting eye bolts, anti-spatter guards, and storage racks for locking pins.
Q: What is your MOQ?
A: MOQ is 1 set. We accept single table orders and bulk project orders.
Q: What trade terms can you offer?
A: EXW, FOB, CIF, CFR, DAP and DDP are available.
Q: What payment methods do you accept?
A: T/T (Telegraphic Transfer). 30% deposit before production, balance before shipment. L/C is negotiable for large orders.
Q: Do you accept OEM or custom specifications?
A: Yes, custom size, height, flatness grade and nitriding hardness are available.
Q: Can you send samples or make pre-production photos before shipment?
A: We can provide production photos and loading photos before shipment. Physical sample of full table is not available, but small accessory samples can be arranged.
Ready to cut your jig cost and shorten fixture setup time? The D28 3D Welding Table Quick Setup for Batch Welding Production helps you achieve stable, repeatable batch welding. Drop your inquiry now — our engineering team will reply promptly with detailed specifications and competitive pricing.
