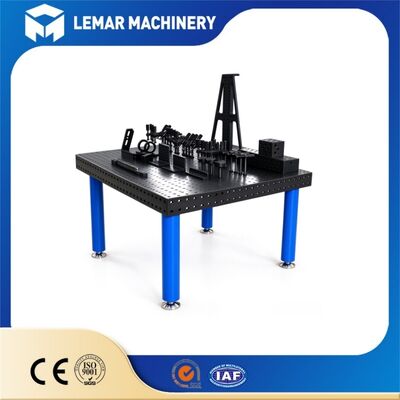

Precise 3D Welding Table D16 for Small Metal Assembly Work
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
D16 3D welding table
,welding fixture table small assembly
,precise metal welding table
Our Precise 3D Welding Table D16 is designed for delicate and compact metal assembly and light welding tasks. It adopts the standard D16 modular hole system with a dense grid layout to deliver accurate positioning for small metal parts. The tabletop goes through full stress relief treatment and fine precision milling to secure stable flatness for repeated small-batch assembly.
Operators can quickly install and reposition matched D16 clamps, stops and angle supports to lock miniature workpieces in place. It cuts down tedious marking and manual measurement work, making it an ideal compact datum platform for workshops focusing on small metal component assembly and light fabrication.
| Parameter | Specification |
|---|---|
| Grid System | D16 – 16mm holes on 50mm centers |
| Hole Tolerance | H7 (16.000 ~ 16.018mm) |
| Positioning Accuracy | ±0.05mm repeatability |
| Tabletop Material | HT300 cast iron / Q355 Steel |
| Tabletop Thickness | 60mm |
| Surface Treatment | Nitrided (HV ≥ 600) |
| Flatness Tolerance | ±0.1mm per m² |
| Static Load Capacity | 3,000 kg |
| Standard Sizes | 1000×750, 1200×800, 1500×1000mm |
| Working Height | 820mm (custom available) |
-
Dense Grid for Tiny Workpiece Positioning
The closely spaced D16 hole grid offers abundant reference points. It supports precise clamping and alignment of small metal profiles and miniature assemblies that cannot be fixed properly on larger hole tables.
-
Compact Footprint for Limited Workshop Space
The D16 table takes up much less floor area. It can be placed in small workshops, lab stations or dedicated assembly corners without occupying space needed for heavy production equipment.
-
Lightweight Structure for Flexible Arrangement
Compared with heavy D28 models, this D16 table is easier to move and rearrange. Your team can adjust the workstation layout freely to match shifting small-batch production schedules.
-
Smooth Nitrided Surface for Easy Cleaning
The hardened nitrided layer resists light spatter, oxidation and minor scratches. Residues from small welding jobs can be wiped away rapidly to keep positioning holes clean and accurate.
-
Quick Setup for Frequent Product Switching
Modular D16 accessories lock into the grid in seconds. You can switch between different small metal assembly projects rapidly without building dedicated custom jigs.
-
Fine Leveling Control for High-Tolerance Assembly
Every support leg is fitted with sensitive leveling feet. Minor height adjustments help maintain perfect horizontal status when assembling thin or easily deformed small metal parts.
This Precise 3D Welding Table D16 is well suited for small metal assembly work. It is widely used for thin sheet metal frame assembly, hardware bracket welding, prototype making, instrument support fabrication, hobby metal craft production and small mechanical component assembly. It fits small fabrication shops, research labs, technical training centers and custom metal workshops that focus on delicate light metal work.
D16 features 16 mm holes with denser grid spacing. It targets small, delicate metal assembly, while D28 is built for heavy loads and large structural work.
Yes. The dense positioning points hold thin sheet parts firmly and reduce shifting and warping during light welding and assembly operations.
Yes. Our D16 tables support side-by-side connection if you need a larger continuous working area for combined small assemblies.
The base quotation only includes the table main body. Clamps, positioning blocks and other fixtures are optional extras and are quoted separately.
Custom dimensions are available. Send your target workpiece size and space limit, and we will prepare a drawing and quotation accordingly.
If you are searching for a compact, high-precision platform to boost your small metal assembly efficiency, tell us your workpiece sizes and workflow requirements. Our team will share a practical fixture layout plan and a competitive quotation for your workshop. We are ready to support your delicate metal fabrication projects.
