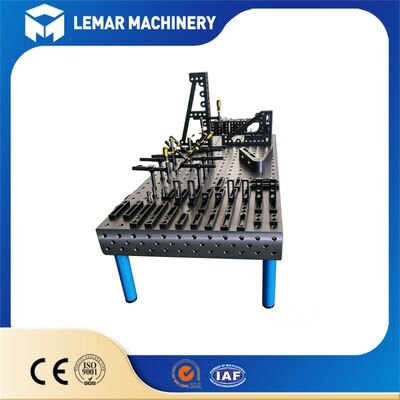

Accurate 3D Welding Table D28 for Steel Structure Welding
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
D28 3D welding table
,steel structure welding table
,welding fixture table D28
Our Accurate 3D Welding Table D28 is purpose-built for high-precision steel structure welding jobs. Built around the universal D28 perforated grid system, this 3D modular work platform delivers repeatable positioning for steel beams, brackets, frames and heavy structural assemblies.
Every tabletop undergoes annealing stress relief and multi-axis precision milling to lock in stable flatness under cyclic welding heat and heavy static load. Operators can deploy modular stops, angle clamps and support blocks freely across the grid to fixture irregular steel structural parts without time-consuming custom jig making. It acts as a reliable fixed datum reference to keep dimensional consistency across batches of steel structure fabrications.
The precise hole grid creates a unified reference plane. All structural parts can be positioned against fixed datum points, reducing measuring errors during steel structure layout and assembly.
Stress relief processing removes internal material stress before machining and surface treatment. The table stays stable even with continuous welding heat input from thick steel components.
Mix and match D28 clamps, positioning brackets and supports freely. One table handles varied steel structure shapes including L brackets, box frames and beam assemblies.
The nitrided surface layer boosts surface hardness and wear resistance. Welding spatter can be cleared easily without scratching the positioning holes or distorting the reference plane.
Each support leg comes with fine-tuning leveling feet. You can calibrate the table level precisely on uneven factory floors to prevent workpiece shifting during heavy steel welding.
All standard D28 modular accessories work with this table. You can add more fixtures or extend the working area later as your steel structure product range expands.
This Accurate 3D Welding Table D28 fits steel structure fabrication workshops perfectly. It is widely used for steel frame assembly, bracket welding, beam component tacking, machinery base fabrication, building steel part production and heavy metal structural assembly. It serves fabricators working on construction steel parts, equipment support frames and custom heavy steel assemblies.
Yes. This table follows the global standard D28 hole specification. Most standard D28 clamps, locking pins and support blocks can be directly installed without further adaptation.
Load capacity depends on table size and supporting leg configuration. Our standard model supports heavy static load for regular metal fabricating work. Please tell us your workpiece weight so we can give exact reference data.
Nitriding treatment is our standard option to improve wear resistance. A non-nitrided version is also available if clients have special cost considerations. We will explain the performance difference for your reference.
We adopt stress relief treatment before finishing machining to minimize internal material stress. Correct operating method and proper supporting installation will help maintain table flatness for years.
Absolutely. Custom length, width and special local modifications are acceptable. You may provide drawings or describe your workpiece dimensions for our technical evaluation and quotation.
If you need a high-accuracy modular work platform to stabilize your steel structure welding quality, share your workpiece dimensions and load demands with us. Our technical team will tailor a fixture layout plan and competitive quotation for your workshop. We look forward to supporting your structural fabrication projects.
