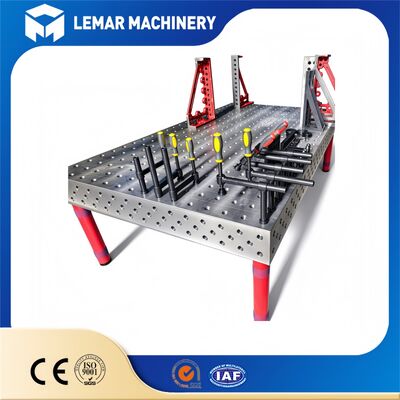

3D Welding Table D28 for Structural Steel Assembly Tasks
| MOQ: | 1 |
| Price: | 500USD-1000USD |
| Standard Packaging: | 4000mm*2000mm*200mm |
| Delivery Period: | 10-20 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
3D welding table D28
,welding fixture table structural steel
,D28 welding table assembly tasks
This 3D Welding Table D28 is engineered to streamline the assembly and fabrication of structural steel components. Featuring a standardized D28 modular hole grid with 100 mm spacing, it supports multi-directional positioning for steel beams, column connections, gusset plates and complex steel joints. The nitrided tabletop retains its geometric precision under cyclic welding heat and repeated clamping operations. Its reinforced understructure minimizes deflection when heavy steel sections are placed and secured. Fabricators can rearrange locators, angle brackets and quick clamps freely, eliminating the need for fixed custom jigs and shortening preparation time for mixed structural steel orders.
| Item | Specification |
|---|---|
| Model | 3D Welding Table D28 |
| Table Material | High strength Q355 steel |
| Hole Diameter | 28 mm |
| Hole Spacing | 100 mm standard pitch |
| Surface Treatment | Nitrided anti-wear surface optional |
| Custom Size | Support custom length, width and height |
| Max Load Capacity | Up to 5000 kg per square meter |
| Application | Welding positioning, assembly and inspection |
- Three-dimensional positioning capability supports angular and horizontal alignment, making it simple to square up steel connections and control tolerances for load-bearing structural assemblies.
- Nitrided surface layer reduces spatter adhesion and abrasion damage, protecting hole integrity and table flatness during high-frequency structural steel production.
- Heavy-duty reinforcing ribs under the tabletop disperse concentrated weight and thermal stress, effectively lowering the risk of permanent deformation during long welding cycles.
- Modular splicing design allows multiple individual tables to be connected via locking pins, creating extended working surfaces for large trusses and long steel girders.
- Broad compatibility with D28 standard fixtures lets workshops reuse clamps and stops across different structural jobs, cutting extra fixture procurement costs.
- Optional adjustable feet and casters adapt to uneven workshop floors and support flexible station relocation between layout, fitting and welding zones.
This D28 3D welding table fits structural steel workshops engaged in building frame assembly, roof truss fabrication, platform bracket welding, industrial equipment base production, guardrail steel assembly and prefabricated steel node processing. It works equally well for bespoke one-off architectural steelwork and continuous batch fabrication projects.
It bears up to 10 tonnes of evenly distributed load. Avoid localized point overload. For extra long heavy beams, splice multiple tables for balanced support.
Our D28 grid follows widely accepted industry standards and can match most international D28 clamps, positioning blocks and locking pins.
Adjustable support feet are available as an optional add-on to adapt the working height for operators and specific component sizes.
Clear welding spatter from the surface and holes after each shift. Do not strike the tabletop directly with sledgehammers to preserve precision.
Standard models can be shipped within 15 to 20 working days once deposit is confirmed. Custom combined spliced platforms require separate lead time confirmation.
Yes. We can combine the welding table with different grades of D28 accessory kits and provide itemized pricing for your selection.
If you are searching for a precise and durable 3D welding platform to boost the consistency and productivity of your structural steel assembly work, share your workpiece sizes and order needs with us. Our sales team will prepare a personalized quotation including table options and matching fixture packages. We are ready to support your structural steel fabrication business.
