Welding Table D28 for Robotic Welding Cell Positioning Operation
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
D28 welding table robotic cell
,3D welding table positioning operation
,welding table robotic welding cell

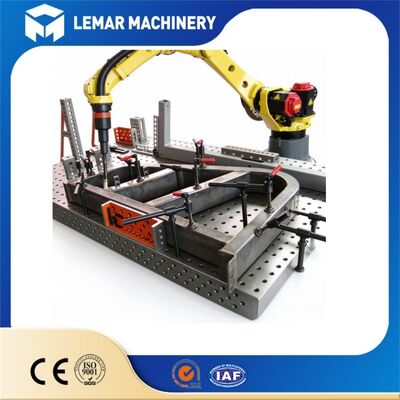

Our Welding Table D28 is a modular fixturing platform tailored for robotic welding stations. Featuring the standardized D28 hole pattern, it acts as a reliable fixed datum for robot programming and repetitive automated welding cycles. The tabletop is manufactured with full stress relief and a nitriding finish to resist thermal stress and welding debris in round-the-clock automation. It supports rapid fixture changeover, helping robotic cells switch between different part families without time-consuming recalibration. Rigid construction minimizes vibration that could compromise weld quality in high-speed robotic operation.
| Parameter | Specification |
|---|---|
| Grid System | D28 — 28mm holes on 100mm centers |
| Hole Tolerance | H7 precision |
| Tabletop Material | HT300 gray cast iron / Q355 steel |
| Tabletop Thickness | 100mm |
| Surface Treatment | Nitrided (HV ≥ 600) |
| Flatness Tolerance | ±0.1mm per m² |
| Static Load Capacity | 5,000 kg per table |
| Standard Sizes | 1500×1000, 2000×1000, 3000×1500mm |
| Leg Height | 850mm (custom heights available) |
| Leg Construction | 80×80mm square tube, 5mm wall |
| Leveling Feet | M24 threaded, 50mm pad |
| System | Material | Size (mm) | Weight (kg) |
|---|---|---|---|
| D28/D16 | HT300 cast iron / Q355 steel | 1000×1000×200/150 | 300 |
| D28/D16 | HT300 cast iron / Q355 steel | 1000×2000×200/150 | 520 |
| D28/D16 | HT300 cast iron / Q355 steel | 1200×1200×200/150 | 400 |
| D28/D16 | HT300 cast iron / Q355 steel | 1200×2400×200/150 | 800 |
| D28/D16 | HT300 cast iron / Q355 steel | 1500×1000×200/150 | 420 |
| D28/D16 | HT300 cast iron / Q355 steel | 1500×1500×200/150 | 600 |
| D28/D16 | HT300 cast iron / Q355 steel | 1500×2000×200/150 | 800 |
| D28/D16 | HT300 cast iron / Q355 steel | 1500×3000×200/150 | 1150 |
| D28/D16 | HT300 cast iron / Q355 steel | 2000×3000×200/150 | 1500 |
| D28/D16 | HT300 cast iron / Q355 steel | 2000×4000×200/150 | 2100 |
- Dual-scenario compatible design works perfectly for manual welding stations and robotic welding production lines, enabling flexible production arrangements.
- Reinforced integral structure delivers strong load capacity and outstanding anti-deformation performance, maintaining stable shape under long-term continuous welding work.
- Plasma nitrided tabletop resists high-temperature spatter, friction, and oxidation. It reduces daily wear, lowers maintenance frequency, and extends service life.
- Strictly controlled flatness provides reliable repeat positioning accuracy, effectively cutting welding dimensional deviation and improving finished product qualification rate.
- Universal D28 modular hole system supports quick fixture rearrangement. It saves costs on customized jigs and greatly shortens workpiece setup time.
- Customizable dimensions and auxiliary configurations are available. We can adjust platform specifications to match different workshop layouts and production demands.
This D28 flexible 3D welding position table is widely applied in multiple industrial scenarios. It fits metal structure welding workshops, mechanical equipment assembling, auto parts processing, engineering machinery fabrication, hardware product manufacturing, and custom fixture building. It works well for batch production and small-batch prototype welding tasks, serving factories, processing workshops, and engineering production sites.
- Mechanical structural component welding: Fixture assembly for heavy machinery frames, brackets, and base parts.
- Automotive metal fabrication: Welding and positioning of vehicle chassis, structural supports, and body assemblies.
- Pipeline and cylindrical part processing: Precise locating for pipes, flanges, and circular pressure component welding.
- Frame and cabinet manufacturing: Assembly of equipment frames, metal housings, and rectangular structural frameworks.
- Special-shaped workpiece production: Multi-angle positioning for irregular, radial, and multi-directional metal components.
- Automated robotic welding lines: Stable tooling platform matched with robot systems for continuous batch production.
- Custom metal prototype fabrication: Fast reconfigurable tooling for trial production and small-batch customized projects.
We can add anchor holes according to your foundation drawing upon request. The standard version does not include anchor holes.
We recommend a flatness inspection after major fixture replacement, or if you notice obvious inconsistency in weld results.
Yes. It follows international D28 modular standards and works with most mainstream D28 fixture components.
The nitrided surface and stress-relieved structure are designed for continuous shift work under normal operating conditions.
Our workshop can mark reference lines based on your provided robot coordinate requirements.
Please share the maximum workpiece size, robot reach range, and footprint limit of your welding cell.
Send your robotic cell layout drawing and workpiece information to our engineers. We will configure a suitable positioning solution and offer you a competitive bulk price.
