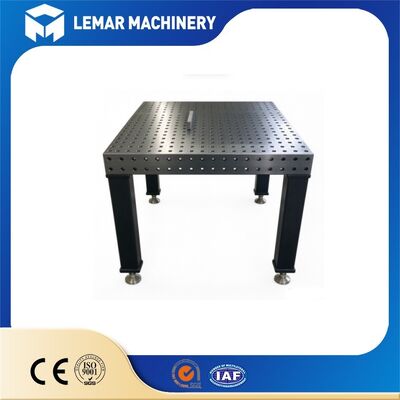

D16 Modular Clamping Welding Table Suitable For Small Automotive Parts
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T |
| Supply Capacity: | 500 units/month |
D16 modular clamping welding table
,welding fixture table for small parts
,modular welding table automotive parts
The D16 Modular Clamping Welding Table Suitable For Small Automotive Parts is a compact, flexible welding fixture system tailored to small automotive metal components. Its 50mm grid and Φ16 H7 precision holes deliver reliable repeat positioning for brackets, seat parts and lightweight EV subassemblies. Compatible with the complete D16 modular clamping kit, it supports quick setup and part switching. Choose nitrided steel or cast iron construction for consistent flatness — ideal for manual weld stations and robotic welding cells producing automotive small parts.
| Table Size (L × W) | Table Type | Grid Pitch | Hole Tolerance | Working Height |
|---|---|---|---|---|
| 1000 × 800 | 2D / 3D | 50 × 50mm | H7 | 820mm |
| 1200 × 800 | 2D / 3D | 50 × 50mm | H7 | 820mm |
| 1200 × 1000 | 2D / 3D | 50 × 50mm | H7 | 820mm |
| 1500 × 1000 | 2D / 3D | 50 × 50mm | H7 | 820mm |
| 2000 × 1000 | 2D / 3D | 50 × 50mm | H7 | 820mm |
| 2000 × 1200 | 2D / 3D | 50 × 50mm | H7 | 820mm |
| 2500 × 1200 | 2D / 3D | 50 × 50mm | H7 | 820mm |
| 3000 × 1500 | 2D / 3D | 50 × 50mm | H7 | 820mm |
| 4000 × 2000 | 2D / 3D | 50 × 50mm | H7 | 820mm |
- Dense 50mm Grid Precision System — The Φ16 H7 hole pattern offers dense datum points for complex small auto parts, ensuring stable and repeatable clamping.
- Highly Modular, Quick Fixture Swap — A universal D16 interface fits all clamps and pins, drastically cutting fixture cost and changeover time.
- Anti-Spatter Nitrided or Stable Cast Iron Top — Two material choices to suit manual welding or long-run robotic welding scenarios.
- 2D / 3D Optional Configurations — Single-sided or five-sided holed table to meet multi-angle fixturing needs.
- Wide Size Range, Splicing Supported — Available from 1000×800mm to 4000×2000mm; large sizes can be precisely spliced.
All D16 modular clamping welding tables are packed with export-grade protection for overseas sea and air shipment. Separate packaging for tabletop, support legs and modular accessories avoids collision, scratching and deformation during long transit. Every package is marked with shipping marks, dimensions and gross weight for easy customs clearance and handling.
A: Yes. Non-standard custom dimensions are acceptable according to your automotive fixture project.
A: We offer EXW, FOB, CIF, CFR, DAP and DDP. Please send us your destination port or delivery address, and we will quote the suitable freight cost accordingly.
A: Custom shipping marks, customer logo and part numbers on export crates are free of charge. Just provide your mark instruction before packing.
A: You are warmly welcome to visit our workshop. If an offline visit is not available, we can arrange a live video inspection during production or before packing.
A: We provide online technical guidance for fixture layout, assembly and maintenance. Spare locking pins and wearing parts can be supplied at factory cost.
Inquire about the D16 Modular Clamping Welding Table Suitable For Small Automotive Parts. Get your customized quotation and layout suggestion now.
