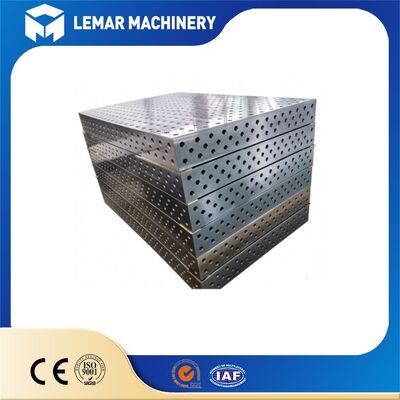

CE Certified D28 Welding Fixture Table For Robotic Welding Workstation
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
CE Certified D28 Welding Fixture Table
,D28 Welding Fixture Table for Robotic Welding
,Robotic Welding Workstation Fixture Table
Designed exclusively for automated production, the CE Certified D28 Welding Fixture Table for Robotic Welding Workstations solves the core pain points of robotic welding cells: poor positioning repeatability, thermal deformation, and slow fixture changeover. Manufactured from high-grade S355JR steel with artificial stress relief and controlled nitriding treatment, this 3D flexible fixture base holds a tight flatness tolerance for long-run robot welding. The universal D28 hole system works with worldwide standard clamps, stops, and locating pins. As a CE-certified component with full technical construction files, it helps system integrators streamline the entire workstation CE assessment for European projects.
| Item | Specification |
|---|---|
| Standard Overall Size (L × W) | 1000×800 / 1200×1200 / 1500×1000 / 2000×1000 / 2400×1200 / 3000×1500 / 4000×2000 |
| Custom Size | Available up to 4000×2000; multi-table splicing supported |
| Table Top Thickness | 23 mm / 25 mm (standard); thicker plate optional |
| Hole System | D28, Φ28 H7 precision bore |
| Grid Pitch | 100 mm × 100 mm standard; 50 mm dense grid optional |
| Machined Surfaces | 5-sided machined (top + four sides, 3D version) |
| Material | S355JR (S355 steel); HT300 cast iron / 42CrMo alloy steel optional |
| Heat Treatment | Artificial stress relieved before nitriding |
| Surface Treatment | Gas nitriding, HV550–900 |
We offer customization services for our welding tables:
- Tabletop modifications: integrated cable channels and dust extraction ports (for connection to fume purification systems).
- Precision positioning: embedded locating pin bushings and zero-point clamping systems (enabling rapid, high-frequency setup changes for robotic applications).
- Custom dimensions: extra-long, extra-wide, or non-standard, complex shapes.
- Material upgrades: available in HT300 cast iron or 42CrMo die steel, offering superior stability and minimal thermal deformation.
- Specialized features: threaded holes, counterbored holes, engraved markings, and laser-etched reference scales.
- Accessories: matching support bases, protective covers, and spatter collection trays.
- In-house Full Production — We are the direct manufacturer of D28 modular welding fixture tables. All processes, including plate cutting, CNC boring, stress relief, nitriding, and inspection, are completed in our factory, with strict control over precision, surface hardness, and flatness.
- CE Document Package Ready for EU Integrators — Beyond CE marking, we supply the complete DoC, TCF technical files, signed measurement protocol, and material certificates to support your robotic workstation CE audit.
- Robot-Oriented Precision Control — We specialize in fixture bases for robotic welding cells: stable flatness after artificial stress relief, tight H7 hole tolerance, and low thermal deformation under continuous robot welding cycles.
- Fully Interchangeable D28 System — Standard Φ28 H7 hole grid, compatible with global mainstream D28 clamping accessories. Quick fixture reconfiguration and multi-table splicing for large workpieces.
- Flexible Customization — Standard sizes in stock. Custom dimensions, HT300 cast iron / 42CrMo steel upgrade, 50 mm dense grid, zero-point locating inserts, and special milling features are available.
- Export-Focused Service & On-Time Shipment — Extensive experience serving robotic system integrators worldwide. Standard items with short lead time. IPPC fumigated wooden packaging for smooth EU customs clearance.
- One-Stop Fixture Supply — Matching D28 locking pins, stops, supports, and clamping kits can be delivered together with the table to save your separate sourcing cost.
A: T/T (wire transfer) is our main term: 30% deposit upon PI confirmation, 70% balance before shipment. L/C is negotiable for large orders.
A: The tabletop is protected with anti-rust film and hole protectors are installed. It is then packed into a fumigated plywood or solid wooden crate. Fixture accessories are packed separately inside cartons.
A: Sea freight to Europe takes around 25–40 days. Air freight is available for urgent small orders. We will advise the estimated transit time before booking.
A: 12 months warranty against manufacturing defects. The warranty does NOT cover damage from overload, impact, improper operation, welding burn, or worn consumable accessories.
A: Please take photos and videos of the damaged packages and products immediately upon receiving. File a claim with the carrier and send us the evidence. We will support you with claim settlement and a replacement plan.
Send us your inquiry today to get a quotation and technical proposal for the CE Certified D28 Welding Fixture Table for Robotic Welding Workstations.
