Welding Table D28 For Custom Steel Frame Welding Projects
| MOQ: | 1 |
| Price: | 500USD-1000USD |
| Standard Packaging: | 4000mm*2000mm*200mm |
| Delivery Period: | 10-20 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
D28 welding table
,steel frame welding table
,welding fixture table

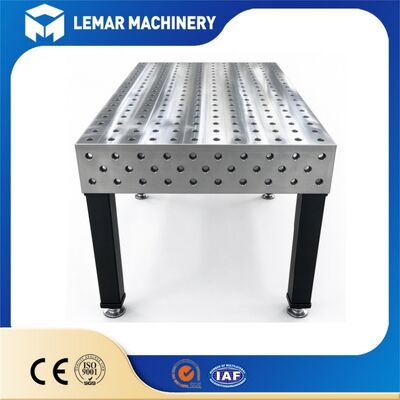

The D28 modular welding table is purpose built for custom steel frame fabrication projects. Featuring the standard 28mm hole grid system, this heavy duty workbench delivers flexible fixture mounting across multiple faces. Crafted from solid structural steel and treated with nitriding, it resists weld spatter scratches and surface abrasion.
Fabricators can rapidly configure stops, clamps and angle supports to hold irregular steel frame profiles. Its rigid construction locks in dimensional accuracy during tack welding and full seam welding. Whether for one-off custom frames or small batch steel structure builds, this table cuts jig making time and improves the consistency of finished steel frames.
| Item | Specification |
|---|---|
| Model | Welding Table D28 |
| Table Material | Q355 steel |
| Hole Diameter | 28 mm |
| Hole Spacing | 100 mm standard pitch |
| Surface Treatment | Nitrided anti-wear surface (optional) |
| Custom Size | Custom length, width and height supported |
| Max Load Capacity | Up to 5000 kg per square meter |
| Application | Welding, positioning, assembly and inspection |
- Multi-face hole layout allows clamping on the top and four side planes to secure complex, multi-angle steel frame profiles.
- Nitrided surface layer withstands repeated weld spatter and scraping, reducing surface damage during frequent frame welding work.
- Universal D28 hole pattern works seamlessly with standard modular clamps and positioning blocks for fast jig reconfiguration.
- Precision machined table surface maintains tight flatness to avoid frame distortion and assembly gaps during welding.
- Reinforced welded frame structure eliminates sagging when holding large, heavy steel frame assemblies through long welding cycles.
- Adjustable leveling feet compensate for uneven workshop floors to keep the table stable during frame alignment and welding.
This D28 welding table excels at custom steel frame welding projects. It serves manufacturers working on machine base frames, gate and railing frames, equipment support frames, trailer chassis frames, furniture steel frames and agricultural machinery frame assemblies. It is ideal for custom metal workshops, job shops and small production facilities that regularly build non-standard steel frame structures.
Yes. The table follows standard D28 hole specifications. Your current D28 clamps, pins and brackets can be mounted directly on the table surface.
Standard sizes ship within 15 working days. Custom dimensions require around 20 to 25 working days based on your drawing requirements.
No complex maintenance is required. Simply clear welding spatter and debris regularly to protect hole accuracy and extend service life.
The static load capacity reaches 2.5 tons per square meter. Do not apply concentrated impact loads beyond the rated limit.
Absolutely. Special connecting accessories are available to join several tables together for extra large workpieces.
If you need further details about table configurations, accessory bundles, payment terms or freight options, send your inquiry today. Our technical team will assess your custom steel frame welding needs and provide a detailed quotation. Reach out to discuss your project and get your D28 welding table solution ready.
