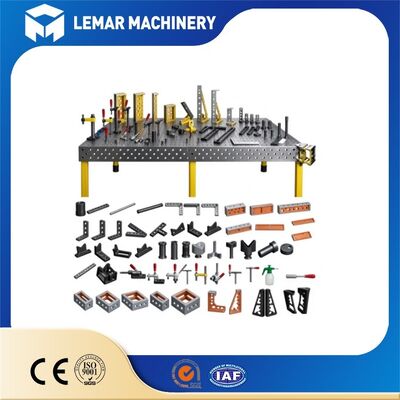

D28 Fixture Table with Clamps for Precision Welding Layout
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T |
| Supply Capacity: | 500 units/month |
D28 welding fixture table
,precision welding layout table
,fixture table with clamps
Meet our D28 Fixture Table with Clamps for Precision Welding Layout — a heavy-duty modular fixturing system engineered to streamline precision welding layout, workpiece positioning and assembly. Adopting the widely recognized D28 standard hole system with Φ28 H7 locating holes at 100 mm grid spacing, this welding table package includes a comprehensive set of modular clamps, angle stops, locating pins and support blocks. The tabletop undergoes stress relief, precision CNC machining and nitriding treatment to guarantee excellent flatness, high hardness and great resistance against weld spatter adhesion. The 3D five-sided machined variant enables clamping from the top and all four vertical sides, supporting complex frame fabrication. Multiple tables can be securely joined to accommodate oversized workpieces. Whether for manual precision welding or robotic welding cells, this D28 fixture table eliminates repeated custom jig fabrication, shortens setup time and minimizes welding deformation to keep your fabrication quality stable and repeatable.
| Bore diameter | Φ28 H7 (Φ28.065–28.149 mm) |
|---|---|
| Hole center-to-center distance | 100 ± 0.05 mm |
| Flatness | ≤ 0.02 mm |
| Side perpendicularity | 0.1 mm / 200 mm |
| Grid scale | 100 mm grid scale on the tabletop for convenient direct layout and measurement |
| Load capacity | Standard static load capacity of 900–1000 kg per leg, with a total tabletop static capacity of 3–5 tons; heavy-duty frame models can support up to 10 tons |
All accessories are fully compatible with D28 hole-system welding tables, allowing for flexible combinations and rapid fixture assembly. The standard D28 hole pattern ensures compatibility with major international brands from Europe and the US.
- Tabletop flatness inspection (laser level or granite straightedge + dial indicator).
- Spot checks on hole center-to-center distance tolerances and H7 hole diameters.
- Side perpendicularity (3D welding table).
- Spot checks on nitrided layer hardness and case depth.
- Static load-bearing test for the support structure.
- Visual inspection: free from cracks, blowholes and sand holes; deburring of hole edges.
- Issuance of an inspection report; CE conformity documentation available upon request.
In addition to precision welding layouts, this fixture table can also be used for:
- Workpiece inspection fixtures and dimensional checking jigs
- Assembly, riveting and bolted joint alignment
- Prototyping and R&D model fabrication
- Base reference platforms for robotic welding stations
- Grinding, marking out and template layout
Should you have any questions about our D28 Fixture Table with Clamps for Precision Welding Layout, such as specifications, lead time or package options, don't hesitate to reach out.
We look forward to your inquiry and supporting your welding projects.
