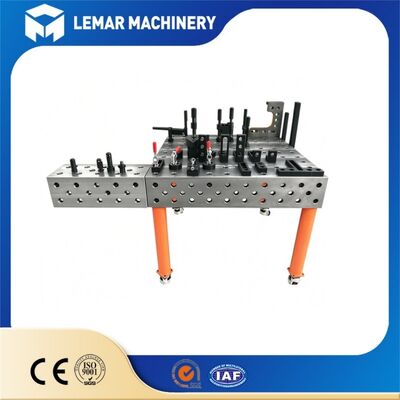

D28 Flexible Welding Table for Metal Workpiece Welding Setup
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
D28 flexible welding table
,welding fixture table for metal
,metal workpiece welding setup table
Our D28 flexible welding table serves as a multi-purpose modular base for metal workpiece positioning and welding assembly. Built with a standardized D28 hole grid system, this platform allows quick assembly and repositioning of all matched locating blocks, toggle clamps, and spiral tighteners.
The tabletop adopts precision machining and nitriding treatment to retain reliable flatness and strong abrasion resistance against welding spatter and repeated clamping pressure. It removes the limitation of dedicated single-use jigs, letting operators adapt fixture layouts for various metal parts efficiently. This flexible work platform greatly streamlines preparation work for custom and small-batch welding tasks in metal fabrication workshops.
| Feature | D16 Standard Table | D28 Industrial Grade Table |
|---|---|---|
| Hole Diameter | 16mm | 28mm |
| Grid Pitch | 50mm | 100mm |
| Best For | General fabrication, small parts, precision jig work | Heavy structural work, large beams, heavy clamping |
| Holding Power | Good for medium workpieces | Extreme — locks down tons of steel |
| Pin / Clamp Size | Standard 16mm fixturing | Heavy-duty 28mm industrial fixturing |
| Typical Load | 2000–5000kg | 3000–6000kg+ |
| Ideal Industry | Job shops, automotive, small manufacturing | Structural steel, heavy equipment, shipbuilding |
| System | Material | Size (mm) | Weight (kg) |
|---|---|---|---|
| D28/D16 | cast iron / Q345 steel | 1000 × 1000 × 200/150 | 300 |
| D28/D16 | cast iron / Q345 steel | 1000 × 2000 × 200/150 | 520 |
| D28/D16 | cast iron / Q345 steel | 1200 × 1200 × 200/150 | 400 |
| D28/D16 | cast iron / Q345 steel | 1200 × 2400 × 200/150 | 800 |
| D28/D16 | cast iron / Q345 steel | 1500 × 1000 × 200/150 | 420 |
| D28/D16 | cast iron / Q345 steel | 1500 × 1500 × 200/150 | 600 |
| D28/D16 | cast iron / Q345 steel | 1500 × 2000 × 200/150 | 800 |
| D28/D16 | cast iron / Q345 steel | 1500 × 3000 × 200/150 | 1150 |
| D28/D16 | cast iron / Q345 steel | 2000 × 3000 × 200/150 | 1500 |
| D28/D16 | cast iron / Q345 steel | 2000 × 4000 × 200/150 | 2100 |
- Universal D28 hole pattern supports a full series of matching accessories for flexible workpiece positioning and clamping.
- Nitrided steel tabletop resists welding spatter corrosion and maintains long-term high precision under heavy cycles.
- Modular fixture layout can be rearranged rapidly to fit different metal workpieces without new jig machining.
- Solid Q355 steel structure offers high load-bearing capacity and effectively prevents deformation during welding.
- Precise hole tolerance guarantees smooth installation and tight alignment of clamps, stops, and locating components.
- Integrated platform design reduces auxiliary setup tools and shortens workpiece clamping time on each welding job.
| Parameter | Details |
|---|---|
| Hole Diameter | 28mm (D28 standard) |
| Hole Grid Pitch | 100mm × 100mm |
| Tabletop Thickness | 20mm / 25mm / 30mm (customizable) |
| Standard Table Sizes | 1500×1000mm, 2000×1000mm, 2400×1200mm, 3000×1500mm, 4000×2000mm |
| Base Material | Q355B high-strength structural steel |
| Surface Treatment | Nitriding + black oxide (BAR coating) |
| Surface Hardness | HV 900–1200 (HRC 65–72) |
| Nitriding Depth | 0.3–0.5mm effective hardened layer |
| Flatness Tolerance | ≤ 0.1mm per meter |
| Load Capacity | 1500kg/leg, 3000–6000kg total |
| Standard Working Height | 800mm (customizable) |
| Certifications | CE, ISO 9001 |
| Warranty | 2-year structural warranty |
The D28 nitrided welding table is the go-to choice for heavy industrial sectors:
- Structural Steel Fabrication — Beam welding, truss assembly, large frame construction
- Heavy Equipment Manufacturing — Construction machinery, agricultural equipment, mining equipment
- Shipbuilding and Offshore — Hull components, deck structures, offshore platform parts
- Bridge and Infrastructure — Steel bridge components, structural supports, guardrails
- Railway and Transportation — Rail car frames, bogies, heavy transportation equipment
- Energy and Power — Wind turbine components, power plant structures, pressure vessels
- Large Metal Workshops — High-volume heavy fabrication production lines
All standard D28 series clamps, locating pins, angle brackets, and stops are fully compatible with the hole grid.
The nitrided surface can resist welding spatter. We recommend proper heat control to protect table flatness during operation.
Yes. We provide custom size service to match your maximum workpiece dimension and workshop space.
Regular cleaning of welding spatter and avoiding excessive impact will help preserve the original flatness for years.
The base table is sold separately. We can supply full matching accessory kits as optional add-on items.
We use solid wooden case packaging to protect the precision tabletop from damage during long-distance transport.
Share your workpiece size and production requirements with our technical team to get a tailored solution and accessory matching proposal. We are ready to offer professional support for your metal welding setup projects. Send your inquiry now and get a competitive quotation for your D28 flexible welding table.
