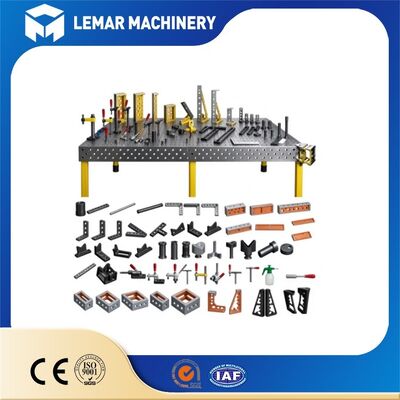

D28 Modular Welding Table 1000x2000mm with Quick Clamps
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
D28 Modular Welding Table 1000x2000mm
,Welding Fixture Table with Quick Clamps
,Modular Welding Table 1000x2000mm
Upgrade your workshop fixturing workflow with the D28 Modular Welding Table 1000x2000mm with Quick Clamps. This robust 3D flexible work platform features a full five-sided Φ28mm hole grid spaced at 100mm intervals, enabling multi-directional clamping for tubes, sheet metal and structural frames. Every tabletop undergoes stress relief and precision CNC milling, paired with nitrided surface treatment to resist welding spatter, scratches and daily heavy use. Included D28 quick clamp accessories allow fast fixture assembly and seamless changeover between different workpieces. Compatible with all standard D28 fixturing components, this welding table serves small job shops and automated robotic welding cells alike.
| Item | Details |
|---|---|
| Table Top Dimension | 1000mm (W) × 2000mm (L) |
| Table Body Height | 200mm |
| Table Top Thickness | 23–25mm |
| Hole Specification | Φ28mm H7 precision locating holes, 100×100mm grid; multi-row holes on side panels (50/100mm mixed grid), enabling 5-sided positioning (3D five-face machining) |
| Flatness | Standard: ≤0.1mm/1000mm; High Precision Grade 0 optional: ≤0.05mm/1000mm |
| Perpendicularity | ≤0.1mm/200mm |
| Optional Material | Q355 structural steel (nitrided) / HT300 grey cast iron |
| Surface Treatment | Nitriding: HV550–900, anti-spatter, wear-resistant & rust-proof; blackening or painting available as alternative options |
| Load Capacity | Dynamic load: approx. 2 tons; Static load: up to 5 tons |
| Compliance & Compatibility | CE certified; holes compatible with M16 locating pins and all standard D28 accessories |
| Surface Roughness | Ra3.2 |
- 5-sided 3D fixturing enables multi-angle clamping for complex welding assemblies
- Stress-relieved & CNC machined tabletop, stable flatness for consistent welding accuracy
- HV550–900 nitrided surface, anti-spatter, wear-resistant and easy slag cleaning
- Standard D28 hole system, fully interchangeable with worldwide D28 accessories
- Heavy-duty construction: static load up to 5 tons, dynamic load approx. 2 tons
- Two material options: Q355 structural steel or HT300 grey cast iron
- CE certification available; material & inspection documents can be provided
- Modular expandable design, supports table splicing for oversized workpieces
- Avoid performing high-current spot welding directly on the table surface for extended periods; it is recommended to use a backing plate to protect the surface.
- Promptly remove welding spatter. Although the nitrided layer resists adhesion, a significant accumulation of spatter can impair positioning accuracy.
- Handle workpieces with care during lifting and placement; avoid heavy impacts near the edges of the holes, as any damage to the hole openings can cause positioning pins to jam.
- Periodically clean out any welding spatter from the holes using a wire brush to prevent them from becoming clogged.
A: Yes. We support separate sales. You may order tabletop only, tabletop + support frame, or the full package including the complete quick clamp kit. Please specify your requirement when sending inquiry.
A: We can supply CE certificate, material mill test certificate (MTC), dimension & flatness inspection report and user manual.
A: Standard production lead time is 15–25 working days. Lead time may be extended for Grade 0 high-precision versions or custom requests.
A: Keep the Φ28 holes clean from weld slag and metal dust, use compressed air or hole brushes regularly. Avoid concentrated high heat welding directly on the tabletop. Check table level every 6 months and recheck flatness periodically.
A: Lockable mobile casters are available as an optional upgrade. However, the load capacity will decrease when fitted with casters, and wheeled bases are not recommended for long-term high-precision welding work.
A: Yes. Quick clamps, locating pins and stops are consumable accessories under frequent friction and impact. The tabletop has longer warranty, while fixtures are not covered under full long-term warranty. Spare accessories can be purchased separately anytime.
Maximize your workshop productivity with the D28 Modular Welding Table 1000x2000mm with Quick Clamps. If you have questions about specifications, load capacity, optional upgrades or delivery schedule, submit your inquiry now. Our sales team will assist you to select the right configuration and calculate the best shipping solution. Reach out to us for your custom quote!
