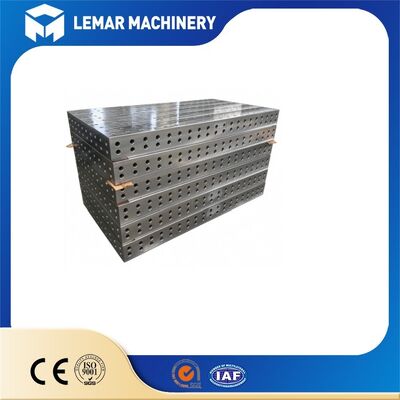

D16 Welding Table Heavy Duty Fixture for Industrial Welding Work
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D16
Document
Hole System:
D16, Φ16mm H7 Tolerance
Grid Pitch:
50mm × 50mm ±0.05mm
Table Top Thickness:
12mm
Material:
Q355 Steel / HT300 Cast Iron Optional
Surface Treatment:
Nitriding
Nitride Layer:
0.3–0.5mm
Hardness:
HV550–900
Perpendicularity:
0.1mm /200mm
Surface Roughness:
Ra1.6μm
Highlight:
D16 welding table heavy duty
,industrial welding fixture table
,welding work fixture table
Product Description
Product Overview
The D16 Welding Table Heavy Duty Fixture for Industrial Welding Work is a compact, precision 5-sided modular 3D fixture platform for industrial welding. Its dense 50×50mm D16 hole grid provides plenty of clamping points for sheet metal, small frames and precision assemblies. Available in HT300 cast iron or Q355 steel with optional plasma nitriding. Modular splicing and interchangeable D16 tooling support fast setup for manual and robotic welding applications.
Production Process
- Blanking/Casting → Artificial aging (stress-relief heat treatment) for the entire component (prevents thermal deformation during welding; this step is often skipped for lower-cost products).
- Five-sided CNC milling; all D16 grid holes are machined in a single setup, with H7 precision reaming to ensure hole-wall accuracy.
- Optional plasma nitriding (surface hardening): enhances wear resistance and provides protection against weld spatter, making it difficult for spatter to adhere to the table surface.
- Full inspection via CMM (Coordinate Measuring Machine) with a detailed accuracy report; for export orders, material certification and heat treatment documentation can be provided.
Key Specifications
| Item | Specification |
|---|---|
| Hole System | D16, Φ16mm H7 precision holes, 5-sided machining (holes on top surface + 4 vertical sides) |
| Grid Pitch | 50mm × 50mm standard metric grid; custom imperial grid available |
| Table Top Thickness | 23–25 mm |
| Flatness | 0.02mm |
| Hole Spacing Tolerance | 0.03mm |
| Optional Material | HT300 Grey Cast Iron / Stress-Relieved Q355 Steel |
| Surface Treatment | As-machined / Black Oxide / Plasma Nitriding (HV550–900, hardened layer: 0.25–0.5mm) |
| Matching Connectors | M8 locating pins, M8 locking bolts, full set of standard D16 fixtures |
| Standard Sizes | 1000×800 / 1000×1000 / 1200×800 / 1500×1000 / 2000×1000mm, support multi-table splicing for extended workspace |
| Standard Support Legs | Adjustable leveling feet, standard working height 850mm after assembly |
Key Advantages
- Flexible and Versatile – Cost Reduction: The ideal choice for high-mix, low-volume production. Fixtures can be easily disassembled and reconfigured during product changeovers, saving time and costs associated with custom tooling.
- High Positioning Accuracy: Features a 50mm precision grid with tight tolerances, ensuring consistent welding dimensions and minimizing the need for rework; well-suited for precision sheet metal work and frame fabrication.
- Wear-Resistant and Weld-Spatter Resistant: Nitrided surface treatment prevents weld spatter from adhering to the table, making it easy to clean and ensuring a long service life.
- Modular Expandability: Multiple tables can be joined together to create an extra-large workspace, accommodating the welding of large-scale frames.
- Robot-Welding Ready: Offers excellent surface flatness, serving as a reliable reference platform for robotic welding workstations.
Warranty
- Tabletop/Main Unit (excluding damage from intentional impact): 1-year warranty
- Support Frame: 1–2 years
- Fixture Accessories (consumable parts such as clamping heads, bolts, etc.): 6-month warranty
- After-sales Support: English technical manuals and online video guidance for fixture setup; on-site installation and calibration services available for major clients; complimentary design services for workpiece fixture layouts.
If you are looking for a high-precision modular workbench, our D16 Welding Table Heavy Duty Fixture for Industrial Welding Work is your ideal choice.
Send us your requirements today and get your customized offer. We are ready for your inquiry!
