Professional D28 Welding Table Modular System for Industrial Fabrication
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T |
| Supply Capacity: | 500 units/month |
D28 welding table modular system
,industrial fabrication welding fixture table
,modular welding table for fabrication
For fabricators seeking greater flexibility without sacrificing accuracy, the Professional D28 Welding Table Modular System for Industrial Fabrication redefines how welding jigs are built on your shop floor.

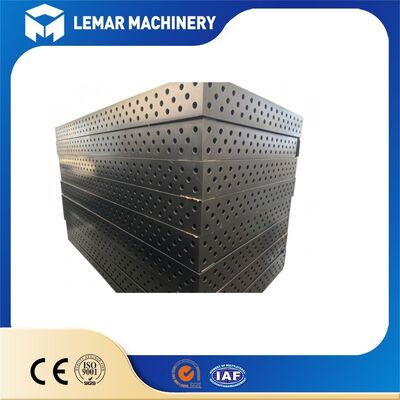

This complete modular 3D platform uses the D28 28mm hole grid system across five faces, letting you secure complex workpieces from nearly any orientation. Choose from cast iron or low-alloy steel base materials, with optional nitriding to boost surface durability for years of heavy workshop use. Reconfigure clamps, stops and supports in minutes for new product runs instead of waiting weeks for bespoke tooling.
| Table Size (L × W × H, mm) | Table Top Thickness | Material Options | Main Application |
|---|---|---|---|
| 1000 × 800 × 200 | 25 mm | HT300 Cast Iron / Q355 Stress-Relieved Steel | Small frames, brackets, prototype fabrication |
| 1000 × 1000 × 200 | 25 mm | HT300 Cast Iron / Q355 Stress-Relieved Steel | Medium assemblies, bench robotic welding cells |
| 2000 × 1000 × 200 | 25 mm | HT300 Cast Iron / Q355 Stress-Relieved Steel | Chassis, machinery bases, medium steel structures |
| 2400 × 1200 × 200 | 25 mm | HT300 Cast Iron / Q355 Stress-Relieved Steel | Trailer frames, heavy equipment weldments |
| 3000 × 1500 × 200 | 25 mm | HT300 Cast Iron / Q355 Stress-Relieved Steel | Large structural steel, rail & transport components |
| 4000 × 2000 × 200 | 25 mm | HT300 Cast Iron / Q355 Stress-Relieved Steel | Oversized fabrications, multi-module splicing workstation |
All welding tables support seamless modular splicing. Custom sizes & precision grades available for robotic welding and heavy fabrication. Weight data will be offered on your formal inquiry.
- Aperture: Φ28mm (H7 tolerance reamed holes); compatible with standard M16 locating pins/locking bolts. Hole depth: 30–50mm, ensuring sufficient engagement for pins and providing high clamping rigidity.
- Grid pattern: 100mm × 100mm; a 2-inch (imperial) grid option is also available upon request.
- Optional etched reference scale on the tabletop (millimeter increments, permanently etched to prevent wear), facilitating quick marking and positioning.
- Optional wear-resistant hole bushings: Recommended for high-frequency tooling setup and teardown. These bushings can be replaced individually when worn, avoiding the need to scrap the entire tabletop and thereby reducing long-term operating costs.
- Five-sided hole configuration: Features a D28 grid pattern on the top surface and all four side faces. This allows for the mounting of fixtures in vertical or inclined orientations, enabling true 3D-space tooling—a significant advantage over 2D platforms, which only feature holes on the top surface.
- CE certification (Machinery Directive – MD) – mandatory for exports to the European Union
- ISO 9001 (Quality Management), ISO 14001 (Environmental Management), and ISO 45001 (Occupational Health and Safety) – copies of certificates available upon request
- Delivery documentation package: material certificates, heat treatment reports, CMM (Coordinate Measuring Machine) accuracy inspection certificates, packing lists, user manuals, and parts lists
- HS Code: 73269000 (metal welding fixture platforms)
A: Yes. Custom dimensions, engraved scales and special tolerances are supported. Send your requirements for quotation.
A: Full set of interchangeable D28 parts: locating pins, angle blocks, V-blocks, risers, stop blocks and quick clamps.
A: Not mandatory. Nitriding is an upgrade for heavy-duty workshops. Shops with low usage frequency may select standard machined or black oxide finish to save cost.
A: We support EXW, FOB, CIF and DDP. Common payment terms: 30% deposit, balance before shipment.
A: Every finished table is inspected by CMM. A signed precision test report will be provided together with shipment documents.
Interested in the Professional D28 Welding Table Modular System for Industrial Fabrication? Send your project requirements now to get your customized solution and best offer.
