D28 Welding Table with 200mm Side Plate Height for Rigidity
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T |
| Supply Capacity: | 500 units/month |
D28 Welding Table 200mm Side Plate
,Welding Fixture Table Rigidity
,D28 Welding Table Side Plate Height

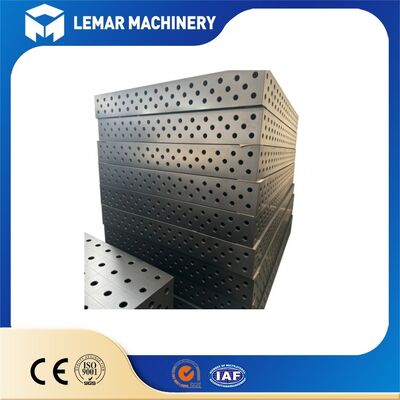

Tired of welding tables twisting and losing flatness under heavy loads? Our D28 Welding Table with 200mm Side Plate Height for Rigidity solves exactly this problem. The upgraded 200mm side plate box structure greatly improves overall rigidity compared to standard 100mm side D28 tables, keeping consistent flatness even under strong clamping pressure and welding heat. 5-sided fully machined D28 system holes allow you to mount fixtures horizontally and vertically for complex assemblies. Choose HT300 cast iron or Q355 steel base with hard nitriding surface. It's the reliable precision platform for heavy fabrication and automated robotic welding lines.
| Item | Specification |
|---|---|
| Hole Size & Tolerance | Φ28mm, H7 tolerance |
| Hole Grid Pitch | 100×100mm |
| Table Top Thickness | 23~25mm |
| Side Plate Height | 200mm, 4 sides fully machined with D28 system holes |
| Material | Optional: HT300 Cast Iron / Q355 Welded Steel with bottom reinforcing ribs |
| Surface Treatment | Nitriding, HV550~900, wear-resistant, anti-spatter & anti-rust |
| Flatness | ≤0.05mm/1000mm |
| Hole Position Accuracy | ±0.03~±0.05mm |
| Perpendicularity | Side plate perpendicularity ≤0.1mm/200mm |
| Load Capacity | Single leg: 700-1000kg; Total static load: 3-10 tons |
| Available Sizes | 1000×800 / 1200×1000 / 1500×1000 / 2000×1000 / 2000×4000mm, splittable for extended platform |
Tables with low side panels (100mm) are prone to distortion under heavy clamping forces or thermal stress during welding. The combination of 200mm side walls and bottom stiffening ribs creates a box-like structure that offers superior resistance to deformation and maintains long-term flatness stability. This makes it ideal for large workpieces, heavy steel structures, and robotic automated welding.
All four side walls feature CNC-machined D28 grid holes, extending clamping capabilities beyond just the tabletop. Angles, supports, and positioning blocks can be mounted on the sides and vertical faces, enabling multi-angle workpiece positioning and 90-degree vertical referencing without the need for additional fixture bases.
The 200mm-high machined reference surface provides a longer baseline for verticality measurement and positioning compared to 100mm side walls, resulting in reduced errors during right-angle assembly.
Comparison: D16 welding tables typically feature 100mm side panels, making them suitable for small frames and sheet metal work. D28 welding tables feature 200mm side panels specifically designed for heavy structural components, construction machinery frames, container frameworks, and robotic welding workstations.
- Nitrided layer depth: 0.25-0.5 mm
- Hardness: HV550-900
- Advantages: Resistant to high-temperature welding spatter, scratches, and rust; the coating does not peel like paint; reference surfaces are resistant to damage from welding sparks; low friction coefficient ensures smooth sliding and positioning of tooling.
- Limitations: The surface cannot be repaired via weld overlay, as this would destroy the nitrided layer and cause localized deformation.
A: Single support leg can bear 700-1000kg. The whole table static load capacity ranges from 3 tons to 10 tons depending on table dimensions.
A: The quotation of table body does not include support legs, locating pins and clamping kits. All accessories are optional, you can select them according to your project needs.
A: Available sizes: 1000×800mm, 1200×1000mm, 1500×1000mm, 2000×1000mm, 2000×4000mm. Custom dimensions are acceptable.
A: Clear welding spatters regularly, clean debris inside system holes and apply anti-rust oil periodically. Avoid direct arc striking on the tabletop, which will damage the nitriding layer and flatness. Do not hammer the reference surface.
A: Yes. Factory COA inspection report including flatness, hole position tolerance and perpendicularity test records can be supplied for acceptance.
Our D28 Welding Table with 200mm Side Plate Height for Rigidity delivers superior rigidity and stable precision for heavy fabrication. Send us your requirements to receive a custom offer and product drawing.
