D16 Welding Fixture Table with Quick Locking Pin Accessories
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,D/P,T/T,L/C |
| Supply Capacity: | 500 units/month |
D16 Welding Fixture Table
,Welding Fixture Table Quick Locking Pin
,Welding Fixture Table Accessories

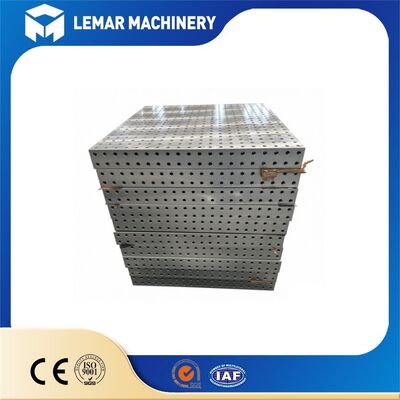

The D16 Welding Fixture Table with Quick Locking Pin Accessories is a modular precision welding fixture system featuring a 50mm × 50mm D16 hole grid. Equipped with ball-type quick locking pins and a complete set of clamping accessories, this 2D or 3D five-sided table supports fast fixture repositioning, making it ideal for small and medium frame fabrication and robotic welding. The optional nitrided surface resists welding spatter and scratches for long service life.
| Item | 2D D16 Table (Single-Sided Welding Table) | 3D 5-Sided D16 Table (Five-Sided Welding Table) |
|---|---|---|
| Perforated Area | D16 grid holes only on the top surface | Full D16 grid holes on the top surface plus four vertical side faces |
| Clamping & Locating Direction | Locating only on the horizontal plane; workpieces can only be clamped from the top | 3D clamping along X/Y/Z axes; stops, supports and fixtures can be mounted on side faces |
| Typical Applications | Flat plates, simple frames, sheet metal welding, single-layer tooling | Frames, enclosures, square tube structures, multi-position robotic welding, complex 3D workpieces |
| Weight & Handling | Lighter weight, easier to move and handle | Heavier construction, higher rigidity, better resistance to welding deformation |
| Cost | Lower cost | Higher cost due to extra machining hours |
| Target Customers | Small sheet metal shops, prototype workshops | Automation system integrators, robotic welding cells, manufacturers of small construction machinery components |
- Independent Support Legs: Cast steel or welded square-tube legs; static load capacity of 700–1000 kg per leg.
- Leveling: M16/M20 leveling bolts at the base of each leg allow for ±10–20 mm height adjustment to ensure a level surface on uneven floors.
- Reinforced Structure: Grid of stiffening ribs beneath large tabletops; stress-relieved via artificial aging to minimize creep deformation during long-term use.
- Load Capacity Specifications:
- 3–10 tons total static load capacity (depending on tabletop dimensions, thickness, and the number/spacing of legs).
- Warning: Load ratings apply to static, uniformly distributed loads; the table cannot withstand concentrated impacts or heavy hammer blows, as such impacts can permanently compromise surface flatness.
- Optional: Mobile caster base (with brakes; suitable for applications requiring table mobility; load capacity is reduced for mobile versions).
- Modular Flexibility: A single platform allows for rapid tooling reconfiguration without the need for custom-made welding jigs; ideal for high-mix/low-volume production, prototyping, and robotic welding.
- High Positioning Accuracy: Features a 50mm fine grid with strict hole tolerances and stable repeatability, minimizing rework caused by dimensional deviations.
- Rapid Changeover: Quick-locking pins eliminate the need for tedious bolting, drastically reducing tooling changeover times and significantly boosting efficiency compared to traditional welding fixtures.
- High Versatility: Adheres to the international D16 standard, ensuring accessory compatibility with overseas brands; supports both 2D planar and 3D multi-angle positioning.
- Rugged Durability: Nitrided, hardened surface resists high temperatures and weld spatter; scratch-resistant and maintains flatness over long-term use.
A: Not recommended. High heat from plasma or flame cutting will cause local thermal deformation and ruin table flatness. Only MIG/TIG welding is allowed on the table.
A: Yes, fully compatible with the international D16 modular fixture standard; parts can be cross-used.
A: With normal maintenance, the nitrided surface lasts for many years, resistant to welding spatter and scratches.
A: Yes. We supply alignment pins for multi-table splicing; total flatness can still be controlled.
A: Mill test certificate, flatness inspection report, and IPPC fumigation certificate for export wooden cases.
Our D16 modular welding fixture tables with quick locking pin kits deliver repeatable precision for low-to-medium heavy fabrication, robotic welding, and prototype jobs. We support custom table dimensions, 2D or 5-sided 3D structure, nitriding treatment, and full fixture packages.
Please share your workpiece maximum size, clamping requirements, and workshop layout. We will propose the best table solution and a full quotation including tabletop, support legs, and all D16 clamping accessories.
