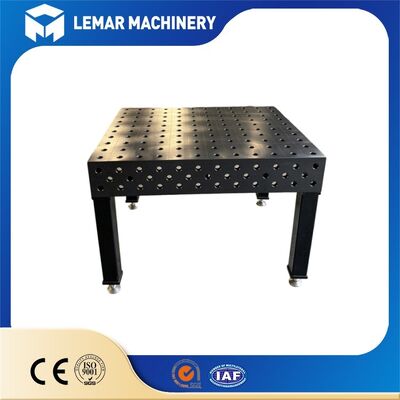

D28 Steel Welding Table with Adjustable Legs and Casters
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T |
| Supply Capacity: | 500 units/month |
D28 steel welding table
,welding table with casters
,adjustable leg welding fixture table
Our D28 Steel Welding Table with Adjustable Legs and Casters is a heavy-duty 3D flexible welding platform built for large structural fabrication. Adopting the D28 standard hole system (Φ28mm, H7 tolerance, 100×100mm grid), this modular steel workbench comes with height-adjustable support legs and optional moving casters. It delivers high flatness and excellent load capacity for construction machinery, chassis, and heavy frame welding. The casters allow easy workshop relocation, while adjustable feet ensure stable leveling during welding operation.
| Item | Parameter |
|---|---|
| Model | D28 Steel Welding Table |
| Hole Spec | Φ28mm, H7 tolerance, 100×100mm grid |
| Table Material | Q355 low alloy steel |
| Table Thickness | 25mm |
| Surface Treatment | Plasma nitriding, HV550-900, anti-weld spatter & scratch resistant |
| Flatness | Standard ≤0.1mm/1000mm; Grade 0 ≤0.05mm/1000mm |
| Leg Type | Adjustable support legs + optional heavy-duty casters |
| Single Leg Load | 700-1000kg |
| Total Static Load | 3-10 tons (depends on table dimension) |
- D28 Standard Hole Grid: Φ28mm H7 precision holes with 100×100mm spacing. Fully compatible with all D28 series fixtures, positioning pins, and stops for heavy workholding.
- Height Adjustable Legs: Leveling feet on each leg to fine-tune table height and compensate for uneven workshop floors, guaranteeing table flatness during welding.
- Optional Heavy-Duty Casters: Lockable industrial casters for easy moving of the whole table around the workshop; lock casters firmly when working to prevent shifting.
- Nitrided Q355 Steel Tabletop: High hardness nitrided surface repels weld spatter, resists scratches and corrosion, and provides long service life in harsh welding environments.
- High Load Bearing Capacity: Robust steel support frame designed for heavy workpieces like machinery frames, truck chassis, and large steel structures.
- Modular & Spliceable: Multiple welding tables can be connected together to build an extra-large working area, with hole accuracy remaining consistent after splicing.
- Stress Relief: After rough CNC cutting, the raw steel plate undergoes stress relief treatment to eliminate internal machining stress. This step effectively prevents the tabletop from warping or deforming after long-time heavy welding use, maintaining stable flatness permanently.
- CNC Precision Milling: The whole tabletop and 5 working sides are finish-milled by a large gantry CNC machine. It ensures uniform flatness and consistent hole position tolerance across the entire working surface.
- Hole Machining: All locating holes are reamed to H7 tolerance after drilling. Perfect fit with D28 positioning pins, no clearance, ensuring repeat positioning accuracy of ±0.05 mm.
- Shot Blasting: Shot blasting removes oxide scale on the steel surface before nitriding, to guarantee uniform penetration of the nitriding layer.
- Plasma Nitriding: Nitriding layer thickness: 0.25-0.5 mm. Surface hardness HV550-900. The layer will not peel off. Weld spatter can be brushed or knocked off easily without damaging the reference surface.
- Assembly Calibration: Support legs, adjustable feet, and casters are assembled and calibrated one by one before packing. Each table will pass flatness and dimension inspection.
- Packing method: Plywood case or steel pallet packaging, suitable for sea freight. Anti-collision protection on table corners.
- Shipping: We can arrange sea freight to Europe, Australia, the Middle East, Southeast Asia, Africa, and the Americas. Support EXW, FOB, CIF, DAP, and DDP terms.
- Shipping note: The table is heavy cargo. We will confirm gross weight and dimensions for freight quotation in advance.
Q: What is stress relief and why is it important?
A: Stress relief removes internal residual stress inside the steel plate. Without this process, the tabletop may warp gradually under heavy load and welding heat, losing flatness quickly.
Q: What is the difference between painting and plasma nitriding?
A: Paint coating will burn and peel off when hit by weld spatter. Plasma nitriding is a metallurgical reaction forming a hard layer inside the steel, not a surface coating. It cannot peel off.
Q: Can I use casters to support the table during welding?
A: No. Casters are only for moving. Always lower the adjustable leveling feet to bear full weight during welding, otherwise vibration will cause dimension error and damage the casters.
Q: Can I buy spare legs or casters separately later?
A: Yes, we supply spare adjustable feet, casters, positioning pins, and clamps as after-sales parts.
Q: Can you mark inch scale on the tabletop?
A: Yes, customized inch marking is available upon request for North American customers.
We provide fully customized D28 welding tables including custom dimensions, flatness grades, optional casters, and inch marking service. All tables pass strict quality inspection before shipment and CE certification is available. Please send us your workpiece size, maximum load, and workshop layout requirements. Our engineering team will design the suitable table layout and full accessory list with a formal quotation for you.
