Robust Welding Table D28 for Metal Frame Manufacturing Shops
| MOQ: | 1 |
| Price: | 500USD-1000USD |
| Standard Packaging: | 4000mm*2000mm*200mm |
| Delivery Period: | 10-20 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
D28 welding table for metal frames
,welding fixture table for manufacturing shops
,robust welding table D28

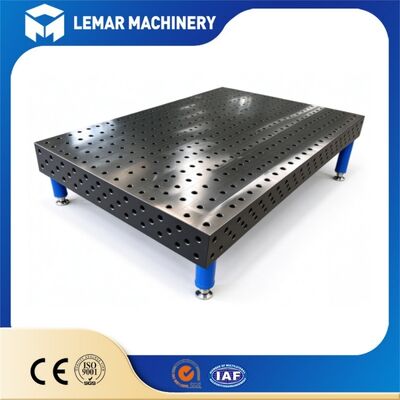

Our Robust Welding Table D28 is purpose-built for high-volume metal frame manufacturing. This heavy-duty 3D flexible welding platform features a solid reinforced steel construction and a standardized D28 hole grid layout. It delivers dependable stability during continuous clamping, tack welding and final assembly of metal frames.
Fabricators can quickly arrange locators, supports and clamps across the table surface to fix frame parts securely. It reduces repeated jig fabrication and shortens workpiece setup time, maintaining consistent geometry for mass metal frame production. It acts as a reliable core workstation for metal frame workshops that run nonstop daily production.
| Item | Parameters |
|---|---|
| Base Material | Q355 low-alloy high-strength steel |
| Surface Treatment | Five-sided full-depth integral nitriding |
| Surface Hardness | HV 450–1000 |
| Hole Specification | D28 (28mm diameter), grid spacing 100±0.05mm |
| Flatness Accuracy | ≤0.1mm / 1000mm |
| Hole Center Tolerance | ±0.03mm |
| Tabletop Thickness | 25mm |
| Max Static Load | 12 tons |
| Working Surfaces | Five-sided operation (top plus four vertical sides) |
| Custom Service | Multiple standard sizes |
Thickened table body and strengthened side skirts resist bending stress under long continuous working shifts. The table maintains its shape when securing large metal frames and avoids permanent deformation after years of heavy daily operation.
Standardized D28 holes are fully compatible with the complete range of modular clamping accessories. Operators can reposition locating tools freely to accommodate different frame sizes without manufacturing custom one-off jigs.
The hardened nitrided layer protects the tabletop from hot weld splatter, scratches and repeated clamp impacts. It preserves hole positioning accuracy even with constant frame welding cycles in busy workshops.
Every table undergoes flatness inspection before leaving the factory. A stable flat surface minimizes twisting and dimension deviation, ensuring all finished metal frames meet assembly tolerance requirements.
Each support leg is fitted with leveling feet. Workers can fine-tune the horizontal plane of the whole table easily on uneven concrete ground to guarantee accurate frame assembly and welding.
Optimized internal bearing design safely supports up to 3000kg evenly distributed load. It can stably hold bulky steel frames, rack frames and equipment support frames during assembly and welding.
- Job Shops and Custom Fabrication — fast changeover between diverse customer projects
- Prototype Development and R&D — quick iteration and testing of new designs
- Mixed Production Lines — handle multiple product types on one platform
- Heavy Equipment Manufacturing — large, complex assemblies with frequent reconfiguration
- Automotive and Custom Builds — one-off and small-batch custom fabrication
- Training and Education Centers — versatile platform for teaching welding and fixturing
- Tabletop: The main welding table body is packed in a heavy-duty, fumigation-free solid wood plywood crate, featuring internal foam protection and reinforced corner bracing to prevent damage during ocean transit.
- Fixture Kit: Components are individually wrapped in anti-rust paper and organized within a metal tool case.
- Legs and Accessories: Packed in separate boxes to prevent scratching the nitrided tabletop surface during transport.
A: D28 refers to the 28mm diameter hole system, the European industry standard for welding fixture tables. It ensures compatibility with hundreds of off-the-shelf clamping accessories.
A: Absolutely. With up to 20mm thick plate and 5,000 kg load capacity, this table handles structural steel, heavy pipe, and large fabrication assemblies with ease.
A: Consider your typical project size plus 20–30% workspace around the parts. Most shops start with 2000×1000mm or 2000×1500mm. Not sure? Contact us and we'll help you size it right.
A: We offer a 1-year warranty on manufacturing defects. With proper care, these tables last 10+ years in daily industrial use.
If you need engineering drawings, packing dimensions, gross weight or CIF freight quotation for your metal frame manufacturing workshop project, please send your inquiry to our sales team. We will prepare competitive factory pricing and a suitable workstation solution for your frame fabrication line. Contact us to get your customized welding table solution today.
