Welding table D16 For Metal Fabrication Weld Assembly Tasks
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI,CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D16
Document
Customization Capabilities:
Supports Customization/MultipleUnits Splicing
Production Capacity:
50000PCS/Year
Thickness:
12mm
Flatness:
≤0.1mm/1000mm
Working Face:
5-Sided Precision Machining
Countertop Material:
Q355 Steel/ Ht300 Cast Iron/Stainless Steel
Model NO:
D16
Verticality:
≤0.1mm/200mm
Diameter:
16mm
Highlight:
welding table D16 for metal fabrication
,welding fixture table for weld assembly
,D16 welding table with warranty
Product Description

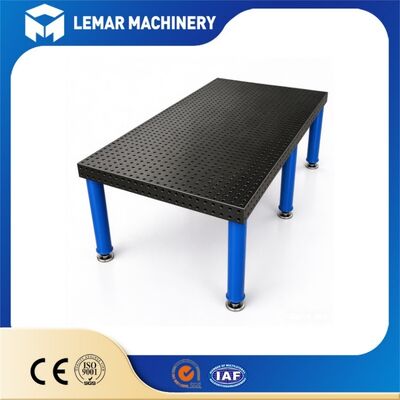

Welding Table D16 For Metal Fabrication Weld Assembly Tasks
Product Overview
The D16 welding table is a flexible modular fixturing platform built for metal fabrication weld assembly tasks. Featuring a precise D16 hole grid system, this workbench enables fabricators to quickly position and secure workpieces with matching clamps and locating blocks. Manufactured from high strength steel and treated with nitriding on the surface, it delivers stable performance during repeated welding, fitting and assembly operations. The standardized hole spacing ensures consistent positioning accuracy, helping users cut down fixture setup time and improve production efficiency for small to medium metal fabrication projects.
Product Parameters
| Parameter | Specification |
|---|---|
| Grid System | D16 - 16mm holes on 50mm centers |
| Hole Tolerance | H7 (16.000 ~ 16.018mm) |
| Positioning Accuracy | ±0.05mm repeatability |
| Tabletop Material | HT300 cast iron |
| Tabletop Thickness | 12mm |
| Surface Treatment | Nitrided (HV ≥ 550) |
| Flatness Tolerance | ±0.1mm per m² |
| Static Load Capacity | 3,000 kg |
| Working Height | 820mm (custom available) |
| System | Material | Size(mm) | Weight(kg) |
|---|---|---|---|
| D28/D16 | HT300 cast iron/Q355 steel | 1000*1000*200/150 | 300 |
| D28/D16 | HT300 cast iron/Q355 steel | 1000*2000*200/150 | 520 |
| D28/D16 | HT300 cast iron/Q355 steel | 1200*1200*200/150 | 400 |
| D28/D16 | HT300 cast iron/Q355 steel | 1200*2400*200/150 | 800 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500*1000*200/150 | 420 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500*1500*200/150 | 600 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500*2000*200/150 | 800 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500*3000*200/150 | 1150 |
| D28/D16 | HT300 cast iron/Q355 steel | 2000*3000*200/150 | 1500 |
| D28/D16 | HT300 cast iron/Q355 steel | 2000*4000*200/150 | 2100 |
Various sizes can be customized according to customer requirements.
Product Advantages
- Accurate D16 hole grid with 50mm pitch supports fast modular fixture arrangement for metal fabrication and assembly work
- Nitrided tabletop offers outstanding resistance against welding spatter, scratches and daily wear for long workshop service life
- Solid Q355 steel plate construction maintains flatness and avoids deformation under regular workshop loading conditions
- Full compatibility with a complete range of D16 standard accessories including clamps supports and positioning pins
- Compact modular design fits well in limited workshop space, ideal for job shops handling varied small batch metal parts
- Flexible dimension customization meets different workpiece sizes and layout requirements for metal fabrication workshops
Product Applications
- Small metal part batch fabrication and precision welding
- Custom metal prototype development and trial production
- Machinery accessory assembly and welding processing
- Repair work for small metal structural components
- Vocational college welding skill training courses
- Hobbyist and small-studio metal fabrication projects
Frequently Asked Questions
Q1: What is the tolerance of the hole pitch on the D16 welding table?
Our D16 hole position tolerance is strictly controlled during machining to guarantee interchangeability of all standard D16 fixtures. Hole tolerance: 0.05 - 0.1mm; Position tolerance: ±0.03
Q2: Can I buy only the tabletop without supporting legs?
Yes, we supply separate tabletop and supporting legs. You can choose components according to your actual workshop needs.
Q3: Is the nitrided surface coating easy to peel off?
The nitriding treatment forms a hardened layer integrated with the steel substrate, so it will not peel off under normal welding operations.
Q4: What weight can the D16 welding table hold?
The safe load capacity depends on the table size. Our sales team will provide detailed load data once you confirm your preferred table dimension.
Q5: Can the D16 welding table be combined with extension plates?
Yes, extra extension plates with D16 hole pattern can be added to expand the working area for larger workpieces.
Q6: What is the production lead time for a custom sized D16 welding table?
Production time depends on table dimensions and order quantity. We will confirm the exact schedule after finalizing your technical specifications.
Contact Us
If you need a reliable modular platform for your metal fabrication weld assembly tasks, please share your workpiece dimensions and loading requirements with us. Our professional engineering team will provide tailored technical advice and competitive quotation for your D16 welding table solution.
