D28 Welding Table For Heavy Steel Fabrication Workshop Tasks
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI,CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Thickness:
25mm
Customization Capabilities:
Supports Customization/MultipleUnits Splicing
Countertop Material:
Q355 Steel/ Ht300 Cast Iron/Stainless Steel
Payment Currency:
Dollar
Model NO:
D28
Diameter:
28mm
Exporting Country:
The Whole World
Verticality:
≤0.1mm/200mm
Flatness:
≤0.1mm/1000mm
Highlight:
D28 welding table for steel fabrication
,heavy-duty welding fixture table
,welding workshop table with warranty
Product Description

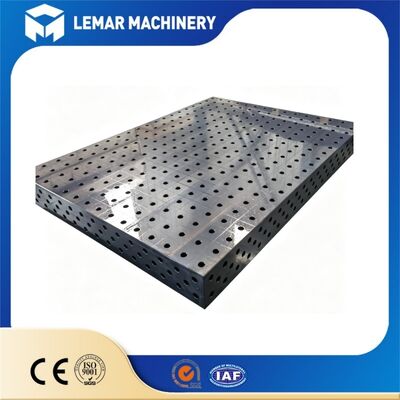

D28 Welding Table For Heavy Steel Fabrication Workshop Tasks
Product Overview
Our D28 Welding Table is purpose-built to handle demanding heavy steel fabrication jobs in busy metalworking workshops. Built around the standard D28 hole grid system, this robust work platform delivers stable reference planes for positioning and clamping thick steel workpieces.
Every tabletop undergoes precision CNC machining to maintain reliable flatness under substantial static and welding heat loads. It allows operators to quickly arrange fixtures and stops, cutting down repeated setup time for large steel frames and structural components. The reinforced steel construction is engineered to resist deformation during long hours of heavy welding and assembly work.
Product Parameters
| Parameter | Specification |
|---|---|
| Grid System | D28 - 28mm holes on 100mm centers |
| Hole Tolerance | H7 precision |
| Tabletop Material | HT300 cast iron / Q355 steel |
| Tabletop Thickness | 100mm |
| Surface Treatment | Nitrided (HV ≥ 600) |
| Flatness Tolerance | ±0.1mm per m² |
| Static Load Capacity | 5,000 kg per table |
| Standard Sizes | 1500×1000, 2000×1000, 3000×1500mm |
| Leg Height | 850mm (custom heights available) |
| Leg Construction | 80×80mm square tube, 5mm wall |
| Leveling Feet | M24 threaded, 50mm pad |
Product Sizes
| System | Material | Size(mm) | Weight(kg) |
|---|---|---|---|
| D28/D16 | HT300 cast iron/Q355 steel | 1000*1000*200/150 | 300 |
| D28/D16 | HT300 cast iron/Q355 steel | 1000*2000*200/150 | 520 |
| D28/D16 | HT300 cast iron/Q355 steel | 1200*1200*200/150 | 400 |
| D28/D16 | HT300 cast iron/Q355 steel | 1200*2400*200/150 | 800 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500*1000*200/150 | 420 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500*1500*200/150 | 600 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500*2000*200/150 | 800 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500*3000*200/150 | 1150 |
| D28/D16 | HT300 cast iron/Q355 steel | 2000*3000*200/150 | 1500 |
| D28/D16 | HT300 cast iron/Q355 steel | 2000*4000*200/150 | 2100 |
Product Advantages
- Reinforced Heavy Load Structure
Extra thick steel plate and internal reinforcing ribs support bulky heavy steel workpieces and prevent permanent bending under high weight. - Universal D28 Grid Hole Layout
Standard 28mm holes match most global D28 clamping accessories, enabling fast flexible fixture layout for different heavy steel structures. - Strong Heat Deformation Resistance
Gas nitriding treatment creates a hardened surface layer and reduces thermal warping caused by continuous high temperature welding cycles. - Strictly Controlled Machining Precision
Full surface CNC milling ensures consistent hole position accuracy and flatness to keep alignment stable during heavy steel assembly. - Interconnected Modular Design
Multiple individual tables can be joined together to expand working area for oversized steel beams and large frame assemblies. - High Resistance To Welding Spatter
Hardened tabletop withstands hot welding slag and scratches, lowering surface damage and extending the service life in harsh workshop environments.
Product Applications
- Batch production of steel frame structural components
- Heavy steel beam welding and assembling work
- Construction machinery structural part manufacturing
- Container and trailer frame mass fabrication
- Steel workshop high-volume welding production lines
- Prefabricated metal component processing
- Large steel-structure prototype batch trial-production
Customer Feedback
Shipping and Delivery
Frequently Asked Questions
What load can this D28 welding table support?
It can take evenly distributed load up to 2 tons per square meter, designed specifically for heavy steel workpiece fabrication.
What is gas nitriding on the tabletop?
Gas nitriding forms a deep uniform hardened layer on steel surface, improving wear resistance while minimizing distortion compared with other hardening methods.
Can I link multiple tables to handle extra large steel workpieces?
Yes. The modular design supports seamless connection of several tables to build a bigger continuous working platform.
Are D28 clamps and stops compatible with this welding table?
This table follows international D28 standard, and works with all standard D28 clamps positioning blocks and angle stops.
Can you adjust table dimensions for our special heavy steel projects?
Custom length width and thickness are available. Please share your workpiece size and load requirement for our technical evaluation.
What inspections will be carried out before shipment?
We perform flatness testing hole position verification and surface hardness inspection on each table before packaging and delivery.
