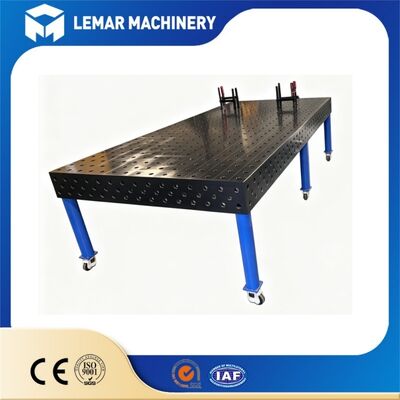

Nitrided D28 Welding Table For Workshop Metal Welding Projects
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI,CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Model NO:
D28
Condition:
New
Flatness:
≤0.1mm/1000mm
Thickness:
25mm
Working Face:
5-Sided Precision Machining
Customization Capabilities:
Supports Customization/MultipleUnits Splicing
Verticality:
≤0.1mm/200mm
Specification:
2400x1200mm
Origin:
Jiangsu Wuxi
Highlight:
Nitrided D28 welding table
,Workshop metal welding table
,Welding fixture table with nitrided surface
Product Description
Nitrided D28 Welding Table For Workshop Metal Welding Projects
Product Overview
This nitrided D28 welding table delivers dependable modular positioning performance targeted at daily‑intensive workshop metal welding projects. Built with robust cast iron base and uniform plasma nitrided surface, the unit maintains stable flatness under repeated clamping, fixture mounting and thermal welding impacts. Its standardized D28 hole grid enables fast rearrangement of assorted accessories, cutting down setup time for mixed‑batch metal fabrication. Designed for long‑term workshop deployment, this welding platform balances high rigidity, wear resistance and operational flexibility to support varied metal welding and assembly workflows.
Product Parameters
D28 vs. D16 — Which One Do You Need?
| Feature | D16 Standard Table | D28 Industrial Grade Table |
|---|---|---|
| Hole Diameter | 16mm | 28mm |
| Grid Pitch | 50mm | 100mm |
| Best For | General fabrication, small parts, precision jig work | Heavy structural work, large beams, heavy clamping |
| Holding Power | Good for medium workpieces | Extreme — locks down tons of steel |
| Pin / Clamp Size | Standard 16mm fixturing | Heavy-duty 28mm industrial fixturing |
| Typical Load | 2000-5000kg | 3000-6000kg+ |
| Ideal Industry | Job shops, automotive, small manufacturing | Structural steel, heavy equipment, shipbuilding |
Product Size
| System | Material | Size(mm) | Weight(kg) |
|---|---|---|---|
| D28/D16 | cast iron/Q345 steel | 1000*1000*200/150 | 300 |
| D28/D16 | cast iron/Q345 steel | 1000*2000*200/150 | 520 |
| D28/D16 | cast iron/Q345 steel | 1200*1200*200/150 | 400 |
| D28/D16 | cast iron/Q345 steel | 1200*2400*200/150 | 800 |
| D28/D16 | cast iron/Q345 steel | 1500*1000*200/150 | 420 |
| D28/D16 | cast iron/Q345 steel | 1500*1500*200/150 | 600 |
| D28/D16 | cast iron/Q345 steel | 1500*2000*200/150 | 800 |
| D28/D16 | cast iron/Q345 steel | 1500*3000*200/150 | 1150 |
| D28/D16 | cast iron/Q345 steel | 2000*3000*200/150 | 1500 |
| D28/D16 | cast iron/Q345 steel | 2000*4000*200/150 | 2100 |
Product Advantages
Key Features
- Superior Wear‑Resistant Nitrided Surface
The plasma nitrided tabletop resists scratches, arc burns and daily abrasion generated in busy workshop environments. It avoids quick surface degradation even after frequent clamping and welding sparks, extending the service life of the whole table and lowering your long‑term replacement expense.
Accurate Repeatable Positioning
Precision‑machined D28 hole grid ensures consistent locating accuracy for all matched jigs, clamps and locking pins. Operators can reproduce identical fixture setups repeatedly, which reduces positioning errors and keeps output quality steady for serial workshop welding projects.
High Structural Rigidity Against Deformation
High‑density cast iron main body absorbs welding stress and mechanical pressure effectively. Heavy workloads and thermal distortion will not easily bend or twist the table surface, preserving reliable flatness during continuous multi‑shift workshop operations.
Full Compatibility With D28 Series Accessories
Every hole follows universal D28 dimension standards. You can freely combine clamps, support blocks, locating pins and angle brackets from the D28 accessory ecosystem. Quick configuration changes adapt the table to diverse workpiece sizes without custom modification.
Simple Setup And Flexible Reconfiguration
No complicated pre‑adjustment is required before starting work. Operators re‑arrange fixtures in minutes to switch between small components and large metal pieces. This feature improves overall workshop throughput for mixed‑order production schedules.
Low Maintenance For Busy Workshop Use
Hard nitrided surface is easy to clean after welding work. Ordinary slag removal and surface wiping are sufficient for daily upkeep. No frequent coating or special surface protection work is needed to keep the table in usable condition.
Technical Specifications
| Parameter | Details |
|---|---|
| Hole Diameter | 28mm (D28 standard) |
| Hole Grid Pitch | 100mm × 100mm |
| Tabletop Thickness | 25mm (customizable) |
| Standard Table Sizes | 1500×1000mm, 2000×1000mm, 2400×1200mm, 3000×1500mm, 4000×2000mm |
| Base Material | Q355 steel |
| Surface Treatment | Option for nitriding treatment |
| Surface Hardness | HV600 |
| Nitriding Depth | 0.3mm effective hardened layer |
| Flatness Tolerance | ≤ 0.1mm per meter |
| Load Capacity | 1500kg/leg, 3000-6000kg total |
| Standard Working Height | 800mm (customizable) |
| Certifications | CE, ISO 9001 |
| Warranty | 1-year structural warranty |
Products Application
General steel structure welding inside metal fabrication workshops
Custom metal frame assembly and positioning tasks
Batch production of machinery spare parts and welded components
Prototyping work for new metal product samples
Repair and modification jobs for heavy metal workpieces
Multi‑process workflows combining welding, assembling and measuring
Custom metal frame assembly and positioning tasks
Batch production of machinery spare parts and welded components
Prototyping work for new metal product samples
Repair and modification jobs for heavy metal workpieces
Multi‑process workflows combining welding, assembling and measuring
Customer Feedback
Shipping and Delivery
Frequently Asked Questions
Q: What does D28 mean?
D28 refers to the 28mm diameter of the fixturing holes on the table surface. It's the standard designation for heavy-duty industrial welding tables with 28mm bore holes on a 100mm grid pattern.
D28 refers to the 28mm diameter of the fixturing holes on the table surface. It's the standard designation for heavy-duty industrial welding tables with 28mm bore holes on a 100mm grid pattern.
Q: Is the D28 table compatible with my existing fixtures?
The D28 100mm grid is an industry standard for heavy welding tables. If you currently use 28mm fixturing pins, clamps, or stops with any major brand, they will work with our table. We also sell complete D28 fixturing accessory kits if you need them.
The D28 100mm grid is an industry standard for heavy welding tables. If you currently use 28mm fixturing pins, clamps, or stops with any major brand, they will work with our table. We also sell complete D28 fixturing accessory kits if you need them.
Q: What size table should I choose?
For most structural steel shops, 2400 ×1200mm is the most versatile workhorse size. If you regularly work with extra-long beams or large assemblies, go for 3000 ×1500mm or 4000 ×2000mm. Our team can help you size based on your typical projects.
For most structural steel shops, 2400 ×1200mm is the most versatile workhorse size. If you regularly work with extra-long beams or large assemblies, go for 3000 ×1500mm or 4000 ×2000mm. Our team can help you size based on your typical projects.
Q: How does the nitrided surface hold up to heavy daily use?
Exceptionally well. The HV 900-1200 hardness means the surface is 5-10 times more wear-resistant than untreated steel. Shops running 2-3 shifts a day report the table looking and performing like new after 5+ years of use.
Exceptionally well. The HV 900-1200 hardness means the surface is 5-10 times more wear-resistant than untreated steel. Shops running 2-3 shifts a day report the table looking and performing like new after 5+ years of use.
Q: Do you have a minimum order quantity?
No MOQ for standard D28 sizes and configurations. Custom-sized tables or special modifications are subject to negotiation — contact us to discuss your requirements.
No MOQ for standard D28 sizes and configurations. Custom-sized tables or special modifications are subject to negotiation — contact us to discuss your requirements.
Q: What export documents do you provide?
We supply a complete export package, including Commercial Invoice, Packing List, Bill of Lading, Certificate of Conformity (COC), and any additional documentation required for your destination country.
We supply a complete export package, including Commercial Invoice, Packing List, Bill of Lading, Certificate of Conformity (COC), and any additional documentation required for your destination country.
Q: How do I place an order?
Reach out by email or phone for a formal quotation. Once you approve the quote, confirm with a Purchase Order (PO) and we'll schedule production immediately.
Reach out by email or phone for a formal quotation. Once you approve the quote, confirm with a Purchase Order (PO) and we'll schedule production immediately.
Q: Can we visit your factory?
Of course — you're welcome anytime! We'd love to show you our production facility, nitriding equipment, and quality control processes firsthand. Just let us know in advance and we'll arrange a full tour.
Of course — you're welcome anytime! We'd love to show you our production facility, nitriding equipment, and quality control processes firsthand. Just let us know in advance and we'll arrange a full tour.
Welcome to contact us
Looking for a reliable nitrided D28 welding table to upgrade your workshop metal welding projects? Our team is ready to answer your questions about dimension options, accessory matching and delivery arrangement. Share your workpiece size and production demands, and we can offer targeted suggestions for your workshop workflow. Get in touch with our sales team right now to get your detailed quotation.
