Durable D16 Flexible Welding Table For Steel Welding Shops
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI,CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D16
Document
Customization Capabilities:
Supports Customization/MultipleUnits Splicing
Production Capacity:
50000PCS/Year
Thickness:
12mm
Flatness:
≤0.1mm/1000mm
Working Face:
5-Sided Precision Machining
Countertop Material:
Q355 Steel/ Ht300 Cast Iron/Stainless Steel
Model NO:
D16
Verticality:
≤0.1mm/200mm
Diameter:
16mm
Highlight:
D16 flexible welding table
,steel welding shop table
,durable welding fixture table
Product Description

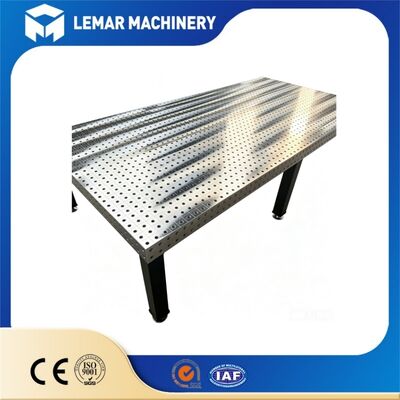

Durable D16 Flexible Welding Table For Steel Welding Shops
Product Overview
Built for day-to-day heavy workshop operations, the D16 flexible welding table delivers stable positioning for diverse metal welding tasks. This modular work platform adopts standardized D16 hole layout, allowing quick assembly with matched jigs and fixtures. Its solid base structure resists deformation under continuous loading, supporting both small-part fabrication and medium-size steel component welding. Operators can reconfigure clamping positions freely without complex modification, greatly cutting setup time for variable-batch production. Designed for long-term workshop wear, this table maintains reliable performance in high-frequency working environments.
Product Parameters
| Parameter | Specification |
|---|---|
| Grid System | D16 - 16mm holes on 50mm centers |
| Hole Tolerance | H7 (16.000 ~ 16.018mm) |
| Positioning Accuracy | ±0.05mm repeatability |
| Tabletop Material | HT300 gray cast iron |
| Tabletop Thickness | 60mm |
| Surface Treatment | Nitrided (HV ≥ 600) |
| Flatness Tolerance | ±0.1mm per m² |
| Static Load Capacity | 3,000 kg |
| Working Height | 820mm (custom available) |
| System | Material | Size(mm) | Weight(kg) |
|---|---|---|---|
| D28/D16 | HT300 cast iron/Q355 steel | 1000*1000*200/150 | 300 |
| D28/D16 | HT300 cast iron/Q355 steel | 1000*2000*200/150 | 520 |
| D28/D16 | HT300 cast iron/Q355 steel | 1200*1200*200/150 | 400 |
| D28/D16 | HT300 cast iron/Q355 steel | 1200*2400*200/150 | 800 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500*1000*200/150 | 420 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500*1500*200/150 | 600 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500*2000*200/150 | 800 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500*3000*200/150 | 1150 |
| D28/D16 | HT300 cast iron/Q355 steel | 2000*3000*200/150 | 1500 |
| D28/D16 | HT300 cast iron/Q355 steel | 2000*4000*200/150 | 2100 |
Various sizes can be customized according to customer requirements.
Product Advantages
- Flexible Modular Configuration: Standard D16 hole grid enables fast rearrangement of clamps, locating blocks and auxiliary fixtures. No special machining is required when switching workpieces, shortening fixture preparation cycles significantly.
- Excellent Anti-Deformation Performance: High-strength steel main body handles continuous welding pressure and impact. Reinforced internal rib structure avoids bending under heavy load, maintaining table flatness over long-time heavy-duty use.
- Quick-Setup Clamping System: All matching accessories fit D16 hole positions directly. Operators finish workpiece positioning and locking within minutes, lowering manual adjustment workload for repeated welding jobs.
- Anti-Spatter Wear-Resistant Surface: Special surface treatment blocks welding spatter adhesion. Users can clear residues effortlessly, reducing daily maintenance work and extending the table's service lifespan.
- Height-Adjustable Support Legs: Equipped with fine-tune support legs. Users calibrate table horizontal level easily on uneven workshop ground, ensuring consistent welding precision for every workpiece.
- Wide Compatibility With Auxiliary Parts: Fits most D16 standard jigs, locking pins and angle brackets on the market. Users expand working functions by adding accessories according to real-production requirements.
Product Applications
- Prototype Development - R&D departments, engineering labs, and new product development
- Precision Sheet Metal - Thin gauge welding, sheet metal enclosures, and electronic chassis
- Tube and Pipe Fabrication - Small diameter tubing, handrails, furniture frames, and bicycle frames
- Custom Metal Furniture - Designer furniture, artistic metalwork, and decorative pieces
- Aerospace Components - Lightweight structures, brackets, and small assembly fixtures
- Automotive Customization - Roll cages, brackets, mounts, and custom vehicle modifications
- Education and Training - Technical schools, welding training centers, and vocational programs
- Jewelry and Small Parts - Fine metalwork, small assemblies, and precision component welding
Frequently Asked Questions
- What is the main difference between D16 and D28 welding tables?
D16 tables use 16mm holes on a 50mm grid and are designed for precision work with lighter loads and smaller components. D28 tables use 28mm holes on a 100mm grid for heavy-duty fabrication with higher load capacity and stronger clamping forces. Choose D16 for detailed, small-scale work and D28 for heavy structural welding. - Can I use D16 accessories from other manufacturers on your table?
Yes. Our D16 system follows the international industry standard for hole diameter and 50mm grid spacing. It is fully compatible with D16 fixturing accessories from all major brands, so you can use your existing tooling or source components from any supplier that offers standard D16 products. - What is the maximum weight the D16 table can support?
Standard D16 tables support loads from 0.5 tons to 2 tons depending on the specific model and size. This capacity is more than sufficient for precision fabrication, sheet metal work, small assemblies, and prototype development. For heavier structural work, we recommend our D28 heavy-duty table series. - Do you offer custom sizes and configurations?
Yes. We can manufacture custom table sizes to match your specific workspace and project requirements. We also offer optional upgrades including casters for mobility, additional accessory kits, and special surface treatments. Contact our sales team with your specifications for a custom quotation. - How do I clean and maintain the D16 welding table surface?
The nitrided surface is very low maintenance. After each use, simply brush or scrape off welding spatter residue - it releases easily from the hardened surface. For extended storage periods, apply a thin coat of rust preventive oil to all machined surfaces. No special cleaners or treatments are required for regular daily use. - What warranty coverage do you provide for D16 welding tables?
We offer a 1-year warranty on the table structure and all accessories and optional components. Our technical support team is available to help with fixturing questions, setup guidance, and any issues that may arise. We also stock replacement parts for fast delivery if needed.
Contact Us
Looking for stable and cost-effective D16 flexible welding solution for your workshop? Our engineering team can offer tailored suggestions matching your real-world production conditions. Feel free to send over your workpiece sizes and load requirements. We are ready to provide detailed quotation and technical support. Get in touch with us today to boost your welding-work efficiency.
