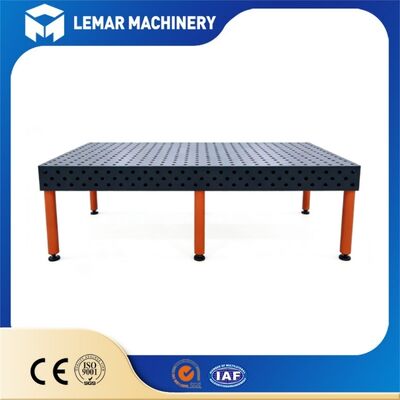

Nitrided Welding Table D28 for Large‑Scale Structural Metal Welding Operations
| MOQ: | 1 |
| Price: | 500USD-1000USD |
| Standard Packaging: | 4000mm*2000mm*200mm |
| Delivery Period: | 10-20 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI,CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Max Static Load:
12 Tons Heavy Load Bearing
Application Range:
Multi-industry Welding & Assembly
Tabletop Material:
Q355 Carbon Steel
Supporting Accessories:
Complete D28 Fixture Kit Included
Structure Design:
Spliceable Combined Structure
Hole System:
D28 Standard Grid System
Available Sizes:
Multiple Standard Stock Dimensions
Surface Treatment:
Full Deep Nitrided Finish
Flatness Feature:
High Precision CNC Milled Flatness
Highlight:
Nitrided welding table D28
,Welding fixture table for metal welding
,Large-scale structural welding table
Product Description
Nitrided Welding Table D28 for Large‑Scale Structural Metal Welding Operations
Product Overview
Our Nitrided Welding Table D28 is purpose‑built to handle demanding large‑scale structural metal welding operations. Built with extra‑thick base steel plates, this D28‑grid modular platform delivers outstanding mechanical strength for oversized and heavy structural workpieces.The professional nitrided surface treatment creates a hardened protective layer to resist welding spatter, high‑temperature erosion and mechanical abrasion. Thanks to the D28 standard hole layout, various locating pins, corner brackets and heavy‑duty clamps can be deployed rapidly without custom tooling. It meets the rigorous accuracy requirements of structural frame assembly, heavy part splicing and batch heavy metal production. Every table undergoes flatness detection and hardness testing before packing to guarantee stable long‑time running in heavy industrial workshops.
Product Advantages
-
Deep Nitrided Surface Enhances Anti‑Damage CapacityDeep nitriding treatment forms a high‑hardness surface layer. It effectively withstands burning from massive welding spatter and reduces scratch marks generated during heavy workpiece handling, greatly extending the service lifespan of the tabletop.
-
D28 Hole System Supports Extreme Heavy‑Load FixturingThe enlarged D28 hole structure matches heavy‑duty series accessories. It generates powerful locking force to firmly secure large structural metal parts, preventing workpiece shifting under strong welding thermal stress.
-
Extra‑Thick Steel Plate Resists Structural DeformationAdopting reinforced thick steel substrate, this welding table bears huge static load from heavy frames and components. It avoids plate bending even under continuous high‑intensity structural welding production cycles.
-
Maintained High Flatness for Structural Assembly PrecisionStrict flatness control limits surface deviation during operation. When assembling large metal structures, it lowers accumulated positioning error and ensures consistent dimensional accuracy of finished structural products.
-
Rapid Modular Layout Cuts Down Heavy‑Job Setup TimeOperators can rearrange D28 fixture combinations flexibly according to different structural shapes. There is no need to build temporary heavy support frames, which noticeably shortens auxiliary preparation time for large‑scale welding assignments.
-
Customizable Framework Adapts to Heavy‑Industry SitesApart from regular market sizes, we support personalized customization of table length, width and matched stand structures. It can be tailored for heavy fabrication workshops, robotic welding cells and on‑site structural processing stations.
Customer Reviews And Core Values
Application Scenarios
This Nitrided Welding Table D28 targets heavy‑duty large‑scale structural metal welding operations. It is widely used for steel frame manufacturing, heavy equipment component assembly, engineering structural part splicing, container frame fabrication, robotic heavy‑workpiece welding stations, and oversized metal prototype building. It serves heavy machinery factories, steel structure processing plants, contract heavy fabrication workshops and automated welding production facilities perfectly.
Technical Specifications
| Item | Standard Parameter |
|---|---|
| Base Material | Q355 steel |
| Surface Treatment | Five-sided full-depth integral nitriding |
| Surface Hardness | HV 550-650 |
| Hole Specification | D28 (28mm diameter), grid spacing 100±0.05mm |
| Flatness Accuracy | ≤0.1mm / 1000mm |
| Hole Center Tolerance | ±0.03mm |
| Tabletop Thickness | 25mm |
| Max Static Load | 12 tons |
| Working Surfaces | Five-sided operation (top plus four vertical sides) |
| Custom Service | Multiple standard sizes |
Export Packaging
Tabletop: The main welding table body is packed in a heavy-duty, fumigation-free solid wood plywood crate, featuring internal foam protection and reinforced corner bracing to prevent damage during ocean transit.
Fixture Kit: Components are individually wrapped in anti-rust paper and organized within a metal tool case.
Legs and Accessories: Packed in separate boxes to prevent scratching the nitrided tabletop surface during transport.
Frequently Asked Questions
Q1: What does "D28" mean?
A: D28 refers to the 28mm diameter hole system, the European industry standard for welding fixture tables. It ensures compatibility with hundreds of off-the-shelf clamping accessories.
Q2: Can this table handle heavy structural steel?
A: Absolutely. With up to 20mm thick plate and 5,000 kg load capacity, this table handles structural steel, heavy pipe, and large fabrication assemblies with ease.
Q3: How do I choose the right size?
A: Consider your typical project size plus 20-30% workspace around the parts. Most shops start with 2000×1000mm or 2000×1500mm. Not sure? Contact us and we'll help you size it right.
Q4: What's the warranty?
A: We offer a 2-year warranty on manufacturing defects. With proper care, these tables last 10+ years in daily industrial use.
Ready to Upgrade Your Fabrication Shop?
If you have inquiries about nitriding technical details, dimension customization, load capacity confirmation or accessory matching for our Nitrided Welding Table D28, feel free to get in touch with our sales team. We will deliver professional technical advice and practical solutions for your large‑scale structural metal welding operations. Request your tailored heavy‑duty welding platform solution right now.
