D16 Modular Welding System Table with 50x50mm Grid Pattern Accuracy
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T |
| Supply Capacity: | 500 unitsmonth |
D16 modular welding table 50x50mm grid
,3D welding table with grid pattern
,welding system table high accuracy

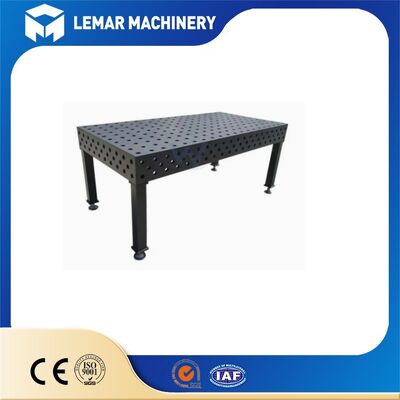

The D16 Modular Welding System Table with 50×50mm Grid Pattern Accuracy is a 5-sided modular welding platform built for precision small-to-medium part fabrication. With tightly controlled grid pattern accuracy, you can build and reconfigure fixtures within minutes for different workpieces, eliminating costly custom jigs.
Once your fixture setup is completed, you can step away for a quick break. When you return, all locating positions stay true with zero drift, and no time-consuming recalibration is required. Featuring plasma-nitrided surface treatment to resist welding spatter and wear from repeated locating-pin operation, this table fits sheet metal work, tube fabrication, prototype development and robotic welding workcells perfectly.
| Dimension Item | Specification |
|---|---|
| Tabletop Size (Standard) | 1000×800 mm / 1000×1000 mm / 1500×1000 mm / 2000×1000 mm |
| Maximum Custom Tabletop Size | 4000×2000 mm |
| Tabletop Thickness | 12 mm (optional 16 mm) |
| Hole Diameter | Φ16 mm H7 |
| Grid Pitch (Center-to-Center) | 50×50 mm |
| Grid Pattern Accuracy | ±0.03-±0.05 mm |
| Working Height (Adjustable) | 650-800 mm |
| Hole Layout | 5-sided holes (tabletop + 4 vertical sides) |
| Flatness (Standard) | ≤0.1 mm / 1000 mm |
| Flatness (0-Grade Robot Version) | ≤0.05 mm / 1000 mm |
| Verticality | ≤0.08 mm / 200 mm |
The 50×50 grid hole position accuracy of D16 welding station is ±0.03-0.05mm, which is accumulated by the entire process and cannot be achieved simply by drilling holes.
- Raw material cutting: Q355 high-strength steel plate (optional HT300 cast iron), with a standard plate thickness of 12mm
- Stress relief treatment (key): Overall annealing + artificial aging, some high-end versions do natural aging; Eliminate internal stress in steel plates, avoid warping and deformation of the table surface after long-term welding and heating, and ensure long-term stability of grid accuracy
- Rough milling: Milling flat table top and four side reference surfaces
- CNC five axis machining center: Complete drilling and reaming of the table top and four sides in one go; Drill H7 precision hinge holes with a diameter of 16mm and position them with 50mm grid coordinates to ensure grid pattern accuracy; All holes should be rounded and chamfered to prevent scratches caused by pin insertion and removal
- Shot blasting cleaning: Remove oxide scale
- Plasma gas nitriding: Surface hardening, hardness HV550-800, nitriding layer 0.3-0.5mm; anti welding slag splashing, anti arc burn, wear-resistant, long-term insertion and removal of locating pins are not easy to enlarge holes
- Precision grinding correction flatness: Level 0 accuracy ≤0.05 mm/1000 mm, Level 1 conventional ≤0.1 mm/1000 mm
- Blunt corners and deburring
- Factory full inspection: Flatness, perpendicularity, hole spacing, grid accuracy, hole tolerance, issue inspection report
- Clean up welding slag splashes after each completion, use a wire brush and oilstone to clean the countertop, and do not use an angle grinder to polish the countertop, as it will damage the nitriding hardened layer
- Regularly apply a small amount of high-temperature grease to the positioning pin and locking bolt to prevent them from getting stuck
- It is strictly prohibited to directly strike the table with an electric arc; It is recommended to spray anti splash agent during welding
- Regularly calibrate the level, ground subsidence will change the welding table level, indirectly affecting grid positioning
- Avoid placing high-temperature workpieces on the table for a long time to prevent local thermal deformation
For more information about the D16 Modular Welding System Table with 50×50mm Grid Pattern Accuracy, please submit your inquiry via our contact form. Share your required table dimension and application scenario, and we will provide you with a tailored solution and competitive offer.
