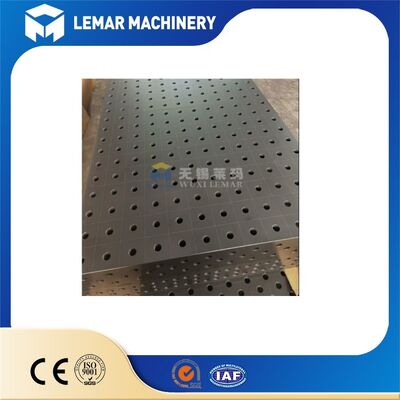

5-Sided D28 Welding Table for Multi-Angle Clamping and 3D Assembly
| MOQ: | 1 PCS |
| Price: | 500-100 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/P,L/C,D/A,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Bore Diameter:
φ28.065‑28.149 Mm
Flatness Tolerance:
0.1 mm /1000 mm
Grid Pitch:
100 ±0.05 mm
Side Perpendicularity:
0.1 mm /200 mm
Side Height:
200 mm (All Four Vertical Sides Fully Holed)
Optional Material:
Q355 Alloy Steel / HT300 High‑Strength Cast Iron
Surface Treatment:
Nitriding (HV550‑800)
Standard Dimensions:
1000×1000 ~ 4000×2000 mm, Multi‑table Splicing Available
Table Top Thickness:
25mm
Highlight:
D28 welding table for multi-angle clamping
,5-sided welding table for 3D assembly
,3D welding table with D28 dimensions
Product Description
5-Sided D28 Welding Table for Multi-Angle Clamping and 3D Assembly
Maximize your workshop flexibility with our 5‑Sided D28 Welding Table, built for multi‑angle clamping and complex 3D assembly jobs. Five‑face full hole‑grid design allows positioning and clamping from top and all four vertical sides. High‑precision DIN‑standard D28 hole system, nitrided surface and heavy‑duty body guarantee stable repeat accuracy for heavy metal fabrication. Cut down custom‑tooling cost, speed‑up set‑up time for manual weld bays and automated robotic welding stations.
Key Technical Parameters (Industry Standard)
| Item | D28 5‑Sided Welding Table |
|---|---|
| Bore Diameter | φ28.065‑28.149 mm |
| Grid Pitch | 100 ±0.05 mm |
| Flatness Tolerance | 0.1 mm /1000 mm |
| Side Perpendicularity | 0.1 mm /200 mm |
| Table Top Thickness | Approx. 25 mm with bottom reinforcing ribs |
| Side Height | 200 mm (All four vertical sides fully holed) |
| Optional Material | Q355 Alloy Steel / HT300 High‑Strength Cast Iron |
| Surface Treatment | Nitriding (HV450‑630), anti‑spatter, wear‑resistant & anti‑corrosion |
| Static Load Capacity | 5‑10 tons, 1‑2 tons per single leg |
| Standard Dimensions | 1000×1000 ~ 4800×2400 mm, multi‑table splicing available |
| Matching Bolt | M16 standard locking bolts, compatible with full set of D28 fixtures |
In-depth Details
- The standard height of the side panel is 200 mm; the sides of the D28 welding table feature a full grid of D28 holes (spaced at 100×100 mm) extending from top to bottom, rather than just a few sparse rows.
- The perpendicularity tolerance between the top surface and the four side panels is 0.1 mm / 200 mm. This specification directly determines the accuracy of 90° right-angle setups for side-mounted workpieces.
- "Five-sided hole configuration" is not merely a matter of drilling holes in the sides; the top surface and all four sides undergo unified CNC machining based on a single reference point to ensure alignment across the entire hole pattern.
- Side holes allow for the direct mounting of right-angle blocks, side clamps, and vertical extension modules. Workpieces can be mounted vertically against the side panel without the need for riser blocks, thereby eliminating cumulative errors.
Transportation and Installation
- D28 welding tables are very heavy; for instance, a 2000×1000mm unit weighs approximately 700-900 kg. Forklifts or overhead cranes are required for lifting; lifting holes are a standard feature on the tabletop.
- Export/Sea Freight: Packed in fumigation-free solid wood crates with internal foam protection for the working surface to prevent impact damage during transit.
- Installation Sequence: Position tabletop → Lift into place → Install legs → Rough leveling → Fully tighten fasteners → Verify flatness with a laser level → Install fixtures.
- Floor Requirements: For heavy-duty applications, a concrete floor thickness of ≥150 mm is recommended. For heavy-duty robotic welding stations, securing the unit to the floor with chemical anchors is recommended.
FAQ
Q: Is this D28 5‑sided welding table compatible with other brand D28 fixtures?
A: Yes, it follows DIN D28 hole‑system standard, compatible with most mainstream D28 modular fixture sets on the market.
Q: Can you offer OEM / ODM service?
A: Yes. Custom dimensions, special marking/logo are available. Minimum order applies for OEM service.
Q: What is your lead time for 5‑sided D28 welding tables?
A: For Q355 steel version: 7‑15 working days. For HT300 cast iron version: 20‑35 working days. Custom large sizes over 3000×2000mm will take extra production time.
Q: What is your payment term?
A: 30% deposit upon PI confirmation, 70% balance before shipment. Other negotiable terms available for long‑term bulk orders.
Q: Do you provide inspection report before shipment?
A: Yes. We supply dimension report, flatness & perpendicularity test record. Third‑party inspection is acceptable upon buyer's request.
Interested in our 5‑Sided D28 Welding Table for Multi‑Angle Clamping and 3D Assembly?
Share your working conditions, target dimensions and accessory needs with us. We offer complete technical support and competitive pricing. Contact us now to get your custom offer.
