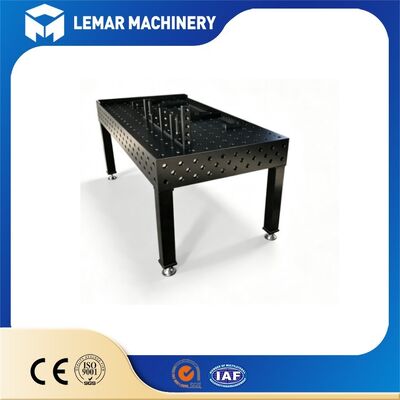

28mm Hole D28 Welding Fixture Table For Workshops
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Surface Treatment:
Plasma Nitriding
Tabletop Thickness:
25mm
Tabletop Material:
Q355/S355J2+N Carbon Steel, HT300 Grey Cast Iron
Structure Type:
3D Five-sided Hole / 2D Single-sided Hole (Optional)
Grid Spacing:
100mm × 100mm
Hole Diameter:
28mm
Brand:
Custom OEM/ODM Available
Flatness Tolerance:
≤0.03mm Per Meter
Hole Position Tolerance:
±0.02mm
Highlight:
28mm hole welding fixture table
,D28 welding table for workshops
,welding fixture table with 28mm holes
Product Description
28mm Hole D28 Welding Fixture Table For Workshops
Upgrade your workshop efficiency with our D28 28mm hole 3D flexible welding fixture table. Designed with universal 100mm grid 28mm locating holes on the top and four vertical sides, this welding bench enables fast, repeatable workpiece positioning without custom dedicated jigs.
Choose nitrided S355 steel or vibration-resistant HT300 cast iron tabletops to match your welding demands. Heavy load-bearing structure, anti-deformation reinforced ribs and heat-resistant nitriding coating cut down your rework rate and extend service life. Various support stands, clamping kits and custom dimensions are offered to fit small repair shops, large steel structure factories and automated robot welding workshops worldwide. All D28 accessories are interchangeable with international standard fixture parts.
D28 28mm Hole Welding Fixture Table Standard Size Specification
| Table Size (L×W mm) | Grid & Hole Standard | Max Uniform Load | Splicable |
|---|---|---|---|
| 1000×800 | 100×100mm Grid, 28mm 5-Sided 3D Holes | 3 Ton | Yes |
| 1200×800 | 100×100mm Grid, 28mm 5-Sided 3D Holes | 3.5 Ton | Yes |
| 1500×1000 | 100×100mm Grid, 28mm 5-Sided 3D Holes | 5 Ton | Yes |
| 2000×1000 | 100×100mm Grid, 28mm 5-Sided 3D Holes | 6 Ton | Yes |
| 3000×1500 | 100×100mm Grid, 28mm 5-Sided 3D Holes | 7 Ton | Yes |
| 4000×2000 | 100×100mm Grid, 28mm 5-Sided 3D Holes | 8 Ton | Yes |
Workshop Advantages
- Versatile, flexible positioning – No custom tooling required. Unlike traditional welding that requires welding on dedicated positioning stops, the D28 welding table features a grid of holes allowing for adjustable fixture placement. It accommodates pipes, sheet metal, frames, enclosures, and heavy machinery components, offering a significant advantage for workshops handling high-mix, low-volume production.
- 3D multi-angle welding – With 28mm holes on the top surface and all four vertical sides, workpieces can be positioned flat, upright, or at a 45° angle. This solves positioning challenges for multi-angle welding on enclosures, frames, and complex, irregularly shaped parts.
- High-temperature and spatter resistance – The nitrided surface allows weld spatter to be easily removed with a light scrape; it resists weld spatter adhesion and maintains its shape over long-term use, unlike standard steel tables that are prone to surface erosion and deformation.
- High precision to minimize welding errors – High flatness and hole-positioning accuracy ensure consistent dimensions in finished welds, reducing the need for rework and making the table suitable for automated robotic welding stations.
- Reusable with long service life – Properly nitrided carbon steel tables offer a service life of 8-12 years, while cast iron tables can last over 15 years, effectively lowering long-term production costs.
- Flexible assembly and modular expansion – Multiple tables can be joined together to accommodate large structures like vehicle frames or container components, then disassembled after the job is complete, ensuring efficient use of workshop floor space.
Support Leg Options
| Stand Type | Load Capacity | Applicable Workshop Scenarios | Features |
|---|---|---|---|
| Fixed Standard Legs | 2 Tons per set | Workshops for conventional small and medium-sized workpieces | Equipped with adjustable feet for fine-tuning level, highest cost-performance |
| Heavy-Duty Frame Legs | 5-8 Tons per set | Workshops for engineering machinery and heavy steel structures | Thickened square tube frame, overall load-bearing, ideal for large tabletop splicing |
| Hydraulic Lifting Legs | 3 Tons | Multi-process workshops with frequent switching of high and low workpieces | Lifting stroke 100-500mm, suitable for welders of different heights, for overhead/downhand welding |
| Brake Universal Casters | 1 Ton | Small processing workshops and frequently moving workstations | Overall movable, stable after locking, not suitable for heavy thick plate welding |
Standard Export Packaging
The tabletop is packed in a dedicated wooden crate with full internal foam lining; all 28mm positioning holes are fitted with protective dust covers to prevent impact damage or oxidation during transit.
Legs and casters are packed separately in individual cartons; the complete accessory kit is sorted and packaged, with a packing list included in both Chinese and English.
Delivery Lead Time & Warranty
Lead Time
- Standard-sized welding tables (1000×800 to 3000×1500): 15-20 working days
- Custom sizes, thickened tabletops, and complete accessory sets: 20-30 working days
Warranty Policy
- Tabletop body (steel plate/cast iron base, nitrided layer, hole pattern precision): 2-year warranty; free repair or replacement for deformation caused by anything other than human-induced impact
- Accessories (clamps, legs, casters, etc.): 1-year warranty
Global After-Sales Service
English digital installation manuals and calibration videos provided; remote online technical support; on-site installation, commissioning, and precision calibration by engineers available for large overseas orders.
Ready to invest in durable, high-load 28mm Hole D28 Welding Fixture Table for your factory?
Our nitrided D28 welding tables serve thousands of metalworking, machinery and robotic welding workshops worldwide. We provide free technical consultation, installation guides and long-term after-sales warranty.
Submit an inquiry right away, and our sales manager will reply with a competitive factory price and matching accessory recommendation!
