High Precision D16 3D Steel Welding Workbench Table

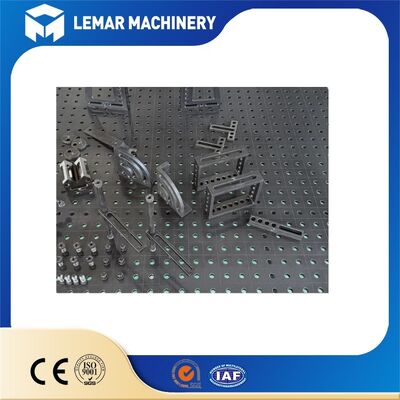

The High Precision D16 3D Steel Welding Workbench Table adopts box-type reinforced S355 steel structure with vibration stress relief treatment to avoid permanent deformation. Equipped with H7 precision machined Φ16 locating holes in 50×50mm grids on five working surfaces, it guarantees excellent flatness and repeat positioning accuracy. The nitrided surface effectively resists welding spatter and rust. Compatible with full D16 standard accessories, this 3D welding workbench allows rapid construction of flexible fixtures for precision welding, fitting laboratories, metal workshops and robotic welding stations.
Product Specifications
| Parameter | Details |
|---|---|
| Product | High Precision D16 3D Steel Welding Workbench Table |
| Raw Material | S355J2+N Steel |
| Hole Spec | Φ16 H7, 50×50mm grid, 5-sided layout |
| Surface | Nitriding treatment |
| Precision | Flatness ≤0.1mm/1000mm |
| Common Dimensions | 1000×500, 1000×1000, 1200×800, 1600×1000, 2400×1200mm |
| Load Capacity | 2t/㎡ evenly distributed load |
| Customization | Size, thickness, markings are acceptable |
Core Advantages of the 3D Structure
- Five-sided perforation (top surface + four vertical sides) - Not limited to planar welding; side holes enable vertical, inclined, and multi-angle workpiece positioning, as well as 3D clamping at any angle.
- Universal compatibility across the full range of standard modular tooling - Compatible with D16 standard accessories: locating pins, quick-locking pins, right-angle brackets, support blocks, V-blocks, quick-action clamps, and extension brackets; all accessories are fully interchangeable.
- Flexible production - one tooling set adapts to multiple products. Traditional welding requires custom-made, dedicated fixtures; the D16 welding table allows for rapid tooling setup by combining standard accessories. It is the ideal choice for high-mix, low-volume production and prototype manufacturing, significantly reducing fixture fabrication costs.
Stress-Relief Manufacturing Process
Manufacturing Steps:
Steel plate cutting → Box structure assembly and welding → Shot blasting (to relieve internal welding stresses);
Rough milling → Artificial aging (constant-temperature heat soak);
Precision CNC five-sided milling (top surface and four sides machined in a single setup to ensure perpendicularity);
Drilling and reaming (precision reaming to H7 tolerance for locating holes, not standard drilling);
Grid scale engraving and cleaning;
Nitriding heat treatment;
Final precision inspection using a Coordinate Measuring Machine (CMM).
Steel plate cutting → Box structure assembly and welding → Shot blasting (to relieve internal welding stresses);
Rough milling → Artificial aging (constant-temperature heat soak);
Precision CNC five-sided milling (top surface and four sides machined in a single setup to ensure perpendicularity);
Drilling and reaming (precision reaming to H7 tolerance for locating holes, not standard drilling);
Grid scale engraving and cleaning;
Nitriding heat treatment;
Final precision inspection using a Coordinate Measuring Machine (CMM).
Quality Note: Low-cost, inferior manufacturers skip the aging process; consequently, the work surface deforms after 3-6 months of exposure to heat and mechanical stress, rendering the flatness unusable.
After-Sales Service
We strictly control every production procedure of High Precision D16 3D Steel Welding Workbench Table and provide reliable after-sales support for global customers.
Warranty Coverage (12 months from shipment date):
• Manufacturing defects including processing errors
• Structural welding problems
• Manufacturing defects including processing errors
• Structural welding problems
Warranty Exclusions:
• Damage caused by improper operation, violent impact, overloading
• Local long-time high-temperature burning
• Unauthorized cutting or modification of the table
• Consumable clamping accessories
• Damage caused by improper operation, violent impact, overloading
• Local long-time high-temperature burning
• Unauthorized cutting or modification of the table
• Consumable clamping accessories
Upgrade your welding efficiency with the High Precision D16 3D Steel Welding Workbench Table. No more expensive custom jigs for multi-variety production. Whether you need a single table or complete fixture sets, please send an inquiry. We will reply within 24 hours with competitive factory direct prices.
