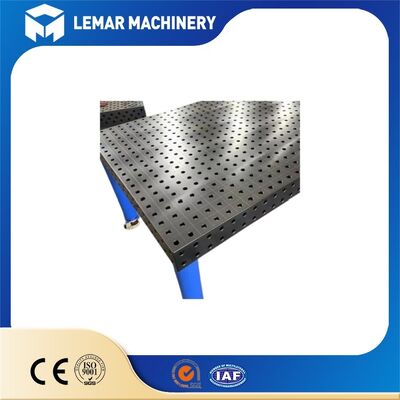

D16 Modular Welding Table with 16mm Hole System
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D16
Document
Brand:
Customizable (OEM & ODM Available)
Hole Diameter:
Φ16 Mm
Grid Pitch:
50 × 50 Mm
Structure Type:
2D Table / 3D Five-sided Hole Table
Available Material:
Q355 Steel / HT300 Cast Iron
Surface Treatment:
Gas Nitriding
Stress Relief Process:
Vibration Stress Relief / Annealing
Flatness Tolerance:
≤0.1mm / 1000mm
Hole Fit:
H7 Standard For Quick Locking Pins
Highlight:
D16 modular welding table
,16mm hole welding table
,3D welding table with holes
Product Description
D16 Modular Welding Table with 16mm Hole System
The D16 Modular Welding Table with 16mm Hole System adopts a standardized 50×50mm Φ16 hole grid for flexible workpiece positioning. Available as 2D flat or full 5-sided 3D structure, this precision welding platform supports quick assembly of modular clamps, stops and supports. Made of stress-relieved steel or cast iron with optional nitriding treatment, it suits small & medium precision welding, metal furniture, bike frames and workshop prototype jobs.
D16 Modular Welding Table Specifications
| Table Size (Length × Width) | 2D Model Option | 3D Model Option | Approx. Weight (S355 Nitrided Steel) | Approx. Weight (HT300 Cast Iron) |
|---|---|---|---|---|
| 1000 × 500 mm | Available | Available | 280 kg | 420 kg |
| 1000 × 1000 mm | Available | Available | 460 kg | 680 kg |
| 1200 × 800 mm | Available | Available | 490 kg | 730 kg |
| 1500 × 1000 mm | Available | Available | 650 kg | 960 kg |
| 2000 × 1000 mm | Available | Available | 860 kg | 1280 kg |
| 2400 × 1200 mm | Available | Available | 1120 kg | 1650 kg |
| Custom Size | Customized | Customized | Upon request | Upon request |
All sizes support customization. Contact us to get your tailored quotation for D16 modular welding table.
Core Product Advantages
- Modular, flexible production: Fixtures are fully interchangeable, eliminating the need for new tooling when switching products and significantly reducing changeover time
- High-precision positioning: Effectively controls weld misalignment and minimizes welding distortion, ensuring product consistency
- Wear-resistant and durable: Nitrided table surface resists weld spatter and prevents pitting during long-term use
- Multifunctional: Suitable not only for welding but also for assembly, inspection, marking, and grinding
- Infinitely scalable: Multiple platforms can be combined to create an extra-large working area
- Automation-ready: Perfectly integrates with robotic welding production lines
Warranty Policy
- Core Structure Warranty: 2-year warranty for the main table body (including Q355 steel/HT250 cast iron platform) against manufacturing defects in material and workmanship. This covers issues such as abnormal deformation of the tabletop, failure of hole system precision (beyond ±0.05mm tolerance), and structural cracks under normal use conditions.
- Accessories Warranty: 1-year warranty for standard D16 accessories (quick locking pins, right angle blocks, V-blocks, etc.) against defects in materials and craftsmanship.
- Exclusions: Warranty does not cover damage caused by improper use (e.g., exceeding load capacity, prolonged high-temperature exposure exceeding 450℃), accidental impact, unauthorized modification, or normal wear and tear from daily use.
Customer Feedback
FAQ
Q: What is your MOQ?
A: MOQ = 1 unit. We accept single welding table orders and bulk project orders.
Q: Can you provide CE certificate?
A: CE documents are available upon request for EU customers. We also provide material test reports and flatness inspection reports.
Q: Do you provide technical support after delivery?
A: Yes. We supply English operation manuals and setup guidance. Remote online technical support is available anytime.
Q: If some spare parts break after warranty expires, can I buy replacements?
A: Sure, we keep long-term stock of all D16 standard accessories with competitive prices.
Q: Can you quote sea freight / air freight to my destination port?
A: Yes. Please advise destination port, we can offer EXW, DDP, FOB or CIF quotation.
Cut down fixture manufacturing time and improve welding precision with the D16 Modular Welding Table with 16mm Hole System. We support standard and custom sizes, and can match full sets of interchangeable D16 clamping accessories. Contact us to receive specifications, weight data and a formal quotation for your workshop upgrade.
