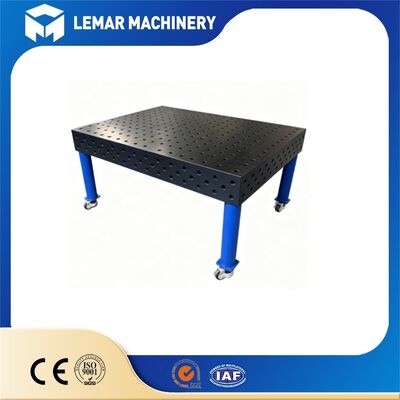

High Strength Q355 Steel D16 Modular Welding Table
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Our High Strength Q355 Steel D16 Modular Welding Table is a popular flexible 3D welding workbench for precision metal fabrication. Made of high-yield Q355 structural steel, it features Φ16 precision holes on a 50×50mm grid pitch. After strict stress relief treatment and CNC precision machining, the table maintains reliable flatness. All standard D16 modular fixtures can be freely assembled to locate various workpieces. It can be equipped with nitriding treatment to resist welding spatter and abrasion. Suitable for sheet metal, pipe parts, vehicle frames and automated robotic welding lines.
| Item | Specification |
|---|---|
| Base Material | Q355 low alloy high strength steel (Equivalent S355J2) |
| Hole Diameter | Φ16mm, Reamed hole, Tolerance D10 (16.065~16.149mm) |
| Grid Pitch | 50mm × 50mm |
| Flatness Tolerance | ≤0.1mm / 1000mm |
| Version Type | 2D (Top surface holes only) / 3D (Five-sided machined) |
| Processing Technology | Vibration stress relief + CNC precision machining |
| Available Sizes | 1000×800 ~ 4000×2000mm, custom sizes supported |
- Modular Flexible Production: A single workbench accommodates various workpieces; changeovers require only fixture adjustments. This significantly reduces tooling costs for small-batch, high-mix sheet metal welding, replacing traditional fixed welding jigs.
- High Positioning Accuracy and Consistency: Precision CNC machining ensures stable flatness and perpendicularity. Dimensional errors in batch welding are tightly controlled, making it ideal for orders requiring strict dimensional precision.
- D16 Dense Grid Advantages: A fine 50mm grid pattern offers more adjustment positions; suitable for small stainless steel parts, construction machinery components, vehicle frames, robotic welding stations, and precision sheet metal work.
- Q355 Material Advantages: Compared to cast iron welding tables: lighter weight, lower shipping costs, and resistant to edge chipping. Compared to standard carbon steel platforms: superior resistance to thermal deformation and bending under heavy loads.
- Nitrided Upgrade: Weld spatter is less likely to adhere to the surface, making cleaning easier and significantly extending service life.
- High Expandability: Multiple welding tables can be joined to expand the work surface; compatible with adjustable support legs and mobile casters; can be integrated with robotic arms to set up automated welding stations.
- Sheet metal processing and stainless steel product welding
- Components for construction machinery and agricultural equipment
- Automotive frames and structural parts for electric vehicles
- Robotic automated welding workstations
- Assembly and welding of steel structures, machine frames, and pipe supports
- Mold and equipment manufacturing; prototyping of non-standard equipment
Selection Guide: Choose D28 welding tables for heavy, thick plates and extra-large workpieces; choose D16 welding tables for small-to-medium precision workpieces, thin-walled parts, and applications requiring frequent production changeovers.
Stop wasting money on repeated custom welding jigs!
Our High Strength Q355 Steel D16 Modular Welding Table enables fast fixture rearrangement for multi-variety production.
Whether you need single table or complete welding workstation solution, feel free to send an inquiry. Our engineering team is ready to support you.
