D28 System 28 Heavy Duty 3D Welding and Clamping Table
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Hole Standard:
D28, Φ28 Mm Precision Reamed Hole
Grid Spacing:
100 Mm × 100 Mm
Machined Surfaces:
5-sided Machining (Top Surface + Four Vertical Sides)
Standard Table Height:
200mm
Table Material Option:
HT300 High Strength Cast Iron/S355J2+N Alloy Steel
Plate Thickness:
25mm
Surface Treatment:
Nitriding
Hole Center Distance Tolerance:
±0.03~±0.05 Mm, No Cumulative Error
Surface Hardness (After Nitriding):
HV550+
Product Description

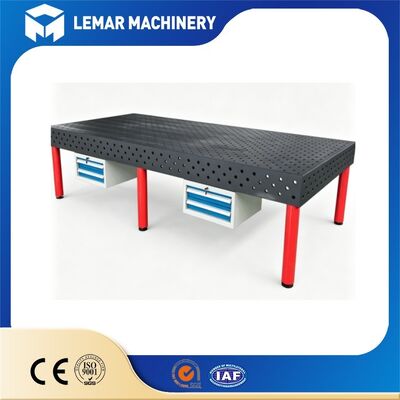

D28 System 28 Heavy Duty 3D Welding and Clamping Table
Eliminate costly custom welding jigs and boost workshop flexibility with our D28 System 28 Heavy Duty 3D Welding and Clamping Table. Following universal System28 standards with precision reamed Φ28 holes on a 100 mm grid, this five-face machining 3D clamping table delivers stable, repeatable positioning for thick plate and heavy workpieces. The full modular D28 fixture system allows rapid setup changeover between different products. Choose nitrided steel or cast iron construction for superior load capacity, anti-spatter performance and long-term geometric accuracy. Widely adopted for machinery frames, vehicle chassis, structural steel and automated robotic welding lines, this platform can be infinitely spliced to meet your large-scale fabrication demands. Product Specifications
| Item | Specification |
|---|---|
| Product Name | D28 System 28 Heavy Duty 3D Welding and Clamping Table |
| Hole System | D28 (Φ28mm precision reamed holes, D10 tolerance) |
| Standard Grid Pitch | 100 mm × 100 mm |
| Machined Surfaces | 5-sided machining (Top + Four Vertical Sides) |
| Available Overall Sizes (mm) | 1000×1000, 1200×1200, 1500×1000, 2000×1000, 2400×1200, 3000×1500, 4000×2000 Custom sizes available upon request |
| Standard Table Height | 200 mm |
Core Advantages
- Flexible and versatile, reducing investment in dedicated fixtures: One welding table and accessories can produce dozens of different workpieces; significantly reducing tooling manufacturing costs for multi-variety, small-batch factories.
- Significantly improved debugging speed: Changing products requires no remaking of fixtures; tooling reconstruction can be completed within half an hour, whereas traditional custom tooling often takes several days.
- High precision and good consistency: Hole coefficient control precision machining ensures uniform dimensions for each batch of welded workpieces, reducing welding misalignment and dimensional deviations, and adapting to robotic automated welding.
- Three-dimensional multi-angle clamping: Side openings allow for welding of workpieces in suspended, vertical, and inclined positions, solving many structural component clamping problems.
- Infinitely expandable: Multiple welding tables can be spliced to create ultra-large welding work surfaces, meeting the needs of large vehicle frames and segmented steel structure production.
Overall Structural Form
The worktable features a box-shaped reinforced welded structure (steel version) or a one-piece cast structure (cast iron version), with precision machining on all five sides (top surface + four vertical sides) and D28 standard through holes. The bottom is densely covered with longitudinal and transverse reinforcing ribs to enhance rigidity and suppress heavy loads and welding heat deformation. The standard worktable height is 200mm. A millimeter reference scale is engraved on the edge of the welding table for convenient and quick on-site measurement and positioning, eliminating the need for repeated use of a measuring tape.
Customer Feedback
Export Packaging Solution
We provide standard export-grade packaging suitable for sea and land transportation to avoid collision, moisture and rust during long-distance transit. Two packaging options are available for your selection. All fixtures, locking pins and accessories are packed separately inside wooden cases to prevent scratching the table working surface. Anti-rust protection, waterproof film and shock-absorbing padding are applied to every unit. IPPC marked wooden packages are available for shipments to most overseas ports as required by phytosanitary regulations.FAQ
Q: What industries are these D28 3D welding tables suitable for?
A: Widely used for chassis fabrication, machinery frames, structural steel, pipe processing, container frames, robotic welding cells and heavy equipment component assembly.
Q: What is your lead time?
A: Standard size tables: 15-25 working days. Custom specifications will be confirmed separately according to production schedule.
Q: Do you provide customized sizes?
A: Yes. We have standard sizes from 1000×1000mm up to 4000×2000mm. Custom length & width, side auxiliary holes and special height requirements are acceptable.
Q: Can I order only the table body without any clamping accessories?
A: Sure. Quotation can be separated: bare tabletop, support feet, full fixture kits are independent items. You can buy the platform first and purchase clamps later.
Ready to upgrade your welding fixture system with the D28 System 28 Heavy Duty 3D Welding and Clamping Table? We offer flexible sizing, material options and full accessory packages to suit manual welding and robotic welding stations. Share your detailed demands via message, and we will reply with professional technical advice and best offer without delay. Submit your inquiry today!
