Cost Effective D16 Modular System Welding Table
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D16
Document
Hole System:
D16
Grid Pitch:
50 × 50 Mm
Hole Tolerance:
H7 (Φ16.065~16.149 Mm)
Drilling Design:
5-sided Fully Drilled
Table Thickness:
100 Mm / 150 Mm Optional
Flatness:
≤0.1 Mm / 1000 Mm
Main Material:
Q355 Steel /HT300 Cast Iron
Machining Type Of Holes:
CNC Fine Boring
Nitriding Layer Depth:
0.25 – 0.35 Mm
Product Description

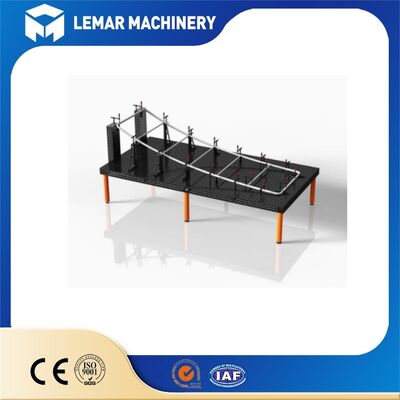

Cost Effective D16 Modular System Welding Table
Looking for a precise yet budget-friendly fixture solution for mixed batch welding? Our Cost Effective D16 Modular System Welding Table offers reliable 3D flexible positioning without overspending. Equipped with universal D16 50×50mm hole pattern and full five-sided holes, the platform supports multi-angle clamping for prototypes, cabinet fabrication and light mechanical frames. The vibration stress-relieved steel structure maintains consistent machining accuracy, while the nitrided surface resists welding spatter and daily abrasion. All standard D16 attachments are fully interchangeable, helping small and medium fabricators eliminate costly dedicated welding jigs.
Standard Size Specifications
| Table Size (Length × Width) | Table Thickness | Hole System | Surface Treatment |
|---|---|---|---|
| 1000 × 800 mm | 100 / 150 mm | D16, 50×50mm grid | Gas nitriding |
| 1200 × 800 mm | 100 / 150 mm | D16, 50×50mm grid | Gas nitriding |
| 1500 × 1000 mm | 100 / 150 mm | D16, 50×50mm grid | Gas nitriding |
| 2000 × 1000 mm | 100 / 150 mm | D16, 50×50mm grid | Gas nitriding |
| 2400 × 1200 mm | 100 / 150 mm | D16, 50×50mm grid | Gas nitriding |
| 3000 × 1500 mm | 100 / 150 mm | D16, 50×50mm grid | Gas nitriding |
| 4000 × 2000 mm | 100 / 150 mm | D16, 50×50mm grid | Gas nitriding |
| Custom Dimension | On request | D16, 50×50mm grid | Gas nitriding |
Product Advantages
- Features a 50×50 fine grid pattern with a high density of mounting points, allowing for precise micro-adjustments and offering significant advantages in the accurate assembly of sheet metal components
- The procurement cost of the complete fixture system is substantially lower than that of D28 systems welding table
- Lighter in weight than cast-iron tables of the same dimensions, making lifting and handling convenient
- Lemmar welding tables are priced significantly lower than equivalent European brands while maintaining full compatibility with standard hole systems
- Flexible tooling replaces a large number of dedicated welding jigs, reducing the customer's investment in tooling fabrication
Export Information
- Packaging: Fumigated solid wood/plywood export crates; EPE foam and edge protectors for the tabletop surface; additional wooden support blocks attached to the underside of large tabletops for load-bearing
- Shipping marks: Lifting points clearly marked; single-side lifting strictly prohibited
- HS Code reference: 8515900090 (Welding equipment accessories)
- Certification: Standard models support CE certification and ISO9001 factory accreditation; material composition reports and accuracy inspection reports are available upon request
- Lead time reference: 10-18 days for standard-sized welding tables; 18-25 days for complete sets including fixtures; 30-40 days for custom-sized units
FAQ
Q: What material and surface treatment do you use?
A: Table body: Q355 steel/HT300 cast iron with internal reinforced ribs & vibration stress relief. Standard surface treatment is gas nitriding, anti-spatter, wear-resistant and long service life. Black oxide is available as cheaper option upon request.
Q: Are support legs included in the welding table price?
A: The quotation is for welding table only by default. Casters and clamping accessories are sold separately. We can provide complete packages as your demand.
Q: Can I use my existing D16 clamps on your table?
A: Absolutely. Our D16 hole dimension follows global standard, compatible with all standard D16 modular tooling on the market.
Q: Do you accept custom sizes?
A: Yes. Besides standard dimensions listed, custom length, width and table thickness are available. Contact us to send your drawing or requirements.
Q: Can you offer CE certificate, material test report and inspection report?
A: Yes. Relevant documents can be supplied for customs clearance and project tender upon request.
