Heavy Duty D28 Welding Platform Supporting Multi-Angle Positioning Clamps
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Hole Standard:
D28, Φ28.1mm, 100×100mm Grid
Tabletop Thickness:
25mm
Material:
Q355 Steel / HT300 Cast Iron
Surface Treatment:
Deep Gas Nitriding
Structure:
5-sided Perforated / 1-sided Perforated
Flatness:
≤0.1mm/1000mm
Vertical Tolerance Of Side Faces:
≤0.05mm / 200mm
Static Even Load:
Up To 3~10 Ton/m²
Standard Working Height:
620 Mm (adjustable Upon Request)
Product Description

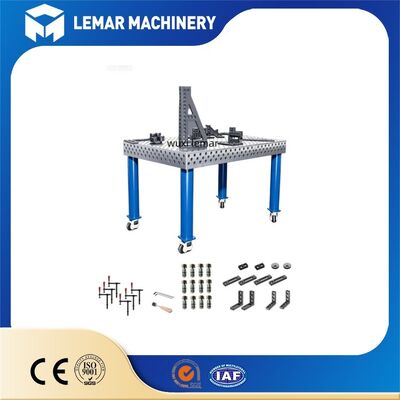

Heavy Duty D28 Welding Platform Supporting Multi-Angle Positioning Clamps
Our Heavy Duty D28 Welding Table Supporting Multi-Angle Positioning Clamps is a professional 3D flexible welding fixture platform engineered for heavy steel fabrication. Built around the universal D28 Φ28mm hole system with 100×100mm grid, this heavy-duty welding table supports full series multi-angle positioning clamps, rotary brackets and quick locking accessories. Featuring optional five-sided hole layout, it enables 3D horizontal, vertical and inclined workpiece clamping to tackle complex frames, chassis and tubular components. Stress-relieved base material paired with deep nitrided tabletop delivers outstanding rigidity, stable flatness and strong resistance against weld spatter, corrosion and abrasion. Eliminate repeated custom jig production, shorten setup time and ensure consistent welding precision for manual workshops and robotic welding stations.
Dimensional Size Chart
| Table Size (Length × Width) | Tabletop Thickness | Table Flatness | Surface Treatment |
|---|---|---|---|
| 1000 mm × 800 mm | 25mm | ≤0.1mm / 1000mm | Deep Gas Nitriding |
| 1200 mm × 800 mm | 25mm | ≤0.1mm / 1000mm | Deep Gas Nitriding |
| 1500 mm × 1000 mm | 25mm | ≤0.1mm / 1000mm | Deep Gas Nitriding |
| 2000 mm × 1000 mm | 25mm | ≤0.1mm / 1000mm | Deep Gas Nitriding |
| 2400 mm × 1200 mm | 25mm | ≤0.1mm / 1000mm | Deep Gas Nitriding |
| 3000 mm × 1500 mm | 25mm | ≤0.1mm / 1000mm | Deep Gas Nitriding |
| 4000 mm × 2000 mm | 25mm | ≤0.1mm / 1000mm | Deep Gas Nitriding |
Main Advantages
- Flexible and versatile: One welding table can handle multiple products, eliminating the need for repeated custom tooling and significantly reducing fixture costs
- Heavy-duty stability: The D28 large-hole system locking pin has strong shear resistance, suitable for welding heavy steel structures
- Stable precision: Nitriding and stress-relieving treatment prevents deformation over long-term use, ensuring consistent weld dimensions
- Quick changeover: Disassembly and assembly rely on locking pins, and tooling adjustments can be completed in minutes, suitable for multi-variety, small-batch production
- Robot compatibility: Uniform dimensional standards enable widespread use in automated robotic welding workstations
Complete Parts System
The platform features a standard D28 interface, allowing for flexible combinations to secure workpieces at any angle from 0° to 180°:
- Positioning and Support Components: Multi-angle supports, adjustable angle blocks, V-supports, height adjustment spacers, right-angle positioning blocks
- Clamping Components: Quick-action screw clamps, swivel arm clamps, universal angle hold-down clamps, side clamps
- Core Connection and Locking Components: D28 quick-locking pins (ball-lock or countersunk types); the complete tooling system enables rapid assembly and disassembly without the need for time-consuming bolting
- Extension Accessories: Positioning rulers, stop blocks, connecting pins, platform connectors
Competitive Advantages
| Other Tables | Our Welding Table |
|---|---|
| Flatness: 0.5-1.0mm Rough Surface Unstable & Inaccurate |
Flatness: ≤0.1mm CNC Machined Surface Stable & Accurate |
FAQ
Q: Can I use my existing D28 clamps and accessories on your D28 welding table?
A: Yes. Our tables follow global D28 standard dimensions. Your existing standard D28 multi-angle positioning clamps, locking pins and brackets are fully compatible.
Q: What support leg types are available?
A: Fixed standard legs, mobile legs with brake casters and hydraulic lifting bases are optional. Standard working height is 700-750 mm; customized height is acceptable.
Q: What is the load capacity of the heavy duty D28 table?
A: Uniform static load ranges from 3 to 10 tons per square meter, determined by tabletop thickness and bottom support frame. The 25mm plate version is recommended for heavy-duty fabrication.
Q: Do you accept customized sizes?
A: Yes. We support custom length, width and thickness according to customers' workshop and workpiece requirements.
Q: How long is the production lead time?
A: Standard sizes normally take 15-25 working days. For customized sizes or special requirements, we will confirm exact lead time separately.
Want to know more about the Heavy Duty D28 Welding Table Supporting Multi-Angle Positioning Clamps?
Send your inquiry today to get the latest quotation and technical drawing.
