D16 Modular Welding System Table with 16mm Diameter Hole Pattern
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |

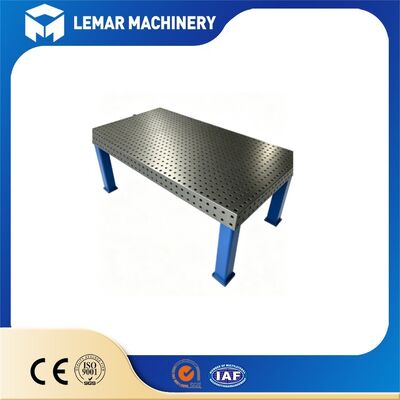

The D16 Modular Welding System Table with 16mm diameter hole pattern is a high-precision flexible fixturing platform engineered for modern welding and assembly production. Built around a standard 50×50mm grid paired with Φ16mm precision locating holes, this modular welding table supports free layout of all matched D16 clamping accessories, enabling fast setup, flexible positioning and repeated use.
Available in 2D single-sided and 3D five-sided configurations, it serves light and medium-duty precision fabrication, sheet metal processing, tubular frame welding, prototype development and robotic welding stations. Thanks to reliable flatness, excellent surface wear resistance and full modular compatibility, it effectively replaces custom dedicated jigs and greatly cuts down fixture manufacturing costs and product changeover time.
| Table Size (L × W) | Working Height Options | Plate Structure | Available Type |
|---|---|---|---|
| 1000 × 800 mm | 100 mm / 150 mm / 200 mm | Welded Steel / Cast Iron | 2D / 3D |
| 1200 × 800 mm | 100 mm / 150 mm / 200 mm | Welded Steel / Cast Iron | 2D / 3D |
| 1200 × 1200 mm | 100 mm / 150 mm / 200 mm | Welded Steel / Cast Iron | 2D / 3D |
| 1500 × 1000 mm | 100 mm / 150 mm / 200 mm | Welded Steel / Cast Iron | 2D / 3D |
| 2000 × 1000 mm | 100 mm / 150 mm / 200 mm | Welded Steel / Cast Iron | 2D / 3D |
| 2400 × 1200 mm | 100 mm / 150 mm / 200 mm | Welded Steel / Cast Iron | 2D / 3D |
| 3000 × 1500 mm | 100 mm / 150 mm / 200 mm | Welded Steel / Cast Iron | 2D / 3D |
Compared to the D28 (ø28mm, 100mm grid, heavy-duty) system welding table, the D16 welding table features a finer grid pattern, offering greater flexibility for precise adjustments.
Suitable for:
- Thin sheet metal, small-scale frames, tubular structures, and aluminum alloy welding
- Precision non-standard components, prototype fabrication, and high-mix, low-volume production
- Robotic welding workstations and bases for automated welding fixtures
- Furniture hardware, small components for construction machinery, electric vehicle parts, and stainless steel products
Not suitable for: Extra-thick/heavy steel structures or extremely heavy workpieces (the D28 system is recommended for these applications).
Gas Nitriding (Standard on high-end models; the top choice for export)
- Hardened layer depth: 0.25-0.35 mm
- Surface hardness: HV450-630
- Characteristics:
- Weld spatter does not adhere easily, making cleanup effortless
- Wear-resistant, rust-resistant, and resistant to minor impacts
- Does not alter the dimensions of the welding table; the nitriding process is applied after machining, ensuring precision remains intact
- Flexible and versatile: A single welding table system replaces dozens of dedicated welding fixtures, significantly reducing fixture design and manufacturing costs.
- Rapid changeover: Switching products requires only rearranging clamps rather than fabricating new fixtures, thereby shortening changeover times.
- Stable, repeatable positioning accuracy ensures dimensional consistency across batch production.
- A dense 50mm grid offers greater flexibility for fine-tuning positioning points compared to the D28 system welding table, making it ideal for small, precision components.
- Can be integrated with robots and positioners to construct automated welding cells.
