Industrial D28 Modular Welding Fixture Table with Nitrided Surface
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Hole Standard:
D28 System, Φ28mm Locating Holes, 100×100mm Grid Pitch
Hole Tolerance:
D10 (+0.065 ~ +0.149 Mm)
Raw Material:
Q355 Steel /HT 300 Cast Iron
Surface Treatment:
Gas Nitriding
Effective Hardened Layer:
0.25–0.35 Mm
Surface Hardness:
HV 550–700
Flatness Accuracy:
≤0.1 Mm/m
Splicing Height Difference:
≤0.05mm When Multiple Tables Connected
Tabletop Thickness:
25mm
Product Description

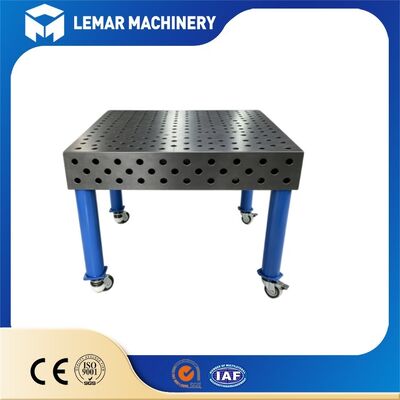

Industrial D28 Modular Welding Fixture Table with Nitrided Surface
Meet the Industrial D28 Modular Welding Fixture Table with Nitrided Surface—a robust, high-precision 3D flexible welding solution built for modern metal fabrication factories. Adopting internationally recognized D28 hole system specification, the worktable uses S355 low alloy steel or ductile iron substrate with complete stress relief processing to avoid deformation during long-term use.The core advantage lies in professional nitrided surface treatment: nitrogen penetrates into the metal base to create a hard wear-resistant layer, greatly lowering spatter cleaning workload and extending service life. Five-sided machining enables three-dimensional multi-angle clamping, while multiple tables can be spliced to form extra-large working surfaces.
Fully interchangeable D28 modular fixtures allow fast production changeover for multi-variety batch production. Widely trusted by manufacturers of construction machinery, vehicles, rail components and steel frames, this nitrided welding fixture table provides stable, low-maintenance performance for both manual and automated welding workflows.
Product Specifications
| Item | Technical Parameters |
|---|---|
| Product Name | Industrial D28 Modular Welding Fixture Table with Nitrided Surface |
| Standard Hole System | D28, Φ28 mm locating holes, 100 × 100 mm grid pitch |
| Hole Tolerance | D10 (+0.065 ~ +0.149 mm) |
| Material Option 1 | Q355 Low Alloy Steel (Mainstream Export Version) |
| Material Option 2 | HT300 Cast Iron (High-precision Robotic Welding Version) |
| Surface Treatment | Plasma/Gas Nitriding; Hard diffusion layer 0.25-0.35 mm, HV 550-700 |
| Flatness Accuracy | ≤0.1 mm/m |
| Machining Form | 5-sided machined holes (Top + Four Side Faces) |
| Uniform Distributed Load | 5-10 T/㎡ |
Core Product Advantages
- Highly Modular, Flexible Production: Equipped with a universal D28 standard kit including locating pins, quick clamps, angle blocks, supports, and extensions. A single platform can quickly switch between various workpiece tooling, making it ideal for small-batch, multi-variety production while saving significant custom fixture costs.
- High Repeatability Positioning Accuracy: High dimensional consistency after tooling disassembly and reassembly, suitable for batch welding and robotic automated welding stations.
- Heavy-Duty Stability: The D28 hole system welding table has a clamping force far greater than D16 welding tables, suitable for vehicle frames, construction machinery, steel structures, housings, and heavy-duty frames.
- Low Maintenance Costs: The nitrided table surface does not require frequent repainting; simple slag removal is all that's needed, resulting in lower overall long-term costs.
Standard Optional Configuration
- Standard Sizes (Customizable): 1000×800 / 1200×1200 / 1500×1000 / 2000×1000 / 2400×1200 / 3000×1500 / 4000×2000 mm
- Support Frame: Fixed legs / Height-adjustable legs / Casters with brakes
- Accessories: Basic clamp kit, diagonal supports, angle positioning components, locking pins, quick clamps
- Certification: CE (Required for export to the EU)
Packaging Standard
All Industrial D28 Modular Welding Fixture Tables with Nitrided Surface adopt export-grade protective packaging to avoid scratches, deformation and moisture damage during long-distance sea/land transport.
- Working surface covered with anti-rust paper + stretch film to protect the nitrided layer
- Reinforced plywood wooden case (fumigation-free, meets international shipping standards)
- Thick support timbers at stress points for lifting and loading
- Separated packaging for tabletop, support frame and accessories to prevent collision
- Waterproof plastic bag inside the wooden box for ocean shipment
Note: Large-size tables over 2400mm can be packed in bulk without wooden case according to customer requirements to save freight cost (customer takes responsibility for surface risk).
If you are looking for a reliable Industrial D28 Modular Welding Fixture Table with Nitrided Surface, feel free to send your inquiry. Share your required dimensions, load demands and accessory needs, and we will provide you with a tailored quotation and professional technical proposal promptly.
