D16 Industrial Welding Table with Quick Change Fixtures
| MOQ: | 500-1500 USD |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |

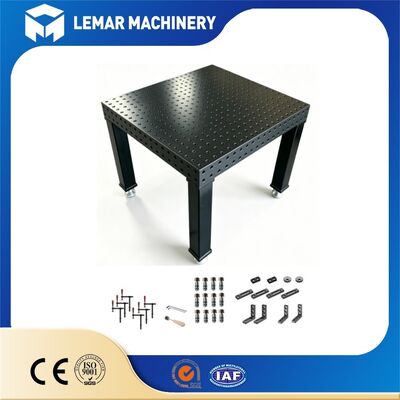

Upgrade your fabrication efficiency with the D16 Industrial Welding Table with Quick Change Fixtures. Unlike conventional bolted welding platforms, this 3D flexible welding system comes complete with quick release fixture modules to eliminate time-consuming bolt tightening during product changeovers.
The dense D16 Φ16mm / 50×50mm grid offers abundant positioning points for compact and complex workpieces. Available in high-grade S355 steel or HT300 cast iron construction with gas nitriding finish, the welding table retains tight flatness and positioning accuracy.
Widely adopted in prototype workshops, batch production lines and robotic welding cells, it removes the need for expensive custom single-use jigs and improves overall workshop productivity.
| Table Size (L × W) | Standard Height | Support Legs Qty | Max Uniform Load |
|---|---|---|---|
| 1000 × 800 mm | 620 mm | 4 pcs | 1600 kg |
| 1200 × 800 mm | 620 mm | 4 pcs | 1800 kg |
| 1500 × 1000 mm | 620 mm | 4 pcs | 2000 kg |
| 2000 × 1000 mm | 620 mm | 6 pcs | 2500 kg |
| 2400 × 1200 mm | 620 mm | 6 pcs | 3000 kg |
| 3000 × 1500 mm | 620 mm | 8 pcs | 3800 kg |
| 4000 × 2000 mm | 620 mm | 8-10 pcs | 5000 kg |
- Positioning hole diameter: Φ16 H7 (16.065～16.149 mm)
- Grid spacing: 50 mm × 50 mm, tolerance ±0.05 mm
- Five-hole layout: D16 holes evenly distributed on the top surface and four side walls; the side walls typically have two rows of positioning holes
- Flatness grade:
- Standard industrial grade: ≤0.1 mm / 1000 mm
- Robot precision welding grade: ≤0.05 mm / 1000 mm
- Perpendicularity: Side and worktable surface ≤0.05 mm / 200 mm
- Worktable markings: X/Y axis millimeter scale, grid markings, facilitating rapid layout without drawings
- 50×50 fine mesh, providing ample room for fine-tuning of small parts, sheet metal, and pipes
- Quick-change fixtures significantly reduce changeover time for various product types
- Three-dimensional five-sided clamping, enabling multi-angle positioning of irregularly shaped workpieces
- Modular universal tooling, eliminating the need for continuous investment in customized fixtures
- The D16 modular welding station is compatible with small robot welding, R&D prototyping, and small-batch flexible production lines
- Nitrided table surface resists weld slag and is easy to clean
