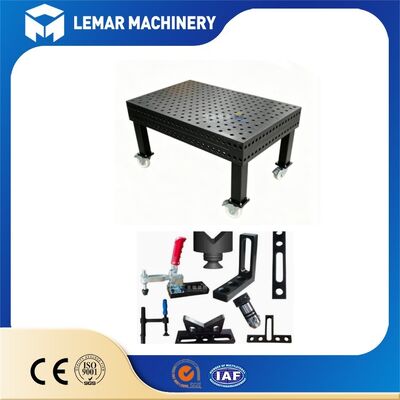

D16 Welding Table with 0.1mm Per Meter Flatness for Precision Work
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Engineered for precision work, our D16 Welding Table with 0.1mm Per Meter Flatness offers industry-grade surface flatness ≤0.1 mm per meter under standard ambient inspection. Adopting System 16 specification (Φ16 holes, 50×50mm grid), this modular 3D flexible welding table undergoes thorough stress relief processing to minimise inherent material deformation.
The multi-sided machined working faces support complex part positioning, perfectly matching automated robot welding lines and precision assembly tasks. Nitrided surface treatment extends service life by resisting heat and welding spatter. Universal compatibility with standard D16 tooling greatly improves production flexibility for precision metal manufacturers.
| Table Size (L × W) | Material Options | Surface Treatment Options |
|---|---|---|
| 1000 × 800 | S355 Steel / HT300 Cast Iron | Nitriding / Black Oxide |
| 1200 × 800 | S355 Steel / HT300 Cast Iron | Nitriding / Black Oxide |
| 1600 × 1000 | S355 Steel / HT300 Cast Iron | Nitriding / Black Oxide |
| 2000 × 1000 | S355 Steel / HT300 Cast Iron | Nitriding / Black Oxide |
| 2400 × 1200 | S355 Steel / HT300 Cast Iron | Nitriding / Black Oxide |
| 3000 × 1500 | S355 Steel / HT300 Cast Iron | Nitriding / Black Oxide |
| 4000 × 2000 | S355 Steel / HT300 Cast Iron | Nitriding / Black Oxide |
- Flatness: ≤0.1 mm per meter (measured under normal ambient temperature)
- Hole standard: Φ16 mm holes, 50×50 mm grid pitch (System16)
- Working height can be customized from 750 mm to 950 mm
- Precision levelling feet included for all models
- Custom sizes are available upon request
- Ultra-high datum flatness (0.1mm/m): Prevents workpiece warping during assembly and dimensional deviation after welding, ensuring consistency in batch products and adapting to robotic automated welding.
- D16 50mm dense grid: Compared to D28 (100mm grid) welding table, it offers more adjustment points, suitable for fine-tuning and clamping of small sheet metal parts, thin-walled parts, and irregularly shaped precision workpieces.
- Universal interchangeability of all fixtures: Positioning pins, right-angle parts, clamping clamps, and support blocks all use the globally standardized System16, eliminating the need for customized tooling.
- Multiple working surfaces (3D structure): The table and all four sides have system holes, enabling multi-angle 3D positioning and replacing many dedicated welding fixtures.
- Stress-relief process: After rough machining, shot blasting treatment ensures long-term durability and prevents deformation, maintaining accuracy for a longer period.
- Robotic automated welding workstations
- Precision sheet metal, stainless steel enclosures, and medical device frames
- Frames for automation equipment and instrument bases
- New energy components; lightweight motorcycle and racing frames
- Precision assembly of tooling and inspection fixtures; prototype development
- Ultra-heavy steel structures and heavy-duty large-scale construction machinery (D28 welding tables recommended)
| Item | This D16 Precision Welding Table (0.1mm/m) | Economy Standard Welding Table |
|---|---|---|
| Surface Flatness | 0.1 mm per meter | 0.2 ~ 0.3 mm per meter |
| Machining Process | CNC Finish Milling + Precision Grinding | Conventional Milling |
| Application Scenarios | Mass precision parts production, robotic welding | General sporadic welding, non-tolerance-critical workpieces |
| Price Level | Higher | Economical |
All flatness data is tested under normal ambient temperature. Choose the precision-grade D16 welding table if strict dimensional consistency and low rework rate are required.
Ready to upgrade your precision welding workstation? Our D16 Welding Table with 0.1mm Per Meter Flatness for Precision Work delivers stable flatness and excellent versatility for tight-tolerance manufacturing.
Contact us now to receive detailed specifications, pricing and lead time information. We are waiting for your inquiry!
