D28 Modular Welding Table with 28mm Grid and Strong Bracing
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,T/T,Western Union,D/P |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
System Standard:
D28 Standard Φ28mm Hole System
Grid Pitch:
100×100 Mm
Hole Tolerance:
D10
Tabletop Flatness:
≤0.1mm/m
Available Material:
Q355 Steel / HT250 / HT300 Cast Iron
Tabletop Thickness:
25mm
Working Surfaces:
5-sided Perforated (Top + Four Side Walls)
Nitrided Surface Hardness:
HV550+
Leveling Adjustment Range:
±50 Mm
Product Description

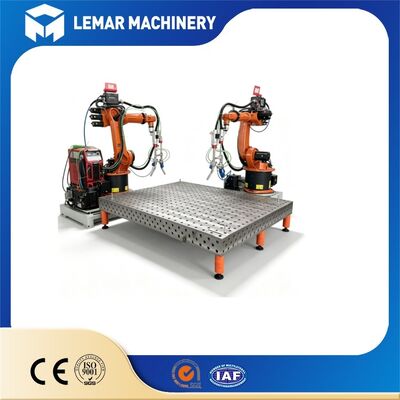

D28 Modular Welding Table with 28mm Grid and Strong Bracing
Upgrade your workshop efficiency with the D28 Modular Welding Table with 28mm Grid and Strong Bracing. This heavy-duty 3D welding platform adopts a reinforced box structure with robust strong bracing to maintain consistent flatness over years of intensive production. Built around the widely accepted Φ28mm 100×100mm grid system, it supports complete three-dimensional clamping on five working surfaces. Mix and match standard D28 positioning clamps, supports and stops to accommodate constantly changing workpieces, drastically slashing your jig manufacturing costs. The wear-resistant nitrided surface repels welding spatter and resists scratches, making it a cost-effective long-term solution for chassis, machinery frames and steel structure manufacturers.
Product Specifications
| Model System | D28 Standard 3D Modular Welding Table |
| Hole Diameter | Φ28 mm (D10 tolerance) |
| Grid Pitch | 100 × 100 mm |
| Hole Position Accuracy | ±0.05 mm |
| Working Surfaces | 5-sided (top + 4 side walls), fully perforated |
| Tabletop Flatness | ≤ 0.1 mm / 1000 mm (Grade 1) |
| Side Wall Verticality | ≤ 0.1 mm / 200 mm |
| Surface Roughness | Ra 3.2 |
| Tabletop Thickness | 24 - 27 mm |
| Side Wall Height | 200 mm (250 mm optional) |
| Tabletop Material Options | S355J2+N / Q355 Steel; HT250 / HT300 Cast Iron |
Core Functions and Advantages
- Flexible Modular Tooling System - Equipped with a complete set of standard accessories (locating pins, quick clamps, angle blocks, supports, and extension supports), tooling can be quickly switched between different workpieces, significantly reducing tooling manufacturing costs for small-batch, multi-variety production.
- Three-Dimensional Clamping - D28 holes are evenly distributed on the top surface and four side walls, enabling horizontal, vertical, and 45° multi-angle fixation, suitable for frames, trusses, and engineering machinery structural components.
- Heavy-Duty Positioning Stability - Compared to the smaller D16 system welding table, the D28 welding table bolts and locating pins have a larger cross-sectional area, resulting in stronger clamping force, and are specifically designed for large and medium-sized heavy steel structures.
- Unlimited Assembly Capability - Multiple platforms can be combined using connecting pins to form an ultra-large welding working surface.
Strengthened Support System
- Box-shaped cavity structure at the bottom of the tabletop: Not a single-layer steel plate, but a closed box structure with densely welded longitudinal and transverse reinforcing ribs, and localized triangular reinforcement; preventing surface denting under heavy loads and permanent warping caused by long-term high-temperature welding.
- Reinforced leg connection nodes: Thickened triangular connecting plates are added at the joints between the legs and the base plate to distribute the load and eliminate table wobbling and resonance.
- Rigidity brings two major practical benefits:
- Welding and grinding vibrations are significantly suppressed, workpiece positioning is not subject to slight slippage, and dimensional consistency is higher
- Resistance to welding thermal stress deformation, slower flatness decay over long-term use, and extended platform accuracy lifespan
Warranty Policy
We provide 12-month warranty for all D28 modular welding tables starting from the date of shipment. The warranty covers manufacturing defects in structure, machining accuracy and processing. Warranty excludes damage caused by improper operation, overload impact, high-temperature cutting, man-made collision, normal wear of working surface and accessories.
