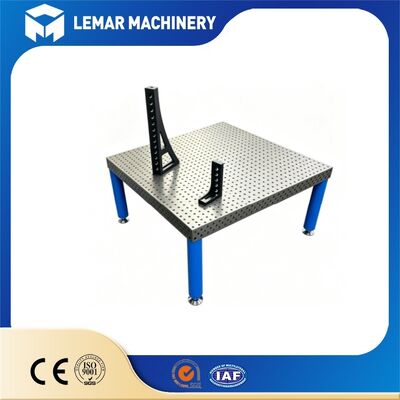

Modular D16 Welding Table Dystem for Industrial Manufacturing Shops
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D16
Document
Hole Spec:
Φ16 Mm Locating Holes, 50×50 Mm Grid Pitch
Standard Flatness:
≤0.1 Mm/m
Table Thickness:
12mm
Structure Type:
2D (Top Only) / 3D Five-sided Drilled
Surface Treatment:
Nitriding
Uniform Load Capacity:
2.0 ~ 3.0 Ton/㎡
Available Material:
HT300 Cast Iron /Q355 Steel Part
Surface Hardness:
HV550-100
Working Temperature Resistance On Surface:
Short-term ≤350℃
Product Description
Modular D16 Welding Table System for Industrial Manufacturing Shops
Our Modular D16 Welding Table System for Industrial Manufacturing Shops serves as an all-in-one flexible workholding system designed for fabrication, welding and assembly workshops. Equipped with precisely machined Φ16mm locating holes arranged in a 50×50mm grid, the platform can be freely combined with a full range of standard modular attachments. Whether used for manual welding stations or integrated robotic welding cells, it provides reliable positioning accuracy and outstanding adaptability for light to medium structural workpieces.
- CNC precision machining of the mesh ensures controllable dimensional deviations in batch welding products, reducing post-weld correction and rework
- Multiple platforms can be spliced horizontally and vertically, freely expanding the work area; additional accessories can be purchased later
- One set of tooling accessories can serve dozens of workpieces, significantly reducing the material consumption and warehousing pressure of custom jigs
- Holes on all five working surfaces allow for multi-angle clamping in space, suitable for welding irregularly shaped frames, racks, and boxes
Standard Tabletop Size Specifications
| Table Dimension (L × W) | 3D / 2D Option | Table Thickness | Common Application Scenarios |
|---|---|---|---|
| 1000 × 800 mm | 2D / 3D | 12 mm | Sample workshop, small parts, prototyping |
| 1000 × 1000 mm | 2D / 3D | 12 mm | Sample workshop, small parts, prototyping |
| 1200 × 800 mm | 2D / 3D | 15 mm | Sheet metal, small tubular frames |
| 1500 × 1000 mm | 2D / 3D | 15 mm | General fabrication, manual welding station |
| 2000 × 1000 mm | 2D / 3D | 18 mm | Medium frame assembly, robotic cell base |
| 2400 × 1200 mm | 2D / 3D | 20 mm | Large frame parts, multi-workstation splicing |
| 3000 × 1500 mm | 2D / 3D | 12 mm | Sample workshop, small parts, prototyping |
| 4000 × 200 mm | 2D / 3D | 12 mm | Sample workshop, small parts, prototyping |
| Custom size | 2D / 3D | 12 mm | Special production requirements |
Lifespan & Maintenance
Usage Recommendations: Avoid prolonged direct arc welding on the worktable; anti-spatter spray is recommended to protect the work surface; avoid impact from falling heavy objects.
Routine Maintenance: Clean welding slag with a wire brush; do not grind the work surface with a large abrasive wheel to prevent damage to the nitrided hardened layer and flatness accuracy; regularly check the level of the feet.
Service Life under Normal Working Conditions: A properly nitrided welding table can maintain its reference accuracy for 8-12 years of stable use.
Competitor Comparison
| Other Table Flatness: 0.5-1.0mm Rough Surface Unstable & Inaccurate |
Our Welding Table Flatness: ≤0.1mm CNC Machined Surface Stable & Accurate |
|---|
Fault Symptoms and Causes
- Locating pin wobbling: Insufficient hole machining accuracy / long-term wear
- Workpiece shifting after clamping: Uneven table surface, loose feet
- Dense pitting on the table surface: Prolonged direct arcing, damage to the nitriding layer
FAQ
Q: What is the flatness tolerance of your D16 welding table?
A: Standard flatness ≤0.1 mm/m. Precision grade ≤0.05 mm/m is available on request. Every table comes with factory inspection report.
Q: Are all your modular accessories fully interchangeable?
A: Yes. Locating pins, angle blocks, clamps and supports follow unified D16 standards. Attachments can be freely reused, added or upgraded later.
Q: What warranty do you offer?
A: 12-24 months warranty for the tabletop frame. Clamps, pins and other wearing parts carry 6-12 months warranty. Damage caused by improper operation is excluded.
Q: What packaging do you use for sea export?
A: Standard export fumigated wooden case or steel frame packaging. Accessories are packed separately to prevent loss during long ocean transit.
Q: Is anti-spatter coating necessary to use on the tabletop?
A: Not mandatory, but highly recommended. Anti-spatter liquid reduces slag adhesion, makes daily cleaning easier and protects the nitrided surface.
Cut down custom jig costs and shorten workpiece setup time with the Modular D16 Welding Table System for Industrial Manufacturing Shops. We offer welded steel and cast iron tabletops, 2D / 3D structural choices and full sets of interchangeable clamping components.
Tell us your working range, load requirements and application scenarios (manual operation or robotic welding). We can tailor the most cost-effective configuration for your manufacturing shop. Get in touch and request your exclusive quotation immediately!
