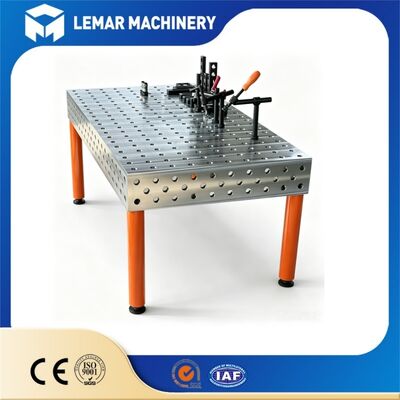

Heavy Duty D28 Modular Industrial Precision Welding Fixture Platform
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
The Heavy Duty D28 Modular Industrial Precision Welding Fixture Platform is a next-generation solution designed for high-precision, high-load welding operations in demanding industrial environments. Engineered with a standardized 28mm diameter hole system (D28 series), this modular platform offers exceptional rigidity, repeatability, and flexibility. Whether you are welding automotive frames, construction machinery components, or heavy steel structures, the D28 platform ensures every weld is executed with micron-level accuracy.
Built from high-strength ductile iron and precision-machined surfaces, the D28 platform provides a stable and durable foundation that minimizes vibration and thermal distortion. Its modular design allows for rapid reconfiguration, making it an ideal choice for both prototyping and mass production lines.
| Parameter | Specification |
|---|---|
| Grid System | D28 – 28mm holes on 100mm centers |
| Hole Tolerance | H7 precision |
| Tabletop Material | HT300 gray cast iron / Q355 steel |
| Tabletop Thickness | 100mm |
| Surface Treatment | Nitrided (HV ≥ 600) |
| Flatness Tolerance | ±0.1mm per m² |
| Static Load Capacity | 5,000 kg per table |
| Standard Sizes | 1500×1000, 2000×1000, 3000×1500mm |
| Leg Height | 850mm (custom heights available) |
| Leg Construction | 80×80mm square tube, 5mm wall |
| Leveling Feet | M24 threaded, 50mm pad |
| System | Material | Size(mm) | Weight(kg) |
|---|---|---|---|
| D28/D16 | HT300 cast iron/Q355 steel | 1000*1000*200/150 | 300 |
| D28/D16 | HT300 cast iron/Q355 steel | 1000*2000*200/150 | 520 |
| D28/D16 | HT300 cast iron/Q355 steel | 1200*1200*200/150 | 400 |
| D28/D16 | HT300 cast iron/Q355 steel | 1200*2400*200/150 | 800 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500*1000*200/150 | 420 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500*1500*200/150 | 600 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500*2000*200/150 | 800 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500*3000*200/150 | 1150 |
| D28/D16 | HT300 cast iron/Q355 steel | 2000*3000*200/150 | 1500 |
| D28/D16 | HT300 cast iron/Q355 steel | 2000*4000*200/150 | 2100 |
-
-
Exceptional Precision
Manufactured with high-precision boring and milling processes, ensuring hole positioning accuracy of ±0.02 mm, guaranteeing repeatable welding results. -
Heavy Load Capacity
With a static load capacity of up to 5 tons per square meter, the D28 platform is designed to handle the heaviest workpieces without deformation. -
Superior Stability
The ductile iron construction absorbs welding vibration and thermal stress, maintaining flatness even under continuous high-heat operations. -
Modular and Flexible
The standardized D28 hole grid allows for infinite fixture combinations using our comprehensive accessory range. Reconfigure in minutes for different workpiece geometries. -
Long Service Life
Hardened surfaces and anti-corrosion treatment ensure durability in harsh workshop environments, reducing maintenance costs and downtime. -
Cost-Effective
Eliminates the need for custom jigs for every new project. One platform supports thousands of welding setups, drastically reducing tooling expenses.
-
-
Automotive Manufacturing – Chassis frames, suspension arms, and subframe welding.
-
Construction Machinery – Excavator booms, loader brackets, and bulldozer structures.
-
Railway and Transportation – Bogie frames, railway car body components.
-
Shipbuilding and Offshore – Steel deck sections, pipe supports, and structural assemblies.
-
Aerospace – Landing gear components and structural weldments (with precision variants).
-
General Steel Fabrication – Large steel structures, pipe racks, and industrial equipment frames.
1. What’s the difference between D28 and D16/D22?
D28 uses 28mm holes with 100×100mm grid. Designed for heavy-duty welding – higher load capacity (5 tons/m²) and better rigidity for thick plates and large workpieces.
2. Can you customize non-standard sizes or hole patterns?
Yes. Custom table sizes, hole layouts, and surface treatments are available. Send your drawings or specs, and our engineering team will design accordingly.
3. What accessories are compatible?
Full range of D28-standard accessories: clamps, V-blocks, supports, locating pins, angle plates, and adjustable brackets. All interchangeable with no special tools required.
4. How to maintain flatness over long-term use?
Stress-relieved ductile iron with HB 180–220 hardness. Keep clean, avoid local overloading. Re-machining service is available to restore precision if needed.
5. What is lead time and packaging?
Standard lead time: 15–30 working days. Packed in heavy wooden crates with anti-rust oil, VCI paper, and foam padding. Sea/air/courier shipping with full customs documentation.
6. Do you provide installation and after-sales support?
Yes – remote video guidance, online technical support, and on-site service (on request). 12-month warranty and fast reordering based on purchase history.
