D28 3000x1500mm Welding Table for Large Fabrication Workshops
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Hole Spec:
D28 (Φ28mm), 100mm Hole Pitch
Working Size:
3000*1500mm
Structure:
Integrated Reinforced Box Body
Top Plate Thickness:
25mm
Body Thickness:
200mm
Machining:
5-sided Full Hole Machining
Flatness:
≤0.1mm/1000mm
Side Verticality:
≤0.1mm/200mm
Leveling Leg Adjustment Range:
±50mm
Highlight:
D28 welding table for large workshops
,3000x1500mm welding fabrication table
,3D welding table for fabrication
Product Description

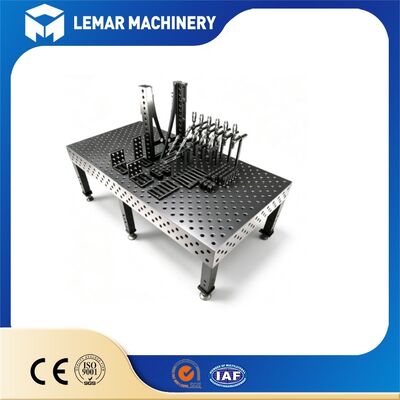

Our D28 3000x1500mm Welding Table for Large Fabrication Workshops is a premium heavy-duty 3D flexible welding platform designed for factories producing oversized steel fabrications, heavy equipment frames and vehicle chassis. Equipped with standard D28 100mm pitch hole system and five-sided fully machined clamping holes, this 3000×1500 welding table allows multi-angle 3D fixing for all kinds of large workpieces without custom welding jigs.
The integral box structure and plasma nitrided working surface guarantee outstanding load capacity, anti-wear performance and long-lasting flatness, ideal for daily heavy-duty use in large fabrication workshops, robotic welding cells and batch metal fabrication production lines. Whether you need a single standalone welding bench or multiple spliced tables for ultra-large components, our D28 3000x1500mm welding table provides reliable, cost-effective precision positioning for all heavy metal welding tasks.
Technical Specifications
| Item | Specification Parameter |
|---|---|
| Overall Working Size | 3000mm (Length) × 1500mm (Width) |
| Hole Standard | D28, Φ28mm positioning holes |
| Hole Pitch | 100mm standard grid spacing |
| Table Body Thickness | 200mm integrated box structure |
| Top Plate Thickness | 25mm thickened steel plate |
| Machining Surface | 5-sided fully machined (top + 4 vertical sides) |
| Surface Treatment | Plasma nitriding anti-spatter finish |
| Static Bearing Capacity | 5 tons total, 2 tons single point |
| Flatness Tolerance | ≤0.1mm per 1000mm |
| Hole Position Tolerance | ±0.03mm |
| Verticality Tolerance of Side Face | ≤0.1mm per 200mm |
| Approx. Net Weight | 1550 KG |
| Standard Support Leg Quantity | 6 sets adjustable leveling legs |
Core Advantages
- Large 3000×1500mm work surface for oversized steel frames, truck chassis and machinery parts
- 5-sided D28 hole system enables full 3D clamping with universal modular fixtures
- 200mm reinforced box structure stays flat under heavy loads, no easy deformation
- Plasma nitrided surface resists weld spatter, wear and rust for long service life
- High precision: 0.1mm/1000mm flatness to reduce welding rework
- 5-ton total static load fits heavy fabrication & robotic welding stations
- Multiple welding tables spliceable; optional mobile or height-adjustable stands
- Replace custom single-use jigs, cut setup time and tooling costs drastically
Logistics & Packaging
Overall Packaging Solution
The entire welding table weighs approximately 1550kg, classifying it as a heavy-duty component. It is protected with two layers:
The entire welding table weighs approximately 1550kg, classifying it as a heavy-duty component. It is protected with two layers:
- Inner Layer Rust Protection: A thin layer of rust-preventive oil is evenly sprayed across the entire surface, followed by a vapor phase rust inhibitor film. Desiccants are inserted into the holes to prevent rusting from the high humidity and salt spray of sea transport. All threaded holes and positioning holes are fitted with plastic dust plugs to prevent weld slag and sawdust from entering and damaging the precision hole system.
- Outer Layer Export Solid Wood IPPC Fumigated Wooden Crate: The crate uses thickened channel steel as the frame, 5mm steel plate as the end cap, and a grid-like channel steel base with provisions for forklift/lifting ropes. The crate is labeled with IPPC fumigation markings, complying with customs quarantine requirements in Europe, America, Southeast Asia, and the Middle East, avoiding the risk of return and destruction.
- Separate Packaging for Accessories: Clamps, positioning pins, and support legs are packaged separately in small wooden crates, accompanied by a packing list in both Chinese and English, material certificates, precision test reports, and instruction manuals.
Shipping and Loading Specifications
- Outer Carton Dimensions: 3150×1650×350mm (excluding support legs)
- Gross Weight per Unit: Approximately 1680kg
- Container Compatibility: Maximum 2 units in a 20GP container; 4 units in a 40GP standard container; Larger quantities can be shipped via LCL flat rack container by sea.
- Supported Shipping Terms: FOB, CIF, CFR, DDU, DDP (all-inclusive door-to-door delivery)
- Outer Carton Dimensions: 3150×1650×350mm (excluding support legs)
- Gross Weight per Unit: Approximately 1680kg
- Container Compatibility: Maximum 2 units in a 20GP container; 4 units in a 40GP standard container; Larger quantities can be shipped via LCL flat rack container by sea.
- Supported Shipping Terms: FOB, CIF, CFR, DDU, DDP (all-inclusive door-to-door delivery)
