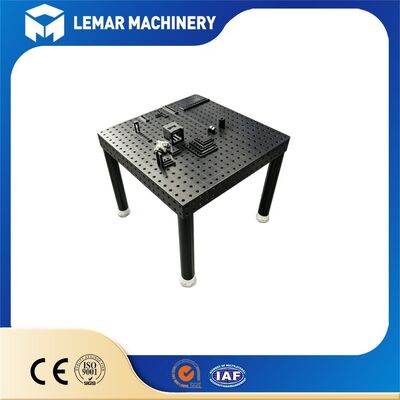

D16 Nitrided Steel Welding Table with High Surface Hardness Treatment
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 15-25 work days |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Nitrided steel welding table
,High hardness welding fixture table
,D16 welding table with surface treatment
Our D16 Nitrided Steel Welding Table with High Surface Hardness Treatment is a premium industrial welding worktable engineered for sheet metal processing and robotic welding workshops. Constructed from thick Q355 structural steel with stress relief treatment, the entire tabletop and four vertical sides undergo integral nitrided high surface hardness processing.
The standard 50×50mm D16 hole grid ensures consistent positioning precision, while the nitrided layer significantly enhances wear resistance, anti-welding spatter, and anti-corrosion performance. Unlike ordinary painted or blackened welding tables, this nitrided steel welding table maintains stable flatness and extended service life under continuous high-frequency production.
It supports free splicing and complete sets of D16 modular clamping accessories, making it ideal for small precision parts welding, automated robot welding stations, prototype production, and batch manufacturing. Custom sizes and specialized surface treatment solutions are available to meet diverse industrial welding requirements worldwide.
| Performance Item | D16 Nitrided Hardened Steel Welding Table | Ordinary D16 Steel Welding Table |
|---|---|---|
| Surface Hardness | HV450-1000 | HV300-500 |
| Weld Spatter Adhesion | Low adhesion, easy to clean | Weld slag penetrates surface, hard to grind and repair |
| Wear Service Life | Stable precision for 5-10 years | Hole abrasion & precision loss within 1-3 years |
| Rust Resistance | Rust-free in long-term humid environments | Prone to oxidation & rust, requires regular maintenance |
| Impact & Dent Resistance | Resistant to permanent dents | Minor impact leaves permanent indentations |
| Applicable Working Conditions | Mass production, robotic welding, high-frequency operation | Prototyping, low-frequency intermittent use |
- Nitrided Hardened Working Surface: The top surface and four side facades are all CNC precision milled and then nitrided. All five surfaces feature D16 positioning holes, enabling 360° multi-angle tooling clamping and achieving three-dimensional flexible positioning.
- Reinforced Rib Base Frame: Steel plate welded mesh reinforcement with factory vibration aging to eliminate machining stress, ensuring no deformation under long-term heavy loads. Pre-drilled splicing holes at the bottom allow for seamless integration of multiple units.
- Optional Support Legs: Three support leg options available: fixed leveling feet, universal casters with brakes, and telescopic lifting legs, adaptable to workshop movement and fixed workstation requirements.
- Matching Modular Tooling: Complete D16 hole system accessories including positioning pins, right-angle rulers, quick clamps, support blocks, tensioners, and angle blocks. One set of tooling adapts to all workpieces, replacing dedicated welding jigs.
Environmental Advantages of Nitriding Process: Utilizes only nitrogen and hydrogen, eliminating heavy metal wastewater pollution from electroplating. Waste gas treatment with activated carbon and water washing meets international environmental standards, not classified as a high-pollution surface treatment process.
Factory System Certification: All our welding table series have passed ISO9001 quality system certification, DIN876 flatness inspection standard certification, and ISO2768 dimensional tolerance standard certification. For export, we provide CO certificate of origin, fumigation certificate, material certificate, and hardness test report.
Our D16 Nitrided Steel Welding Table with High Surface Hardness Treatment delivers outstanding wear resistance, anti-spatter, and anti-rust performance far beyond ordinary painted welding tables. Contact our sales team for factory direct prices, installation guidance, and matching fixture recommendations. We respond to all inquiries within 24 hours.
