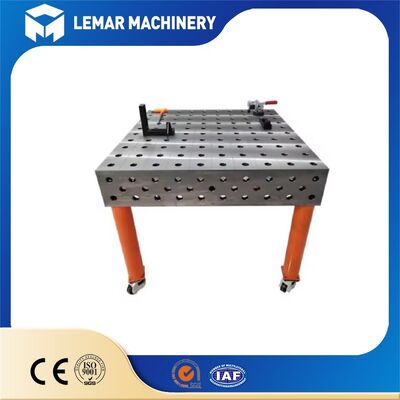

Professional Grade D28 Welding Table for Workshop Use
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T,Western Union |
| Supply Capacity: | 500-1500 USD |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Hole Standard:
D28, φ28mm, 100×100mm Grid Pitch
Main Material:
HT300 Cast Iron / Q355 High Strength Steel
Surface Treatment:
Deep Gas Nitriding
Flatness:
≤0.1mm/m
Working Height:
630mm
Hole Center Tolerance:
±0.03mm
Side Verticality:
1. ≤0.1mm/200mm
Working Temperature:
-20℃ ~ 50℃; Salt Spray Resistance: ≥200h
Transportation Methods:
Sea Freight/Rail Freight/Air Freight/Express
Highlight:
Professional Grade D28 welding table
,Workshop welding table with warranty
,3D welding table for professionals
Product Description
Professional Grade D28 Welding Table for Workshop Use
Upgrade your metal fabrication workshop with our Professional Grade D28 Welding Table for Workshop Use, an industrial-grade 3D modular fixturing platform engineered for heavy-duty, high-precision welding and assembly operations.
Built around the global standard φ28mm D28 hole grid with 100×100mm precision spacing, this professional welding workbench delivers full 5-sided 3D positioning on X/Y/Z axes, fully compatible with all universal D28 clamping accessories, locating pins, angle blocks and quick lock fixtures.
Specifications
| Table Size (L×W) | Hole Diameter | Grid Pitch | Flatness Tolerance | Uniform Static Load |
|---|---|---|---|---|
| 1000 × 800 mm | φ28 mm | 100 × 100 mm | ≤ 0.1 mm / m | 3,000 kg |
| 1000 × 1000 mm | φ28 mm | 100 × 100 mm | ≤ 0.1 mm / m | 4,000 kg |
| 1000 × 1500 mm | φ28 mm | 100 × 100 mm | ≤ 0.1 mm / m | 5,000 kg |
| 1500 × 1500 mm | φ28 mm | 100 × 100 mm | ≤ 0.1 mm / m | 6,000 kg |
| 1500 × 2000 mm | φ28 mm | 100 × 100 mm | ≤ 0.1 mm / m | 8,000 kg |
| 2000 × 2000 mm | φ28 mm | 100 × 100 mm | ≤ 0.1 mm / m | 9,000 kg |
| 2000 × 3000 mm | φ28 mm | 100 × 100 mm | ≤ 0.1 mm / m | 10,000 kg |
| 2000 × 4000 mm | φ28 mm | 100 × 100 mm | ≤ 0.1 mm / m | 12,000 kg |
Product Advantages
- Universal D28 5-sided hole grid, fully compatible with all D28 fixtures, saving jig costs greatly
- Two materials: HT300 cast iron for precision work; Q355 steel for heavy fabrication
- Deep nitrided surface, anti-spatter, rust-proof and long service life
- High machining precision, stable flatness for consistent welding accuracy
- Thick reinforced rib structure, huge load capacity, hard to deform
- Optional fixed / mobile / hydraulic lifting legs to fit different workshops
Product Details
Precision Laser Coordinate Scale
The D28 welding table features laser-engraved millimeter scales along the X and Y axis edges. The scale is permanent and does not fade, eliminating the need for an additional steel ruler. The grid holes are perfectly aligned with the scale, allowing beginners to quickly locate the workpiece reference directly, saving measurement and adjustment time.
Side Vertical Reference Surfaces
All four sides are precision-milled using CNC, ensuring strict control over the perpendicularity of the sides to the table surface. 90° reference positioning can be directly achieved using the sides, eliminating the need for additional right-angle ruler calibration, making it suitable for batch welding of boxes and frames.
Diagonal Reference Markings
Center reference marks are engraved at the four corners of the table surface. When splicing multiple welding tables, the overall coordinates can be quickly aligned, ensuring a unified coordinate system after multiple tables are assembled.
Export Customs Clearance Services
Complete Customs Clearance Documents Available: Commercial Invoice, Packing List, Certificate of Origin (CO/FA), Material Spectroscopy Report, Nitriding Hardness Test Report, CE Certificate, ISO9001 Certificate, Manufacturer's Authorization Letter.
HS Code Differentiation:
- Welding Fixture Platform Main Body: 732690
- Matching Fixture Positioning Pins: 851590
These can be declared separately during customs clearance, reducing import tariffs in some countries.
Packaging Compliance: IPPC plywood crates, marked with ISPM15 fumigation mark, recognized by customs worldwide, eliminating the risk of fumigation detention; the crates contain desiccant and an anti-rust oil film for double moisture protection, suitable for 1-3 month ocean shipping.
