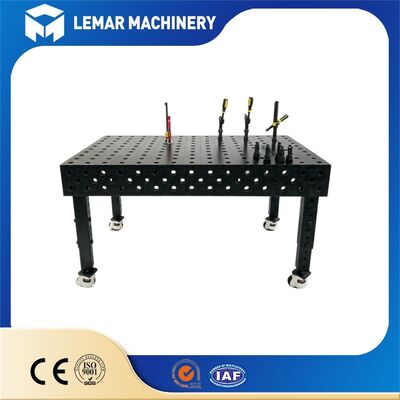

D28 Modular Welding Fixture Table Offering 100x100mm Diagonal Grid
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
D28 modular welding table
,welding fixture table 100x100mm grid
,3D welding table with diagonal grid
Introducing the D28 Modular Welding Fixture Table Offering 100x100mm Diagonal Grid, our premium 3D modular welding platform designed to meet high-demanding complex fabrication demands. Adopting unique diagonal grid hole system based on 100mm standard grid, this table provides denser positioning points for tubular, bent and angular components. With strict machining tolerance, high load-bearing capacity and optional wear-resistant nitriding treatment, it realizes full 360° clamping on top and four side faces. As a fully modular system, it supports rapid fixture reconstruction and unlimited splicing expansion, widely applied in manual welding and automatic robotic welding lines across all metal fabrication industries.
| Item | Detailed Parameters |
|---|---|
| Standard Hole Diameter | Φ28mm (D10 tolerance: +0.065 ~ +0.149mm) |
| Grid Layout | Base 100×100mm square grid + extra diagonal holes at 50mm diagonal intervals |
| Working Surfaces | 5-sided processing (Top + 4 vertical sides); triple-row D28 holes on all sides |
| Standard Tabletop Thickness | 23.5mm / Optional heavy-duty 25mm, 27mm, 30mm |
| Base Material | Q355B / S355JR High-strength steel plate; Optional HT300 cast iron |
| Bottom Reinforcement | Integrated cross rib frame, stress relief tempering treatment |
| Standard Available Sizes (mm) | 1000×1000, 1200×800, 1500×1000, 2000×1000, 2400×1200, 3000×1500, 4000×2000 |
| Standard Table Height | 200mm (table body only) |
| Support Leg Options | Adjustable leveling legs / Mobile caster legs / Height adjustable telescopic legs / Hydraulic lifting base |
| Rated Load Capacity | Average load: 5 tons/㎡; Single point static load: 1000kg; Heavy version up to 12 tons/㎡ |
| Flatness Tolerance | ≤0.1mm per square meter |
| Hole Center Distance Tolerance | 100mm ±0.05mm; Diagonal 50mm ±0.03mm |
| Verticality of Side Faces | 0.1mm / 200mm |
| Surface Treatment Options | 1. Ion Nitriding: Hardness HV450-630, hardened layer 0.25-0.35mm, anti-spatter & wear-resistant 2. Black Oxide: Economical anti-rust finish |
- Doubled Clamping Flexibility: The 100mm diagonal hole pattern perfectly accommodates 45° angled structures—such as round tubes, square tubes, bent profiles, vehicle frames, and machine chassis—where precise diagonal positioning is difficult to achieve with standard straight-grid systems.
- Reduced Fixture Setup Time: The dense hole pattern eliminates the need for stacking multiple spacers for leveling; components are locked securely in place in a single step, boosting single-part changeover efficiency by over 30%.
- Higher Repeat Positioning Accuracy: Multiple support points distribute forces evenly, minimizing thermal deformation during welding and ensuring high consistency in batch production.
- Broader Range of Applications: Suitable for both heavy, large-scale components and small, precision structures; compatible with both manual and robotic welding processes.
- Superior Long-Term Cost-Effectiveness: A single welding table replaces multiple sets of dedicated jigs, eliminating the need to fabricate new fixtures for production changes—making it the ideal choice for small-to-medium batch custom manufacturing.
- Laser-engraved millimeter scale along the tabletop edge for quick dimensional positioning
- X/Y grid markings across the entire surface for visual alignment
- Detachable support legs and leveling feet; multiple units can be joined to create an extra-large work surface
If you are looking for a high-precision, flexible heavy-duty welding solution for complex tubular and angled workpieces, our D28 Modular Welding Fixture Table Offering 100x100mm Diagonal Grid will perfectly match your production demands. We support customized sizes, surface treatments and complete D28 accessory packages, and provide full export documents to simplify your import clearance.
Send us your workpiece drawings, required table dimensions or bulk order demands now to get a tailored quotation with the best factory price. Our sales team will reply within 24 hours and offer professional technical support for your welding workshop layout.
