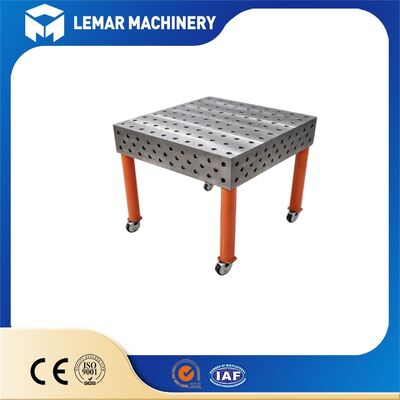

D28 Modular Welding Table with 3D Clamping and Fixturing Capability
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
D28 modular welding table
,3D welding table with clamping
,welding table fixturing capability
Welcome to our product page! Introducing the D28 Modular Welding Table with 3D Clamping and Fixturing Capability — your ultimate heavy-duty, flexible solution for industrial metal fabrication. Engineered to redefine precision, efficiency, and versatility in welding and fixturing, this table is tailored to meet the rigorous demands of modern manufacturing.
Whether you're fabricating heavy steel structures, assembling vehicle frames, or executing precision robotic welding projects, the D28 Modular Welding Table is designed to streamline your workflow, reduce production costs, and elevate the quality of your finished products. Discover why it's the industry's top choice for both small-batch trials and large-scale mass production.
| Parameter | Standard Value | Optional Value |
|---|---|---|
| Hole System | φ28mm (100×100mm grid) | -- |
| Tabletop Material | Q355B Steel (Nitrided) | HT250/HT300 Gray Cast Iron |
| Tabletop Thickness | 24-26mm | 30mm (Heavy-Duty) |
| Static Load Capacity | 2-5 tons/㎡ | 8-10 tons/㎡ (Heavy-Duty) |
| Flatness | ≤0.1mm/1000mm | -- |
| Verticality (Side Surfaces) | ≤0.1mm/200mm | -- |
| Clamping Force | ≥25KN (Quick Clamps) | -- |
| Standard Dimensions (L×W) | 1000×1000mm, 2000×1000mm | 1200×800mm, 1500×1000mm, 2000×1500mm, 3000×1500mm (Customizable) |
- Heavy-duty nitrided Q355 steel tabletop, high load capacity, anti-rust and wear-resistant, long service life
- D28 welding table featuring a 3D hole pattern on five surfaces, enabling 360° clamping with no blind spots, high precision, and rapid fixture setup
- Full modular splicing design, multiple leg options, freely expandable work area for large parts
- Perfect match for robot welding stations, no mechanical interference for automated production
- One set replaces numerous custom jigs, lowers production cost, global standard compatible fixtures
We offer a full range of standardized D28-compatible fixtures to meet all your clamping and fixturing needs. The optional kit includes:
- Locating Components: Cylindrical locating pins, diamond anti-rotation pins, quick-lock eccentric bolts, splicing pins (for multi-table connection)
- Support Components: Height-adjustable support blocks, threaded lifting columns, arc V-shaped supports (for round/square pipes), U-shaped square boxes, L-shaped right-angle supports
- Clamping Components: Quick toggle clamps, spiral pressure plates, lateral lockers, 0-180° adjustable angle blocks, 90° right-angle locking blocks
- Auxiliary Components: Grounding terminals, dust plugs (for idle holes), laser-engraved scale rulers (mm/inch dual scale)
The D28 Modular Welding Table is widely used in various industrial sectors, including:
- Construction Machinery: Excavator arms, forklift frames, crane structural parts, mining machinery racks
- Vehicle Manufacturing: Semi-trailer frames, electric bus chassis, motorcycle frames, new energy battery frames
- Steel Structure Engineering: Stage trusses, guardrails, iron towers, container frames, pipe supports
- Automation Equipment: Machine tool racks, robot bases, laser equipment frames, large sheet metal cabinets
- Special Manufacturing: Offshore engineering components, pressure vessel supports, construction machinery attachments
Our D28 Modular Welding Table with 3D Clamping and Fixturing Capability delivers full 3D flexible fixturing for all heavy fabrication projects.
Contact our sales team via WhatsApp or email today to get detailed specs, package solutions and factory direct prices.
