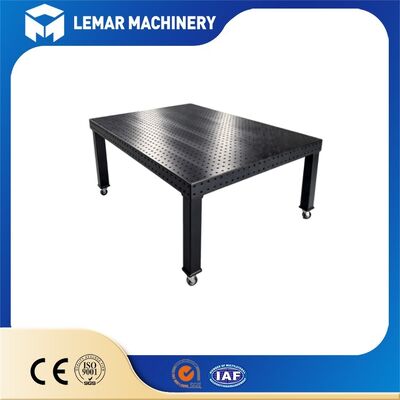

D16 Welding Table 2400x1200mm with Splicing Capability
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,Western Union,T/T |
| Supply Capacity: | 500 units/month |
D16 welding table with splicing capability
,2400x1200mm 3D welding table
,large welding table with splicing
Searching for a scalable precision welding fixture table? Our D16 Welding Table 2400x1200mm with Splicing Capability is a full 5-sided 3D flexible modular welding bench with free multi-table splicing expansion. Standard D16 50×50mm hole grid, ion nitrided anti-spatter tabletop and consistent flatness after connection, perfectly matched for manual welding and automated robot welding. This 2400×1200mm splicable D16 welding table supports linear, square, L & U layout combinations, lowering workshop equipment costs and logistics fees for metal fabrication workshops worldwide.
| Item | Specification |
|---|---|
| Full Product Name | D16 Welding Table 2400x1200mm with Splicing Capability |
| Overall Dimension | 2400mm Length × 1200mm Width |
| Side Wall Standard Height | 150mm (Custom 200mm available) |
| Standard Working Height | 800mm (Custom 700-900mm) |
| Tabletop Thickness | 12mm, upgradeable to 18mm heavy-duty |
| Hole Type | Φ16 H7 Precision Reamed Hole |
| Hole Grid Pitch | 50mm × 50mm uniform grid |
| Hole Position Tolerance | ±0.03mm |
| Table Flatness | 0.1mm / 1000mm (0.05mm/1000mm precision version) |
| Verticality (Side Wall to Top) | ±0.1mm / 200mm |
| Splicing Design | Full 5-sided drilled for unlimited splicing |
- High-temperature resistance up to 450°C: The nitrided layer remains intact even when exposed to brief, high-temperature weld spatter, whereas standard painted surfaces begin to peel and flake at just 200°C
- Weld spatter resistance: The nitrided layer is dense and smooth, allowing cooled spatter to be easily dislodged with a light tap, eliminating the need for frequent surface grinding
- Rust resistance: With no exposed iron substrate, the surface resists rusting even when exposed to workshop coolants, humid air, or stainless steel pickling environments
- Extended service life: Offers a service life 3-5 times longer than standard black-oxide or painted surfaces, ensuring precision welding capabilities over the long term without the need for annual surface resurfacing
- D16 50mm hole pattern provides ample positioning points for fine-tuning small fixtures, enabling precise positioning for robots with short travel ranges
- Multiple units can be joined to form an extra-long, continuous fixture track, allowing the robot's 7th axis to travel at a constant speed along the combined surface
- Once assembled, the welding table maintains a unified global reference, eliminating the need for segmented robot program calibration—a single teach-in suffices for the entire length
- The nitrided surface is anti-static and resistant to weld spatter adhesion, preventing reflections that could interfere with the robot's vision system
- Individual welding table units are detachable, allowing offline fixture setup without occupying the robot's primary workstation, thereby increasing equipment utilization rates
- Standard export-grade solid wood fumigated crates bearing the IPPC mark, compliant with customs and quarantine requirements in Europe and the Americas
- Work surface covered with anti-rust paper and EPE foam; positioning holes fitted with internal plastic dust plugs to prevent rust or impact damage during transit
- Support legs, connecting pins, and clamps packed in separate compartments to prevent impact damage or scratches to the nitrided surfaces during transport
- Standard unit size of 2400×1200 mm; a 20GP container accommodates 6-8 welding tables, offering significantly higher packing efficiency compared to oversized, single-piece tabletops
If you need a flexible, expandable high-precision welding platform for sheet metal, robotic production or large frame fabrication, this splicable D16 2400×1200mm welding table is your ideal choice.
Contact our sales team now to get detailed dimension drawings, full fixture quotation and customized workshop layout solution. Free factory technical support for your welding station design!
