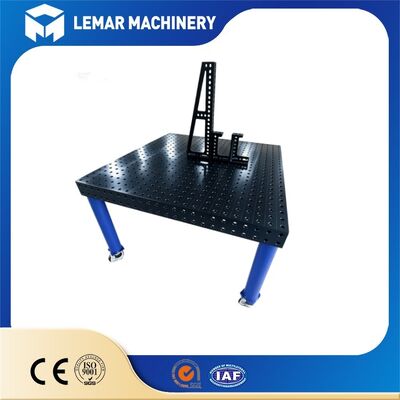

D16 Welding Fixture Table with CE Certification for EU Markets
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D16
Document
Hole Diameter:
Φ16mm, H7 Tolerance (Φ16.065–Φ16.149mm)
Φ16mm, H7 Tolerance (Φ16.065–Φ16.149mm):
50×50mm, Hole Center Distance ±0.05mm
Structure Type:
3D Five-sided Precision Machining (1 Top Surface + 4 Vertical Side Surfaces)
Edge Engraving:
1mm Laser Metric Scale On All Four Sides For Quick Positioning
Top Plate Thickness:
12mm
Surface Hardness:
HRC45+
Table Flatness:
≤0.1mm Per 1000mm Working Length
Vertical Perpendicularity:
≤0.05mm Per 200mm Side Height
Hole Position Accuracy:
±0.03mm
Highlight:
D16 welding fixture table
,3D welding table with CE certification
,welding table for EU markets
Product Description
D16 Welding Fixture Table with CE Certification for EU Markets
Our D16 Welding Fixture Table with CE Certification for EU Markets is a professional 3D modular flexible welding platform engineered exclusively for European metal fabrication workshops, sheet metal factories and light frame welding manufacturers. Built with Φ16 H7 precision holes and a dense 50×50mm grid system, this D16 welding fixture table delivers ultra-high positioning accuracy for small medium precision workpieces, fully compliant with EU Machinery Directive 2006/42/EC and REACH environmental standards.
Featuring stress-relieved steel or HT300 cast iron body plus wear-resistant gas nitrided surface, our CE certified welding table eliminates the need for custom single-use jigs and drastically cuts production setup costs for EU fabricators. All tables come with complete CE conformity documents, IPPC export packaging and full D16 clamping accessories to support smooth customs clearance and long-term stable workshop operation across Germany, Spain, France, Poland and other EU countries.
Technical Specifications
| Specification Item | Detailed Parameters |
|---|---|
| Hole Standard | Φ16mm H7 precision positioning hole, 50×50mm uniform grid spacing |
| Standard Available Sizes (L × W) | 1000×500mm, 1200×800mm, 1500×1000mm, 2000×1000mm, 2400×1200mm, custom sizes supported |
| Working Table Height | Standard 850mm; optional 750mm / 900mm for manual & robot welding stations |
| Two Main Body Materials | 1. Q355B high strength steel (lightweight, small & medium workpiece welding) 2. HT300 grey cast iron (high precision, heavy load mass production) |
| Surface Treatment | Full gas nitriding, nitrided layer 0.25-0.35mm, anti-spatter & rust-proof |
| Flatness Precision | ≤0.1mm per 1000mm table length |
| Hole Spacing Tolerance | ±0.05mm |
| Verticality of Table & Side Panels | ≤0.1mm / 200mm |
| Uniform Bearing Load | 2 tons (all models) |
| Maximum Limit Load | 5 tons (HT300 cast iron D16 welding fixture table) |
| Compliance Certification | EU CE certification (Machinery Directive 2006/42/EC), REACH environmental compliance |
| Matching Accessories | Full D16 series modular clamps, locking pins, support blocks, adjustable leveling feet, optional brake casters |
| Export Packaging Standard | IPPC heat-treated wooden case, waterproof PE film wrapping for EU sea shipment |
Key Features & Benefits
CE Certified for EU Entry: Complete with third-party CE conformity certificate and full English customs clearance documents, meeting EU customs and factory audit requirements.
High Precision D16 Hole System: Φ16 H7 precision tolerance holes, 50×50mm dense grid, flatness ≤0.1mm/1000mm, perfect for positioning small, thin-walled workpieces.
Wear-Resistant Nitrided Surface: Gas nitriding treatment (0.25-0.35mm nitrided layer), surface hardness HV600+, resistant to welding spatter and 480℃ high temperature.
Flexible Modular Design: Compatible with full set of D16 standard fixtures, quickly switch between different workpieces without custom jigs.
Solutions for Customer Pain Points
Pain Point 1: Customs clearance issues due to lack of CE certification
Full CE certification under the Machinery Directive (MD) for the complete unit; all documentation provided in the original English version to satisfy both customs and factory audit requirements simultaneously.
Pain Point 2: Standard welding tables prone to weld spatter adhesion and requiring frequent grinding/maintenance
Gas-nitrided hardened surface that resists spatter and is easy to clean, reducing maintenance costs by 60%.
Pain Point 3: High costs associated with needing numerous specialized jigs for diverse workpieces
Modular, flexible fixturing system; a single setup accommodates hundreds of workpiece types, eliminating the need for custom-made welding jigs.
Pain Point 4: Thermal deformation and loss of precision over time
Dual stress-relief aging process, rigorous factory-floor flatness testing, and guaranteed precision throughout the warranty period.
Pain Point 5: Moisture damage during sea freight or wooden packaging rejection
Dual-layer protection featuring IPPC heat-treated wooden crates and waterproof wrapping for the entire unit, accompanied by quarantine certification to prevent customs clearance delays.
Get More Information
Need more details about our CE certified D16 welding fixture table, customized sizes or bulk order discounts for EU fabrication factories?
Send your inquiry today, we will attach full technical datasheets, CE certificate samples and fixture matching lists for your reference immediately.
We support flexible trade terms and fast delivery for all EU countries, look forward to establishing long-term cooperative partnership with you.
