D28 Steel Welding Table with 100mm Grid Spacing for Heavy Equipment Manufacturing
| MOQ: | 500-1500 USD |
| Price: | 500-1500 |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/P,D/A,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Tabletop Material:
Q355B High Tensile Alloy Steel (Optional HT300 Cast Iron)
Table Top Thickness:
Standard 25mm
System Hole Diameter:
Φ28mm Standard D28 Hole
Grid Spacing:
100×100mm Top Grid; Side Vertical Pitch 50mm, Horizontal Pitch 100mm
Hole Tolerance:
+0.065 ~ +0.149mm
Flatness Tolerance:
≤0.1mm / 1000mm
Side Verticality:
≤0.1mm / 200mm
Working Sides:
5-sided 3D Working Surface (Top + Four Side Panels)
Surface Marking:
Laser Engraved XY Coordinate Scale
Highlight:
D28 steel welding table
,welding table with 100mm grid
,heavy equipment welding table
Product Description

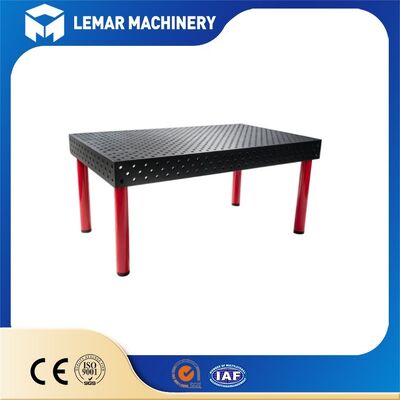

D28 Steel Welding Table with 100mm Grid Spacing for Heavy Equipment Manufacturing
Our D28 Steel Welding Table with 100mm Grid Spacing is specifically engineered for heavy equipment manufacturing, addressing common challenges such as low efficiency, poor precision, and high custom fixture costs in heavy fabrication.
Featuring a standard 100mm grid spacing and Φ28mm system holes, this welding table delivers unmatched rigidity, flexibility, and durability, making it ideal for welding large, heavy workpieces like construction machinery frames, mining truck chassis, and industrial machinery components.
Technical Specifications
| Parameter | Standard Value | Customized Option |
|---|---|---|
| Material | Q355B High-Strength Steel | HT250/HT300 Cast Iron |
| Table Top Thickness | 25mm | 30-50mm (Heavy-Duty) |
| System Hole Size | Φ28mm (Tolerance +0.065~+0.149mm) | -- |
| Grid Spacing | 100×100mm (±0.05mm) | -- |
| Flatness | ≤0.1mm/1000mm | ≤0.08mm/1000mm (High Precision) |
| Verticality (Side Surface) | ≤0.1mm/200mm | -- |
| Max Load Capacity | 2-5 tons/㎡ (Total 3-10 tons) | Up to 15 tons (Reinforced Legs) |
| Table Height | 850mm (Including Legs) | 700-1050mm (Hydraulic Lifting) |
| Surface Treatment | Plasma Nitriding / Precision Milling + Paint | -- |
| Standard Sizes | 1000×1000mm, 1200×1200mm, 1500×3000mm, 2000×4000mm, 4000×2000mm | Customized Length / Width |
Key Features
- 5-sided 3D working surface for 360° clamping and positioning
- Q355 high-tensile steel body with reinforced ribs for anti-deformation
- Optional plasma nitriding finish for wear resistance and anti-spatter
- Modular design for free splicing to fit oversized workpieces
- Universal D28 fixture system for fast retooling (no custom jigs needed)
Modular Splicing for Oversized Workpieces
Multiple D28 tables can be seamlessly spliced using dedicated connecting pins, with a splicing gap ≤0.03mm and consistent overall flatness. This allows you to create a large continuous workbench (up to 4m×8m) for welding extra-large components like heavy trailer frames and mining machinery racks. The 100mm grid aligns perfectly across spliced tables, enabling cross-table fixture use.
Compatible D28 Heavy-Duty Fixtures
We provide a complete set of universal D28 accessories to meet all your heavy fabrication needs. All accessories are interchangeable with global D28 standard welding tables, ensuring long-term availability and compatibility.
- Locking Positioning: Heavy-duty quick-locking pins, countersunk locating pins, diamond anti-misalignment pins, positioning stops
- Clamping: Extended heavy spiral clamps, multi-angle toggle clamps, 45°/90° special clamps
- Support: Height-adjustable support columns, thickened load-bearing pads, U-shaped cubic supports, V-shaped locators (for round pipes/cylinders)
- Expansion: Table connecting pins, heightening columns, side-hung extension plates, lifting rings, grounding terminals
Note: Accessories can be purchased separately or as a set. Contact us for a customized fixture package based on your production needs.
