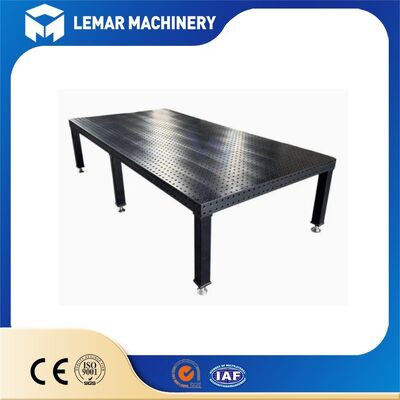

D16 3D Flexible Welding Table for Rapid Tooling and Jig Setup
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
flexible welding table for tooling
,3D welding fixture table
,welding jig setup table
Our D16 3D Flexible Welding Table for Rapid Tooling and Jig Setup is a full 5-sided modular grid fixture system tailored for modern multi-variety metal fabrication. Designed with dense Φ16 locating holes and standard 50×50mm grid spacing, this welding platform supports complete X/Y/Z three-dimensional clamping on both the top surface and four vertical side walls.
All matching clamps, locating blocks and quick lock pins are fully interchangeable, allowing operators to rebuild brand-new jig layouts within 10 to 30 minutes instead of waiting days for custom dedicated tooling. Manufactured from stress-relieved HT300 cast iron or lightweight Q355 nitrided steel, it maintains long-term dimensional stability with tight positioning tolerance, perfectly suited for thin sheet metal, aluminum frames, tubular workpieces and automated robot welding cells.
| Item | Specification Details |
|---|---|
| Standard Hole Parameter | Φ16mm locating holes, 50×50mm dense grid pitch |
| Hole Layout | 5-sided full hole design (top + 4 vertical side walls) |
| Working Height (Standard) | 700mm; Custom height: 800mm / 900mm available |
| Optional Material Grade 1 | HT300 Cast Iron (0 Precision Grade) Flatness: ≤0.05mm/1000mm Position tolerance: ±0.03mm Nitride depth: 0.12-0.2mm, Hardness HV850-1000 |
| Optional Material Grade 2 | Q355 Nitrided Steel (1 General Grade) Flatness: ≤0.10mm/1000mm Position tolerance: ±0.05mm Lighter weight, cost-effective |
| Standard Stock Dimensions | 1000×500mm 1000×800mm 1500×1000mm 2000×1000mm 2400×1200mm Custom non-standard sizes supported |
| Load Capacity | Even distributed load: 3-5 T/㎡ Max single-point concentrated load: 2 T |
| Surface Treatment | High temp annealing + vibration stress relief + full shot blasting + plasma ion nitriding Non-working sides: High-temperature anti-rust paint |
| Standard Included Accessories | Heavy adjustable leveling feet (±50mm adjustment range) |
| Optional Extra Attachments | Brake casters, lifting rings, height raising frames, tool hangers, dust-proof hole plugs, complete D16 clamp kits, pneumatic clamping sets, robot adapter plates |
| Certification | CE, ISO factory inspection test reports |
- Step 1: Stress Elimination (Anti-Warp Core Process)
All raw blanks go through high-temperature annealing + vibration aging to remove internal casting/welding stress. No natural aging required, effectively avoid table bending and precision loss after years of workshop use. - Step 2: Full Shot Blasting
Whole table shot blast to remove oxide skin, burr and rust, enhance adhesion of nitriding layer for longer service life. - Step 3: Plasma Ion Nitriding (Wear & Splash Resistant)
Nitride layer withstand 350℃ high temperature, welding spatter will not form permanent pits
Anti-rust performance fits coastal high humidity factories
5-10 times higher wear resistance than untreated steel plate
Optional upgrade: High-temperature anti-spatter coating for easier daily cleaning - Step 4: Protective Coating
Non-working side walls sprayed with black high-temperature anti-rust paint to prevent workshop moisture corrosion.
- Dramatically Reduce Jig Setup Time
Replace weeks of custom fixture machining with 10-30 minutes modular reconfiguration, accelerate new product trial order delivery and win more customer orders. - High-Dense D16 Grid For Precision Micro Adjustment
50×50mm hole pitch provides 4 times more clamping points than D28 welding tables. Perfect for thin sheets, tiny aluminum brackets and complex curved tubular parts with strict tolerance requirements. - Full 5-Sided 3D Clamping Solution
Top surface + four vertical walls all with standard D16 holes. Realize X/Y/Z three-dimensional multi-angle positioning, avoid repeated secondary clamping and dimension error accumulation. - Long Service Life
Double stress relief + deep ion nitriding effectively prevent table deformation and hole expansion. The 3d welding table maintains original precision for 8-10 years under normal use, far better than low-cost domestic tables without vibration aging treatment. - Wide Compatibility
100% interchangeable with international mainstream brand D16 accessories; support multi-table splicing to form large continuous welding production lines, freely match robots, positioners and automated equipment.
Heavy thick steel plates, large construction machinery frames, oversized structural parts with ultra-heavy clamping demand - select D28 100mm grid welding table for heavy load.
- Main table body: 2-year warranty (exclude man-made hammer strike and arc burning damage)
- Standard clamps, quick lock pins and other wearing parts: 1-year free replacement
- Nitride wear layer: 2-year quality guarantee, free repair or replacement if mass hole expansion occurs without human damage
Tell us your workpiece size, welding type (manual / robot), required table dimension and target material version.
Our professional engineer team will send free fixture layout drawing and best quotation within 24 hours.
