D28 Heavy-Duty Welding Fixture Table with 28mm Hole System and Clamps
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHIINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Main Raw Material:
Q355 High Strength Steel / HT300 Grey Cast Iron (Optional)
Tabletop Thickness:
25mm
Hole Spec:
Φ28mm H7 Precision Hole, 100×100mm Grid Pitch
Surface Hardness:
HV500+
Flatness Tolerance:
≤0.1mm Per 1000mm
Verticality Tolerance:
≤0.1mm Per 200mm
Hole Position Tolerance:
±0.03mm
Standard Sizes Range:
1000×1000mm – 4000×2000mm
Side Height:
Standard 200mm, Custom 150/250mm Available
Highlight:
D28 heavy-duty welding fixture table
,28mm hole system welding table
,welding table with clamps
Product Description
D28 Heavy-Duty Welding Fixture Table with 28mm Hole System and Clamps

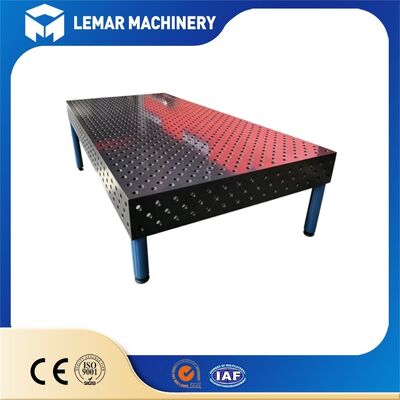

The D28 Heavy-Duty Welding Fixture Table with standard 28mm hole system and complete supporting clamps is our flagship heavy-load 3D flexible welding table designed for industrial heavy fabrication. Featuring a universal Φ28mm 100×100mm grid hole layout across all five working surfaces, it enables unrestricted three-dimensional clamping for bulky, thick and complex metal workpieces. Each unit comes bundled with full modular D28 clamps, positioning pins and locating blocks out of the box, so factories can start accurate, repeatable welding without additional custom fixture machining. Made of stress-relieved Q355 steel or HT300 cast iron with plasma nitrided hard surface treatment, this table maintains ultra-high flatness under heavy static loads and continuous high-temperature welding, widely adopted for truck chassis, construction machinery frames, steel structures and automated robot welding stations.
Product Specifications
| No. | Name | Material | Specification | Treatment Method |
|---|---|---|---|---|
| 1 | D28 3D welding table | steel/cast iron | 1000x1000x200 | Nitriding treatment/CNC machining/CNC engraved ruler |
| 2 | steel/cast iron | 1200x1200x200 | Nitriding treatment/CNC machining/CNC engraved ruler | |
| 3 | steel/cast iron | 1500x1000x200 | Nitriding treatment/CNC machining/CNC engraved ruler | |
| 4 | steel/cast iron | 1500x1500x200 | Nitriding treatment/CNC machining/CNC engraved ruler | |
| 5 | steel/cast iron | 2000x1000x200 | Nitriding treatment/CNC machining/CNC engraved ruler | |
| 6 | steel/cast iron | 2000x1500x200 | Nitriding treatment/CNC machining/CNC engraved ruler | |
| 7 | steel/cast iron | 2400x1200x200 | Nitriding treatment/CNC machining/CNC engraved ruler | |
| 8 | steel/cast iron | 3000x1500x200 | Nitriding treatment/CNC machining/CNC engraved ruler | |
| 9 | steel/cast iron | 2000x2000x200 | Nitriding treatment/CNC machining/CNC engraved ruler | |
| 10 | steel/cast iron | 2000x3000x200 | Nitriding treatment/CNC machining/CNC engraved ruler | |
| 11 | steel/cast iron | 4000x2000x200 | Nitriding treatment/CNC machining/CNC engraved ruler |
Heavy-Duty Characteristics
- Heavy-Duty Compatibility: Features 28mm large holes and a thickened tabletop, accommodating steel plates (10-100mm thick), large vehicle frames, containers, and heavy machinery structural components--workpieces too heavy for D16 small-hole tables.
- 3D Flexible Positioning: A five-sided hole pattern allows for clamping in all directions (vertical, lateral, and longitudinal), enabling the positioning and fabrication of complex bent tubes, housings, and frames in a single setup.
- Weld-Resistant and Durable: Nitrided/cast iron construction resists weld spatter and high temperatures; the surface remains free from pitting and rust during prolonged welding use, offering a lifespan of 5-10 years.
- Zero Dedicated Tooling Costs: Standardized clamps can be freely combined, eliminating the need for costly custom mold development.
- High-Precision, Stable Welding: The tabletop resists deformation and ensures minimal positioning errors, resulting in high dimensional consistency for batch-welded products.
- Automation-Ready: The 3D welding table can be integrated with welding robots, positioners, and hydraulic lifting stands to form an automated welding workstation.
Export Delivery Solution
- Dual-Layer Anti-Rust Protection (for long-haul ocean transport)
The entire unit is sprayed with industrial anti-rust oil to form a protective seal;
Wrapped in full-coverage waterproof PE stretch film to block seawater moisture;
Clamps are individually wrapped in bubble wrap to prevent transport-related impacts or scratches to the nitrided surface. - Wooden Crate Packaging Standards
Fumigated solid wood export crates bearing the IPPC mark, compliant with EU and North American customs quarantine requirements; solid wood supports added beneath the tabletop to prevent deformation during lifting; clamps packed in separate wooden compartments; shipment includes an accessory list, English manual, inspection report, and CE certificate. - Logistics Methods
Sea Freight: Full Container Load (20GP/40HQ) or Less than Container Load (LCL); transit time: 25-45 days;
Land Transport: China-Europe Railway Express and road trucking (Europe, Central Asia);
Air Freight: Expedited orders for small tabletops and clamp samples. - Payment and Delivery Lead Times
Standard sizes (in stock): Shipped within 7-15 days; non-standard custom sizes: 15-40 days; payment accepted via T/T, L/C, Western Union, PayPal, etc.
Qualifications, Certifications, and Customized Services
Authoritative Certifications: CE certification for industrial machinery safety and ISO9001 production system certification; documentation available includes material test reports, factory flatness inspection records, and third-party metallographic/nitriding test reports.
Comprehensive Customization:
Dimensions: Fully customizable non-standard sizes (length/width: 1000-6000mm); side heights available in 150mm, 200mm, or 250mm.
Material: Choice of Q355 steel plate or HT300 cast iron.
Process/Finish: Natural machined finish or black nitrided finish.
Accessories & Integration: Pneumatic fixtures, hydraulic clamping components, robot adapter bases, and integrated solutions with positioners.
Marking: Laser engraving of customer logos and coordinate scales on the welding table surface.
Dimensions: Fully customizable non-standard sizes (length/width: 1000-6000mm); side heights available in 150mm, 200mm, or 250mm.
Material: Choice of Q355 steel plate or HT300 cast iron.
Process/Finish: Natural machined finish or black nitrided finish.
Accessories & Integration: Pneumatic fixtures, hydraulic clamping components, robot adapter bases, and integrated solutions with positioners.
Marking: Laser engraving of customer logos and coordinate scales on the welding table surface.
