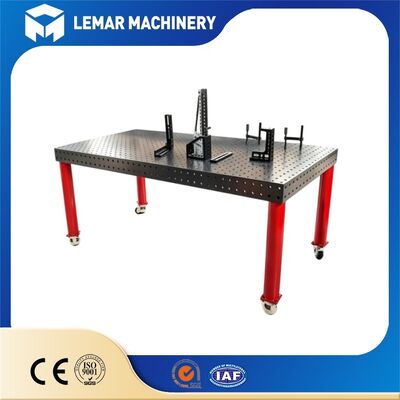

Premium D16 3D Welding Table System 16 Precision Workdesk
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200 |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D16
Document
Hole Spec:
Φ16mm, 50×50mm Grid Spacing, H7 Precision Tolerance
Flatness Accuracy:
≤0.1mm Per 1000mm
Machining Craft:
5-Axis CNC Integrated Milling + Stress Relief Annealing
Side Height:
150mm 5-sided Full Hole Design
Custom Support:
Size Custom, Logo Custom, OEM Packaging
Surface Finish:
Nitrided Anti-Wear Surface
Trade Terms:
EXW ,CIF ,FOB ,DDP ,DDR
Compatibility:
Universal All Brands D16 Fixtures
Main Material:
Q355 High Strength Alloy Steel / HT300 Cast Iron Optional
Highlight:
D16 3D welding table system
,Precision welding workdesk
,16-inch 3D welding table
Product Description
Premium D16 3D Welding Table System 16 Precision Workdesk
The Premium D16 3D Welding Table System 16 Precision Workdesk is an industrial modular fixturing workbench designed for high-precision metal fabrication, batch welding, prototyping, and robotic welding applications. Different from economy thin-plate welding tables, this Premium upgraded version adopts thickened steel plate, deep nitriding heat treatment, stress-relief annealing, and 5-sided full grid hole design, delivering long-term stable flatness, ultra-high positioning accuracy, and excellent wear resistance.
Equipped with the universal D16 (Φ16mm) 50×50mm grid system, the worktable supports full 3D clamping and positioning on the top surface and four vertical sides. It completely replaces traditional custom welding jigs, drastically improves production efficiency, and reduces tooling costs for small-batch, multi-variety manufacturing.
Technical Specifications
| Item | Premium D16 3D Welding Table Parameter |
|---|---|
| Standard System | D16 Universal 3D Welding System |
| Hole Diameter | Φ16mm (H7 Precision Tolerance) |
| Grid Spacing | 50mm × 50mm Standard Grid |
| Table Flatness | ≤0.1mm / 1000mm |
| Hole Position Accuracy | ±0.05mm |
| Verticality Tolerance | 0.05mm / 200mm |
| Tabletop Thickness | 12mm Premium Thickened Plate |
| Surface Hardness | HV450+ (Deep Nitriding) |
| Standard Load Capacity | 2 Ton (Max Reinforced 5 Ton) |
| Side Panel Height | 150mm (Premium Standard) |
| Material Option 1 | Q355 High-Strength Alloy Steel (Standard) |
| Material Option 2 | HT300 High-Grade Cast Iron (Ultra-Precision Version) |
| Adjustable Leveling Range | ±30mm |
| Processing Technology | 5-axis CNC integrated milling, overall stress relief annealing |
Core Key Features - Premium Upgrade Advantages
- 5-Side Full 3D Fixturing System: Full grid holes on top + four vertical sides, realizing horizontal, vertical, and angled 3D positioning without dead angles. Supports multi-table splicing for oversized workpieces.
- Industrial High Precision: Table flatness ≤0.1mm/1000mm, hole pitch tolerance ±0.05mm, verticality tolerance 0.05mm/200mm. Consistent batch welding accuracy, low rejection rate.
- Deep Nitrided Wear-Resistant Surface: HV450+ hardness anti-wear layer, high-temperature splash resistance, anti-rust, anti-scratch. No paint peeling or corrosion like ordinary painted tables.
- Stress-Relieved Deformation-Proof Structure: Overall annealing stress relief treatment + box-type closed reinforced base. No warping or sinking under long-term heavy load, precision lasts more than 10 years.
- 100% Standard D16 Universal Compatibility: Strict DIN industrial standard, fully compatible with all global D16 modular fixtures, no custom tooling required.
- Humanized Design: Full rounded corner treatment to avoid operator scratches and fixture collision damage.
What's Included - Standard Package Accessories
All accessories adopt D16 universal standard, fully matched and interchangeable:
- Heavy-duty adjustable leveling feet × 4
- Precision cylindrical & diamond positioning pins set
- Standard height gauge support blocks set
- 90° standard right-angle positioning blocks
- Quick clamping & side pushing fixtures
- Lifting rings & full set installation tools
Optional Upgrades: 30°/45°/60° angle fixtures, 360° rotary supports, V-type tube clamps, robotic welding base, splicing connection plates, tool trolley, welding grounding device.
Quality Certification
- ISO9001 Factory Quality Management System Certified
- CE Certification (EN ISO 12100 Mechanical Safety Standard)
- 100% Triple Factory Inspection: Hole position detection + laser flatness scanning + 200% load pressure test
- Complete material report, hardness test report and flatness test report provided
FAQ
Q1: Are your D16 welding tables compatible with other brand D16 fixtures?
A1: Fully compatible. Strictly manufactured according to international DIN standard, 100% interchangeable with all global D16 modular fixturing systems.
Q2: Can the table be spliced for large workpieces?
A2: Yes. Reserved splicing holes and matching connection plates support unlimited multi-table combination for ultra-long and ultra-wide workpieces.
Q3: Is the table resistant to welding spatter and rust?
A3: Premium deep nitriding process forms internal hardened layer, not just surface paint. It is high-temperature resistant, anti-spatter, anti-rust and anti-scratch, far more durable than ordinary painted tables.
Q4: Can you customize size and logo?
A4: Full customization is supported, including custom length, width, side height, material, surface hardness, laser brand logo and export packaging.
Get Your Premium D16 3D Welding Table System Today
Looking for a high-precision, durable, and cost-effective 3D welding workbench to upgrade your fabrication workflow? Our Premium D16 3D Welding Table System delivers stable precision, strong load capacity, and full modular flexibility for all your welding and fixturing needs.
Whether you need standard-size stock products or fully customized solutions tailored to your production requirements, we offer professional one-stop service.
Contact us now to get a free quote, detailed product catalog, and technical support!
