50mm Standard Grid D16 3D Welding Table CNC Ultra Flat Machined Surface
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D16
Document
Grid System:
50×50mm Standard Square Grid
Position Hole Type:
D16, Φ16mm H7 Precision Hole
Hole Position Tolerance:
±0.05 Mm
Table Flatness:
Repeat Positioning Accuracy
Tabletop Thickness:
12mm
Surface Roughness:
Ra1.6 ~ Ra3.2 μm
Optional Raw Material:
HT300 High-strength Gray Cast Iron / Q355 Low Alloy Steel
Warranty Period:
2 Years For Table Body, 1 Year For Matched Accessories
Highlight:
50mm 3D welding table with D16 grid
,CNC ultra flat welding table
,Standard grid welding table machined surface
Product Description
50mm Standard Grid D16 3D Welding Table CNC Ultra Flat Machined Surface

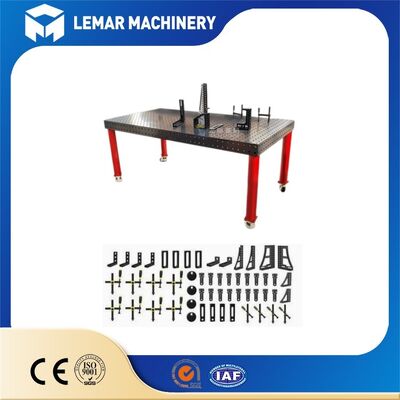

The 50mm Standard Grid D16 3D Welding Table is a high-precision modular flexible welding platform designed for precision sheet metal, robotic welding, prototype fabrication, and small-to-medium structural assembly. Featuring a CNC ultra-flat fully machined surface and universal 50×50mm D16 hole grid system, this 3D welding table delivers consistent flatness, zero-deformation benchmark performance, and full 360° multi-angle clamping capability.Unlike ordinary 2D welding benches with rough cutting surfaces and unstable precision, our D16 3D welding table adopts stress relief treatment + gantry CNC full milling + precision grinding process. The entire tabletop and five-sided holes maintain high tolerance, enabling fast jig assembly, high-precision batch welding, and perfect compatibility with global standard D16 modular fixtures.
Standard Size Specifications
D16 50mm Grid 3D Welding Table - Standard Size Chart (Customizable)
| No. | Table Dimension (L×W mm) | Table Height (mm) | Grid System | Hole Spec |
|---|---|---|---|---|
| 01 | 1000 × 500 | 150 | 50×50mm Standard Grid | D16 (Φ16mm H7) |
| 02 | 1000 × 800 | 150 | 50×50mm Standard Grid | D16 (Φ16mm H7) |
| 03 | 1000 × 1000 | 150 | 50×50mm Standard Grid | D16 (Φ16mm H7) |
| 04 | 1200 × 800 | 150 | 50×50mm Standard Grid | D16 (Φ16mm H7) |
| 05 | 1200 × 1200 | 150 | 50×50mm Standard Grid | D16 (Φ16mm H7) |
| 06 | 1500 × 1000 | 150 | 50×50mm Standard Grid | D16 (Φ16mm H7) |
| 07 | 2000 × 1000 | 150 | 50×50mm Standard Grid | D16 (Φ16mm H7) |
CNC Machining Process
Comprehensive precision machining process ensures long-term dimensional stability and high flatness:
- Base material undergoes high-temperature stress-relief aging (constant temperature of 550-620°C for over 2 hours) to eliminate internal stresses from casting or steel plate welding, preventing warping or deformation during long-term use.
- Large-scale gantry CNC machining center performs integral rough milling of all holes, sidewalls, and reference surfaces.
- Dual-stage ultra-precision surface grinding achieves a surface roughness of Ra 1.6-3.2 μm.
- Finished products undergo CMM inspection for flatness and perpendicularity, with a precision inspection report issued.
Precision specifications:
- Tabletop flatness: Precision grade ≤0.1 mm/m²; high-end, high-precision models achieve ≤0.05 mm/m².
- Perpendicularity (sidewall to tabletop): ≤0.05 mm/200 mm.
- Repeat positioning accuracy: ±0.02-0.05 mm; highly consistent dimensions for batch production.
Unique Advantages
- Double hole density, allowing for multi-point support and positioning of small workpieces, thin plates, and irregularly shaped parts, eliminating dead angles in clamping.
- Suitable for thin materials and precision small parts, with dense clamping points effectively suppressing welding heat deformation.
- The entire tooling system is lightweight, with smaller fixtures and support blocks, resulting in lower costs than the D28 heavy-duty system table.
- Flexible assembly of small tooling systems, enabling rapid prototyping and changeover for new products, eliminating the need for customized welding jigs.
Packaging
Our D16 50mm 3D welding tables are packed in IPPC fumigated export wooden cases. Multi-layer internal protection including plastic film, high-density foam and hole plugs safeguards the CNC ultra-flat machined surface from scratches, impact and rust. All matched fixtures are separately packed in tool bags fixed inside the box. Built-in bottom skids support easy forklift handling. Waterproof sealing and standard shipping marks are equipped for long sea & land transportation. Vacuum anti-rust packaging and separate fixture boxes are available as optional upgrades. Each size has stable net/gross weight for accurate freight calculation.
Want more details or quotation for the 50mm Standard Grid D16 3D Welding Table CNC Ultra Flat Machined Surface? Drop your inquiry below!
We provide custom dimension service, matching modular clamps and reliable export packaging solutions for global manufacturers. Contact us to get exclusive factory pricing today.
